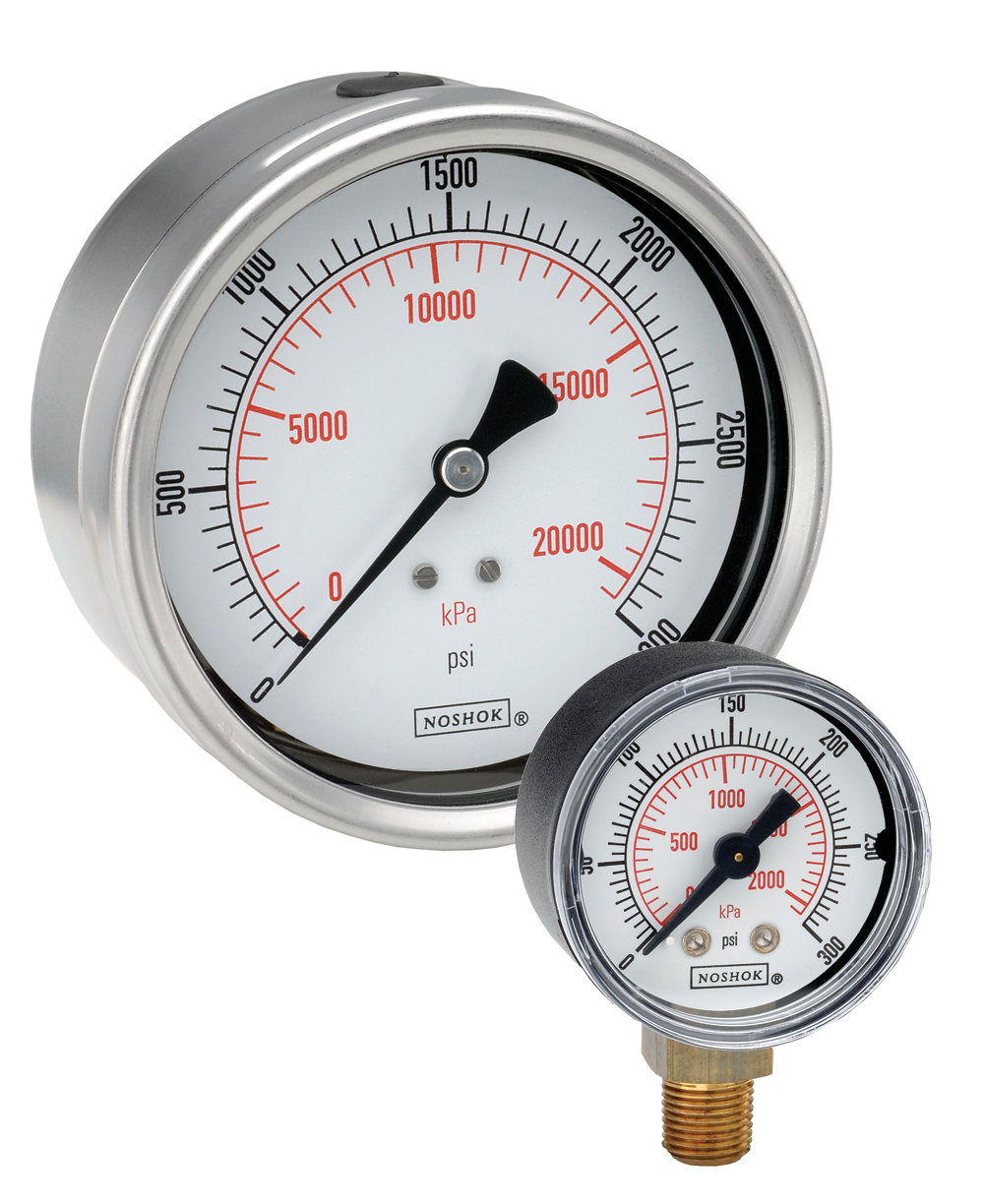

100 Series Standard Gauges
|
|
|
|
Product Specifications Gauge Dimensions Accuracy/Standard Dial Configuration Diaphragm Seals Options & Accessories Technical Manual Reference Information Standard Item Part Numbers
|
Features & Benefits
- High quality dry gauges for reliable service on applications not corrosive to brass
- Vacuum and compound through 15,000 psi
- 1-1/2, 2, 2-1/2, 4 inch sizes – bottom, back, left and right side connections
- Dry, ABS case (steel, chrome or Stainless steel optional)
- All brass or brass with Delrin® internals
- Panel Mount Clamp and Front Flange mounting
- Standard UV resistant dials are dual scale in psi and kPa (kilopascals); dual scale psi/bar and psi/kg/cm² are available in most popular ranges
- Stock availability
Applications
- Hydraulics
- Pneumatics
- Petrochemical
- Medical
- Food
- Pharmaceutical
- Most industrial and commercial applications
Operating Specifications
- Working Pressure Limitations
- Dynamic Pressure
The working pressure should be limited to
60% of the dial range. - Static Pressure
The working pressure, where no sharp fluctuations occur,
should be limited to 90% of the dial range - Ambient Temperature
0°F to 140°F (-18°C to 60°C) - Media Temperature
-4°F to 140°F (-20°C to 60°C
