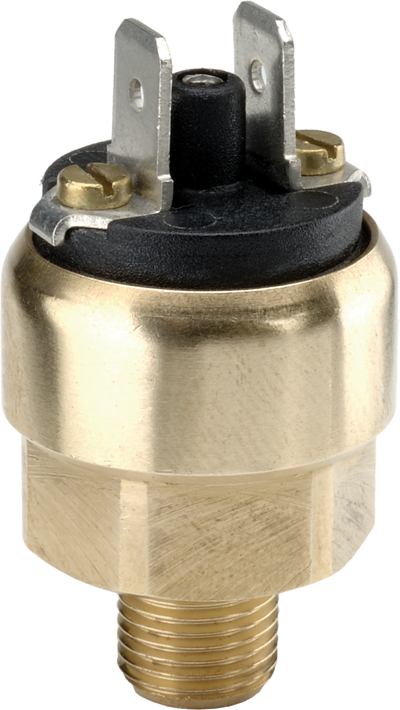

100 Series Miniature, Low Pressure Mechanical Switch
Features & Benefits
- Rugged one-piece machined housing provides maximum durability
- Compact size allows installation where space is limited
- Ranges available from 5 psi to 150 psi in either normally open or normally closed contacts
- External adjustment screw for ease of setting the switching point on-site
- Utilizes a proven diaphragm type sensing element to provide excellent accuracy
- Special versions are available with alternate diaphragm, housing and contact materials to meet most requirements
- Cost-effective
Applications
- Hydraulic systems
- Industrial machinery or machine tools
- Pumps and compressors
