200 Series Low Pressure Diaphragm Gauges
Accuracy/Standard Dial Configuration
- 2.5 Inch 200 Series Gauges: ±1.5% Accuracy - PDF Version
- 4 Inch 200 Series Gauges: ±1.0% Accuracy - PDF Version
| Single Scale inH2O |
Figure Interval | Graduation Interval | Gauge Size | Dial Image |
| -15 inH2O to 0 inH2O |
-3 inH2O |
-0.2 inH2O |
2.5" and 4" |  |
| -30 inH2O to 0 inH2O |
-5 inH2O |
-0.5 inH2O |
2.5" and 4" |  |
| -60 inH2O to 0 inH2O |
-10 inH2O |
-1 inH2O |
2.5" and 4" |  |
| -100 inH2O to 0 inH2O |
-20 inH2O |
-2 inH2O |
2.5" and 4" |  |
| 0 inH2O to 10 inH2O |
2 inH2O |
0.2 inH2O |
2.5" and 4" |  |
| 0 inH2O to 15 inH2O |
3 inH2O |
0.2 inH2O |
2.5" and 4" |  |
| 0 inH2O to 30 inH2O |
5 inH2O |
0.5 inH2O |
2.5" and 4" |  |
| 0 inH2O to 60 inH2O |
10 inH2O |
1 inH2O |
2.5" and 4" |  |
| 0 inH2O to 100 inH2O |
20 inH2O |
2 inH2O |
2.5" and 4" |  |
| 0 inH2O to 160 inH2O |
40 inH2O |
4 inH2O |
2.5" and 4" |  |
| 0 inH2O to 200 inH2O |
40 inH2O |
4 inH2O |
2.5" and 4" |  |
| Single Scale oz/in² |
Figure Interval | Graduation Interval | Gauge Size | Dial Image |
| 0 oz/in² to 10 oz/in² |
2 oz/in² |
0.2 oz/in² |
2.5" and 4" |  |
| 0 oz/in² to 15 oz/in² |
3 oz/in² |
0.2 oz/in² |
2.5" and 4" |  |
| 0 oz/in² to 30 oz/in² |
5 oz/in² |
0.5 oz/in² |
2.5" and 4" |  |
| 0 oz/in² to 35 oz/in² |
5 oz/in² |
0.5 oz/in² |
2.5" and 4" |  |
| 0 oz/in² to 60 oz/in² |
5 oz/in² |
0.5 oz/in² |
2.5" and 4" |  |
| 0 oz/in² to 100 oz/in² |
20 oz/in² |
2 oz/in² |
2.5" and 4" |  |
| 0 oz/in² to 160 oz/in² |
40 oz/in² |
4 oz/in² |
2.5" and 4" |  |
| Outer Scale oz/in² Inner Scale inH2O |
Figure Interval | Graduation Interval | Gauge Size | Dial Image |
| 0 oz/in² to 20 oz/in² 0 inH2O to 35 inH2O |
4 oz/in² 10 inH2O |
0.4 oz/in² 1 inH2O |
2.5" and 4" |  |

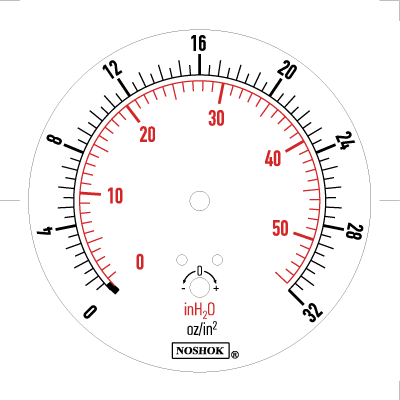

| 0 oz/in² to 32 oz/in² 0 inH2O to 55 inH2O |
4 oz/in² 10 inH2O |
0.5 oz/in² 1 inH2O |
2.5" and 4" |  |
| Single Scale psi |
Figure Interval | Graduation Interval | Gauge Size | Dial Image |
| 0 psi to 3 psi |
0.5 psi |
0.05 psi |
2.5" and 4" |  |
| 0 psi to 5 psi |
1 psi |
0.1 psi |
2.5" and 4" |  |
| 0 psi to 10 psi |
2 psi |
0.2 psi |
2.5" and 4" |  |
