Home > Mechanical Pressure Switches
> 300 Series Compact SPDT Mechanical Switch With Adjustable Hysteresis
300 Series Compact SPDT Mechanical Switch
300 Series Compact SPDT Mechanical Switch
With Adjustable Hysteresis
Features & Benefits
- Ranges available from 3 psig to 30 psig through 450 psig to 4600 psig
- Rugged zinc plated steel housing and process connection
- Proven diaphragm or piston type sensing technology provides excellent reliability, repeatability, and affordability
- Micro switch contacts are silver plated for extended service life and exceptional dependability

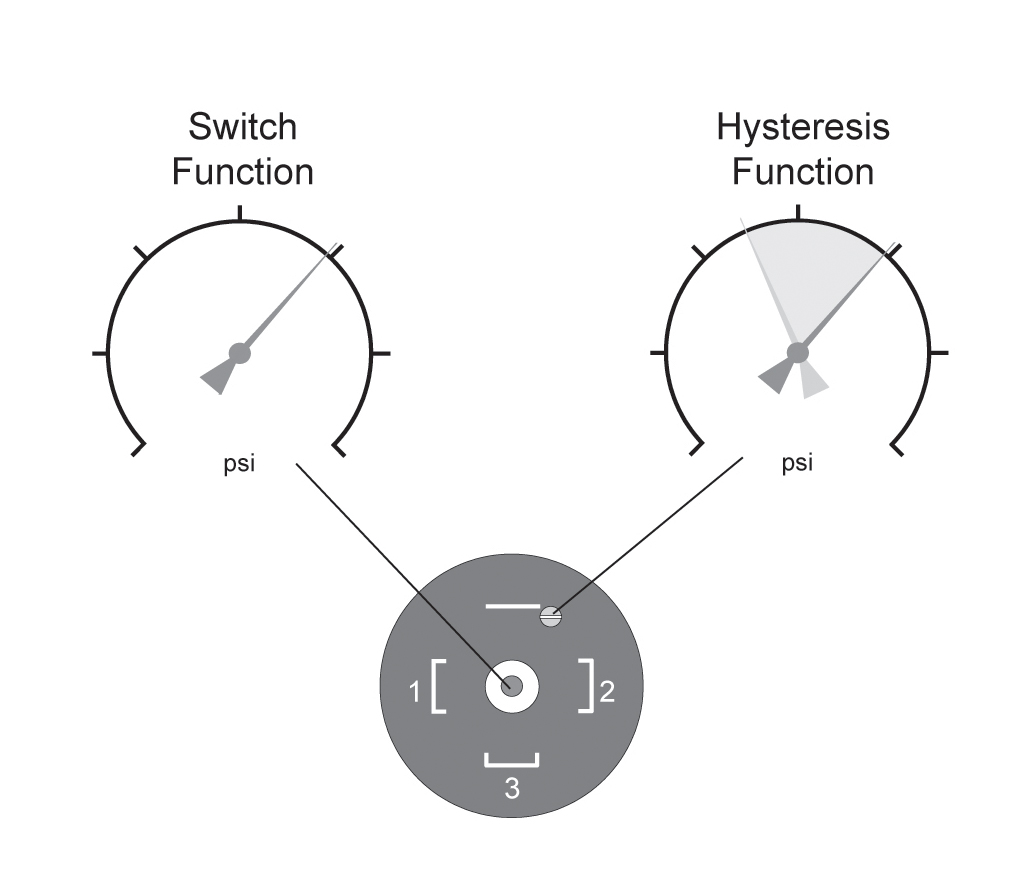

- Switching functions are field adjustable while under pressure
- SPDT single changeover contact configuration
- Hirschmann electrical connection
- RoHS compliant
Applications
- Hydraulic systems
- Industrial machinery or machine tools
- Stamping and forming presses
- Pumps and compressors
