400/500 Series All Stainless Steel Gauges
Product Specifications

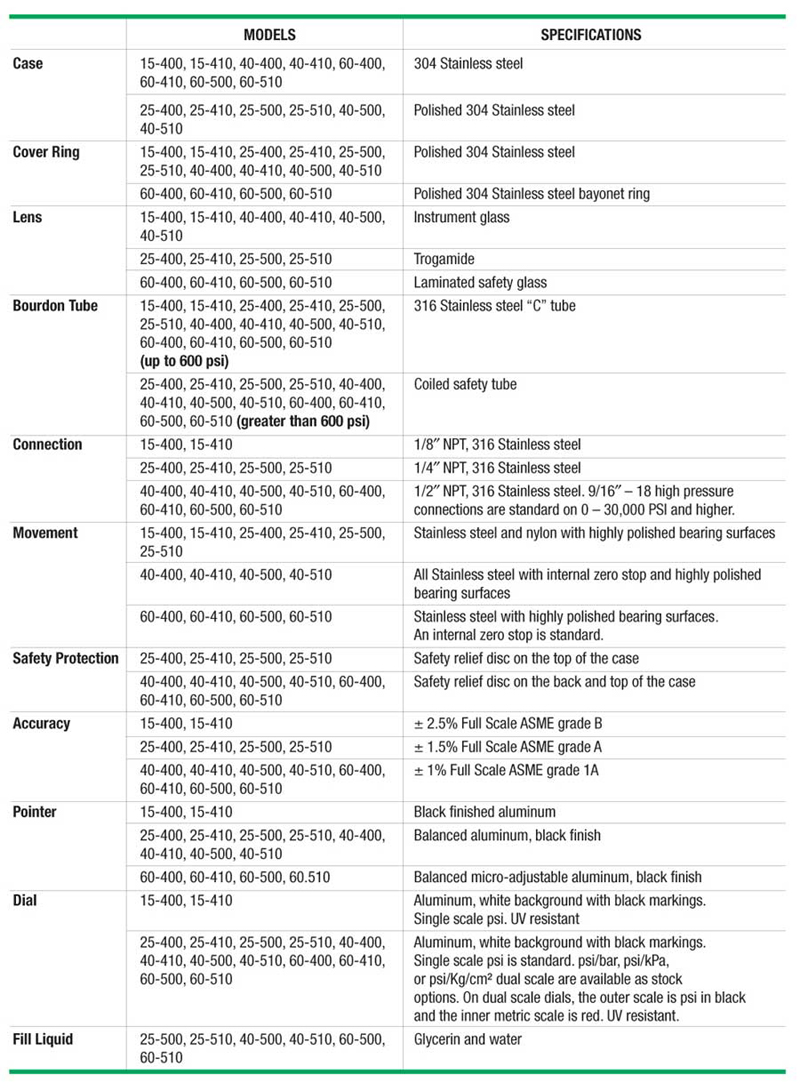

| MODELS | SPECIFICATIONS | |
| Case | 15-400, 15-410, 40-400, 40-410, 60-400, 60-410, 60-500, 60-510 | 304 Stainless steel |
| 25-400, 25-410, 25-500, 25-510, 40-500, 40-510 | Polished 304 Stainless steel | |
| Cover Ring | 15-400, 15-410, 25-400, 25-410, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510 | Polished 304 Stainless steel |
| 60-400, 60-410, 60-500, 60-510 | Polished 304 Stainless steel bayonet ring | |
| Lens | 15-400, 15-4 10, 40-400, 40-410, 40-500, 40-510 | Instrument glass |
| 25-400, 25-410, 25-500, 25-510 | Trogamide | |
| 60-400, 60-410, 60-500, 60-510 | Laminated safety glass | |
| Bourdon Tube | 15-400, 15-410, 25-400, 25-410, 25-500,
25-510, 40-400, 40-410, 40-500, 40-510,
60-400, 60-410, 60-500, 60-510 (up to 600 psi) |
316 Stainless steel "C" tube |
| 25-400, 25-4 10, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510 (greater than 600 psi) | Coiled safety tube | |
| Connection | 15-400, 15-410 | 1/8" NPT, 316 Stainless steel |
| 25-400, 25-410, 25-500, 25-510 | 1/4" NPT, 316 Stainless steel | |
| 40-400, 40-410, 40-500, 40-510, 60-400, 60-410,60-500, 60-510 | 1/2" NPT, 316 Stainless steel. 9/16" - 18 high pressure connections are standard on 0 - 30 ,000 PSI and higher. | |
| Movement | 15-400, 15-410, 25-400, 25-410, 25-500, 25-510 | Stainless steel and nylon with highly polished bearing surfaces |
| 40-400, 40-410, 40-500, 40-510 | All Stainless steel with internal zero stop and highly polished bearing surfaces | |
| 60-400, 60-410, 60-500, 60-510 | Stainless steel with highly polished bearing surfaces. An internal zero stop is standard. | |
| Safety Protection | 25-400, 25-410, 25-500, 25-510 | Safety relief disc on the top of the case |
| 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510 | Safety relief disc on the back and top of the case | |
| Accuracy | 15-400, 15-410 | ± 2.5% Full Scale ASME grade B |
| 25-400, 25-410, 25-500, 25-510 | ±1.5% Full Scale ASME grade A | |
| 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510 | ± 1% Full Scale ASME grade 1A | |
| Pointer | 15-400, 15-410 | Black finished aluminum |
| 25-400, 25-4 10, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510 | Balanced aluminum, black finish | |
| 60-400, 60-410, 60-500, 60-510 | Balanced micro-adjustable aluminum, black finish | |
| Dial | 15-400, 15-410 | Aluminum, white background with black markings. Single scale psi. UV resistant |
| 25-400, 25-410, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510 | Aluminum, white background with black markings. Single scale psi is standard. psi/bar, psi/kPa, or psi/Kg/cm² dual scale are available as stock options. On dual scale dials, the outer scale is psi in black and the inner metric scale is red. UV resistant. | |
| Fill Liquid | 25-500, 25-510, 40-500, 40-510, 60-500, 60-510 | Glycerin and water |
