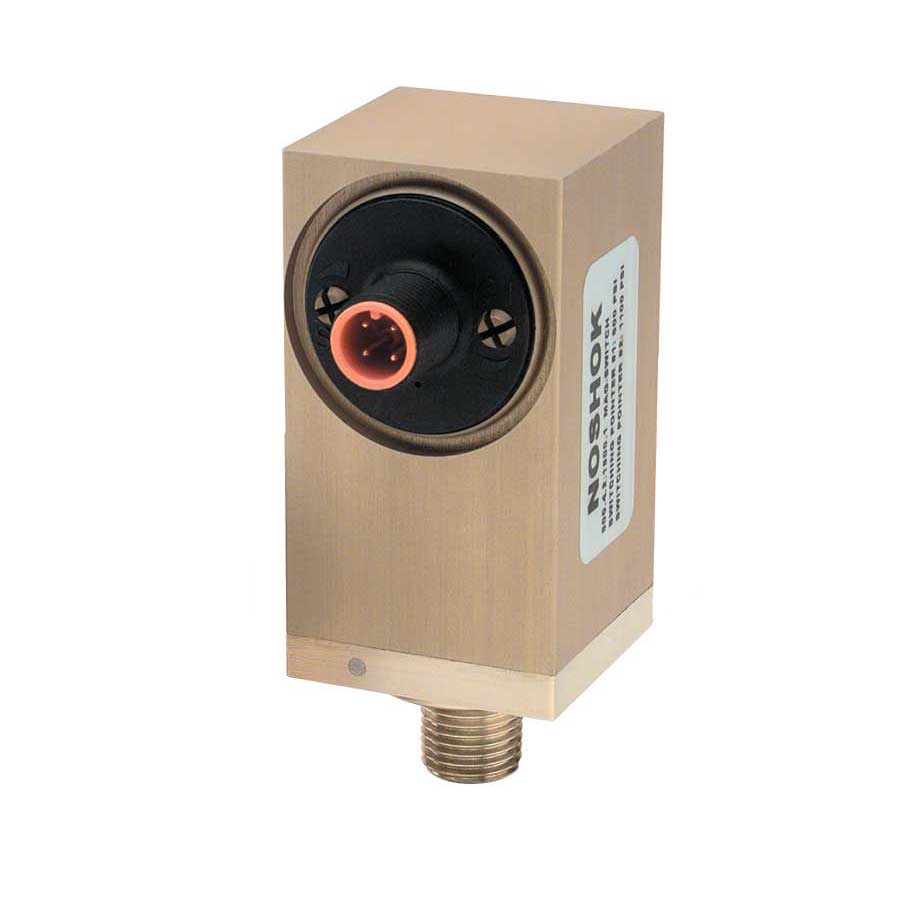

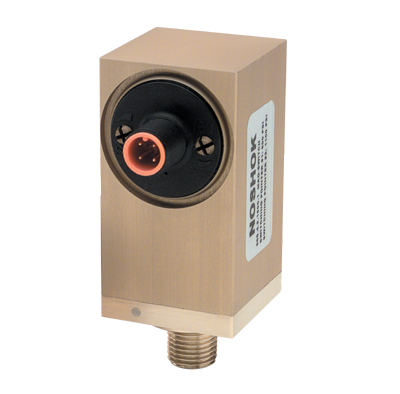

500 Series Mag-Switch
|
|
||
|

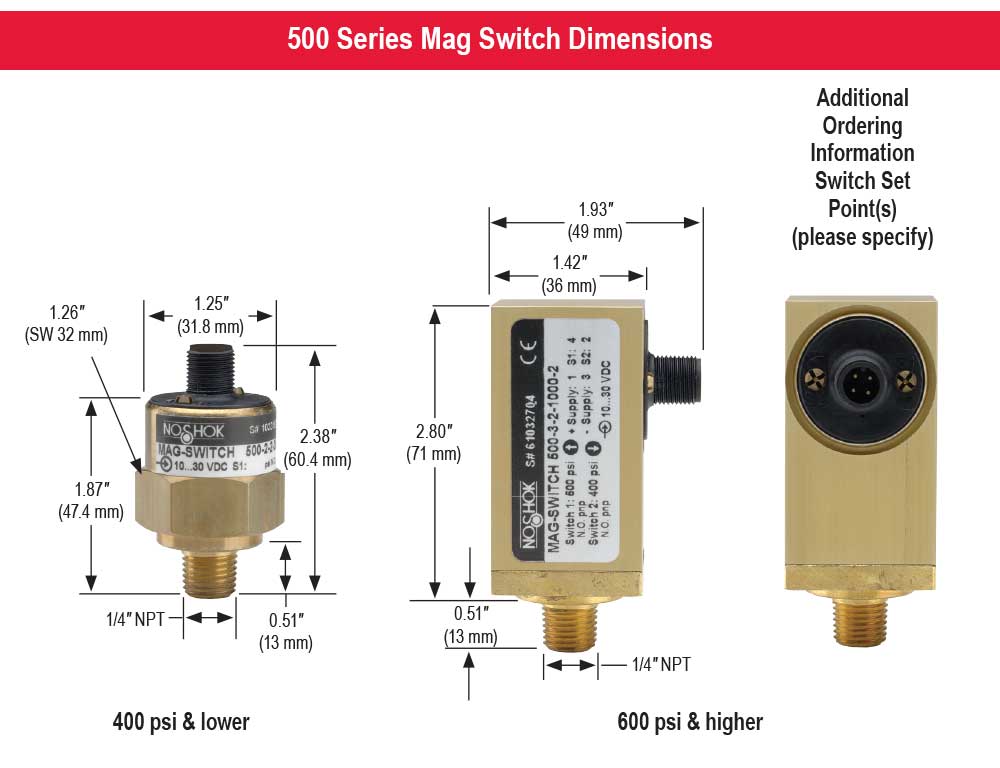

Product Specifications Dimensions Diaphragm Seals Technical Manual Reference Information Standard Item Part Numbers
|
|
|
Features & Benefits
- Ranges available from -30 inHg vacuum through 15,000 psi
- Semi-conductor switching relays(no mechanical contacts)
- Proven diaphragm pressure sensing technology, Hall Effect magnetic field sensing technology & semi-conductor switching technology provide excellent reliability, accuracy, repeatability, and affordability
- Suitable for direct connection to PLC's
- Integrated LED switching indication
- Normally open (N.O.) or normally closed (N.C.) switching functions
- Single or dual switch set point functions of either PNP (positive) output or NPN (negative) output
- Switch points are field adjustable with a range of 10-100% of full scale value
- Standard electrical connection is a 4-pin M12 x 1 threaded connector
- CE compliant to suppress RFI, EMI, and ESD
Applications
- Hydraulic and pneumatic systems
- Industrial machinery and machine tools
- Stamping and forming presses
- Pumps and compressors
- Laboratory and test equipment
- HVAC systems
- Medical
- Refrigeration equipment
- Transportation equipment
