Type 10H & 10H1
Type 10H & 10H1
Elevated Pressure Clamped Style Replaceable Diaphragm Seal

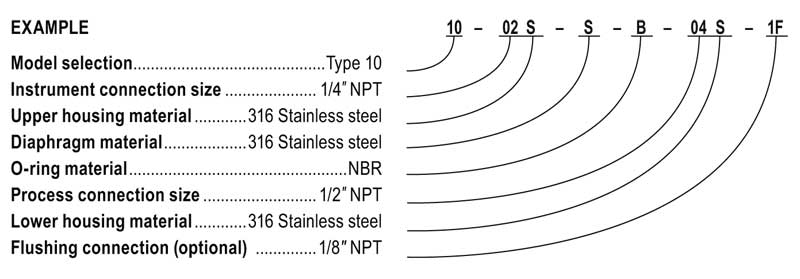

Features & Benefits
- Designed for high pressure applications
- Rated from 5,000 psi through 10,000 psi
- Displacement capability of 0.05 cubic inches
- Utilizes a replaceable diaphragm clamped between the flanged metal housings with an o-ring seal to create a leak-free union
- Process connection sizes from 1/4 inch NPT through 1-1/2 inch NPT
- Consider gauge size, pressure range, media composition, ambient and operating temperature, and maximum working pressure when selecting
- For process temperatures over 212° F a capillary or cooling element is recommended, contact factory to order
- Fill fluid must be compatible with process media; i.e. Glycerine may become volatile in conjunction with a strong oxidizing agent such as chlorine, forms of oxygen or peroxide and nitric acids
