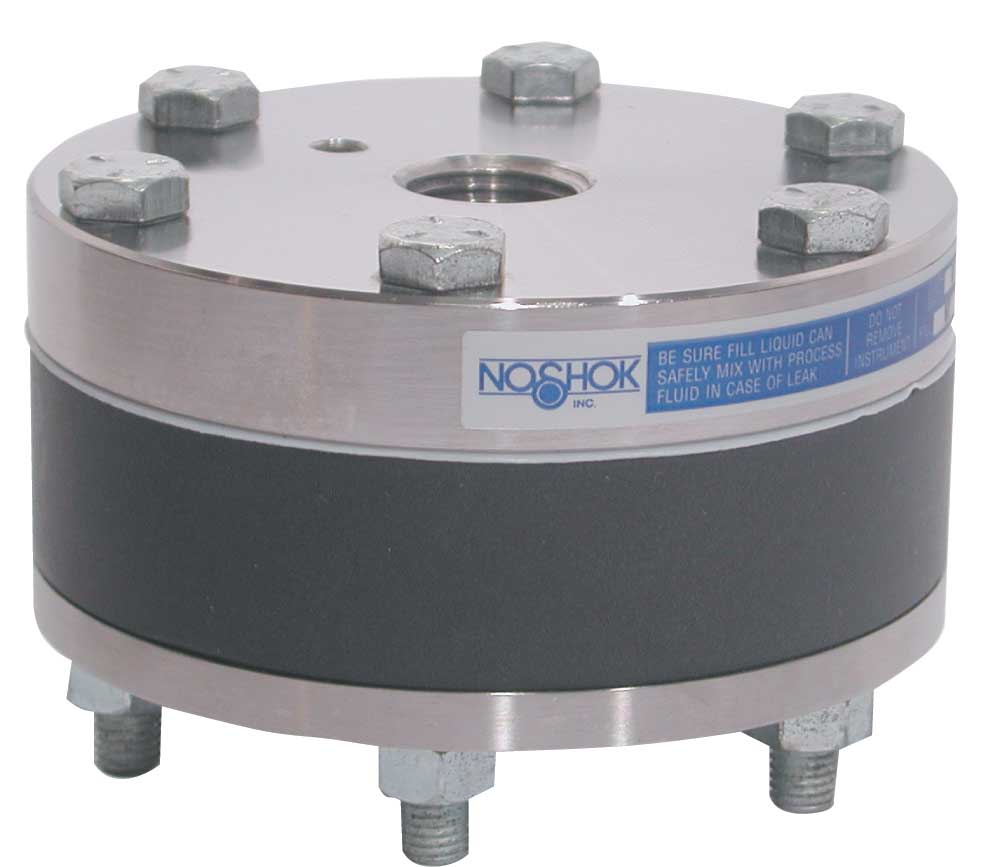

Type 10L Reduced Pressure, Non-Metallic Lower, Bolted, Replaceable Diaphragm Seals





  • Intended for corrosive or viscous pressure media
  • Designed for applications where typical metallic lower housings cannot
    withstand process media
  • Can be used for remote mounting of pressure instrument(s) with capillary
  • Utilizes a replaceable diaphragm clamped between the flanged housings
    with an o-ring seal to create a leak-free union
  • Process connection sizes from 1/4" NPT through 1-1/2" NPT
  • Consider instrument size, pressure range, media composition, ambient and
    operating temperature, and maximum working pressure when selecting
  • Fill fluid must be compatible with process media; i.e. Glycerin may
    become volatile in conjunction with a strong oxidizing agent such as
    chlorine, forms of oxygen or peroxide and nitric acids
Tech Manual

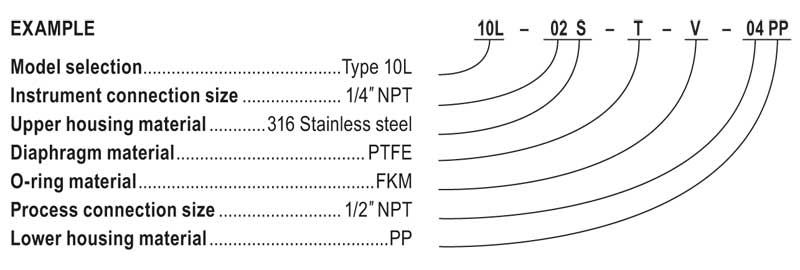

ORDERING INFORMATION

TYPE 10L
INSTRUMENT CONNECTION SIZES 02 1/4" NPT 04 1/2" NPT
UPPER HOUSING MATERIALS C Carbon steel S 316 Stainless steel
DIAPHRAGM MATERIALS A Tantalum N Inconel 600 U Titanium grade 4
H Hastelloy C-276 S 316 Stainless steel1 V FKM2
M Monel 400 T PTFE3
O-RING MATERIALS B NBR T PTFE V FKM
PROCESS CONNECTION SIZES 02 1/4" NPT 06 3/4" NPT 10 1-1/4" NPT
04 1/2" NPT 08 1" NPT 12 1-1/2" NPT
  (ASME and DIN flanges available upon request)
LOWER HOUSING MATERIALS KN PVDF PV PVC TG PTFE (Glass filled)
PP PP TC PTFE (Carbon filled)

    Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

    1 NBR o-rings standard with 316SS diaphragm
    2 FKM o-rings standard with FKM diaphragm
    3 PTFE o-rings standard with all other diaphragms
