1200 Series Membrane Type High Static Pressure Differential Gauges



3 year warranty



  • Rugged, high working static pressure dry or liquid-filled gauge
  • Ranges from 0 inH2O to 100 inH2O through 0 psid to 600 psid
  • 4-1/2" and 6" gauge sizes
  • Standard black anodized aluminum case
  • 316 stainless steel wetted parts
Dimensions Tech Manuals Options Print Catalog Page

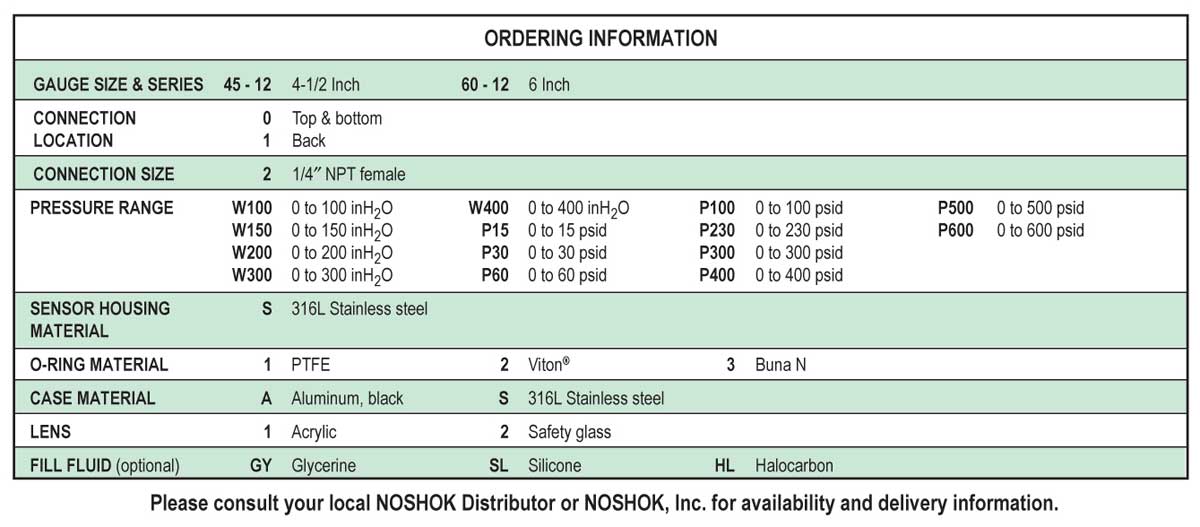

ORDERING INFORMATION

GAUGE SIZES & SERIES 45 - 12 4-1/2" 60 - 12 6"
CONNECTION LOCATIONS 0 Top & bottom 1 Back
CONNECTION SIZE 2 1/4" NPT female
PRESSURE RANGES W100 0 to 100 inH2O W400 0 to 400 inH2O P100 0 to 100 psid P500 0 to 500 psid
W150 0 to 150 inH2O P15 0 to 15 inH2O P230 0 to 230 psid P600 0 to 600 psid
W200 0 to 200 inH2O P30 0 to 30 psid P300 0 to 300 psid
W300 0 to 300 inH2O P60 0 to 60 psid P400 0 to 400 psid
SENSOR HOUSING MATERIAL S 316L Stainless steel
O-RING MATERIAL 1 PTFE
CASE MATERIALS A Aluminum, black S 316L Stainless steel
LENSES 1 Polycarbonate 2 Safety glass
FILL FLUIDS (OPTIONAL) GY Glycerin SL Silicone HL Halocarbon®

   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
