1 YEAR WARRANTY - DRY
3 YEAR WARRANTY - LIQUID FILLED
Printable PDF
1200 Series Membrane Type High Static Differential Pressure Gauges
Product Specifications

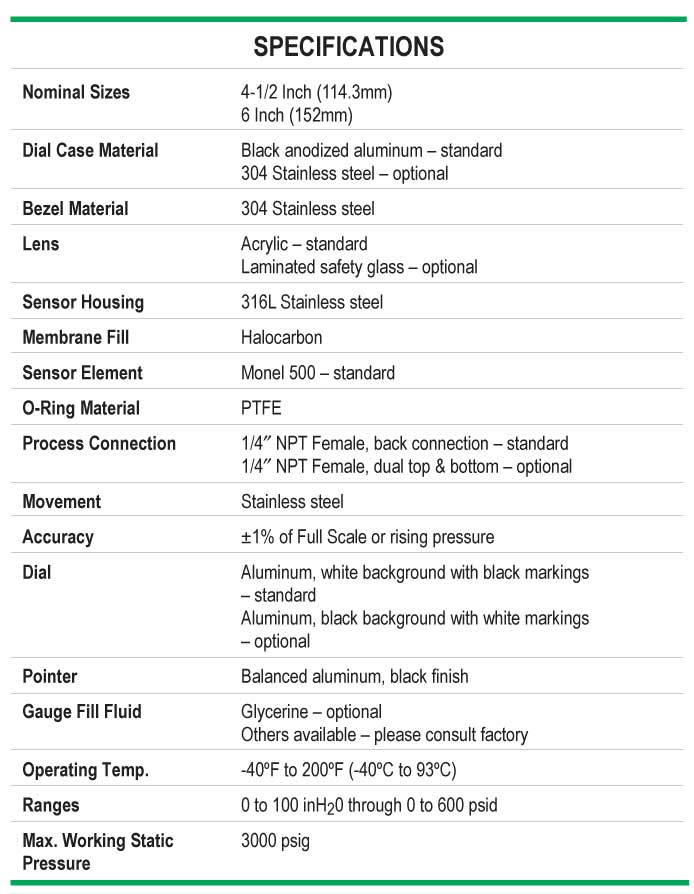

Click here to enlarge the chart
| SPECIFICATIONS | |
| Nominal Sizes | 4½ Inch (114.3 mm) 6 Inch (152 mm) |
| Dial Case Material | Balck anodized aluminum - standard 304 Stainless steel - optional |
| Bezel Material | 304 Stainless steel |
| Lens | Acrylic - standard Laminated safety glass - optional |
| Sensor Housing | 316L Stainless steel |
| Membrane Fill | Halocarbon |
| Sensor Element | Monel 500 - standard |
| O-Ring Material | PTFE |
| Process Connection | 1/4" NPT Female, back connection - standard 1/4" NPT Female, dual top & bottom - optional |
| Movement | Stainless steel |
| Accuracy | ± 1% of Full Scale or rising pressure |
| Dial | Aluminum, white background with black markings - standard Aluminum, black background with thite markings - optional |
| Pointer | Balanced aluminum, black finish |
| Gauge Fill Fluid | Glycerine - optional Others available - please consult factory |
| Operating Temperature | -40°F to 200°F (-40°C to 93°C) |
| Ranges | 0 to 100 inH20 through 0 to 600 psid |
| Max. Working Static Pressure | 3000 psig |
