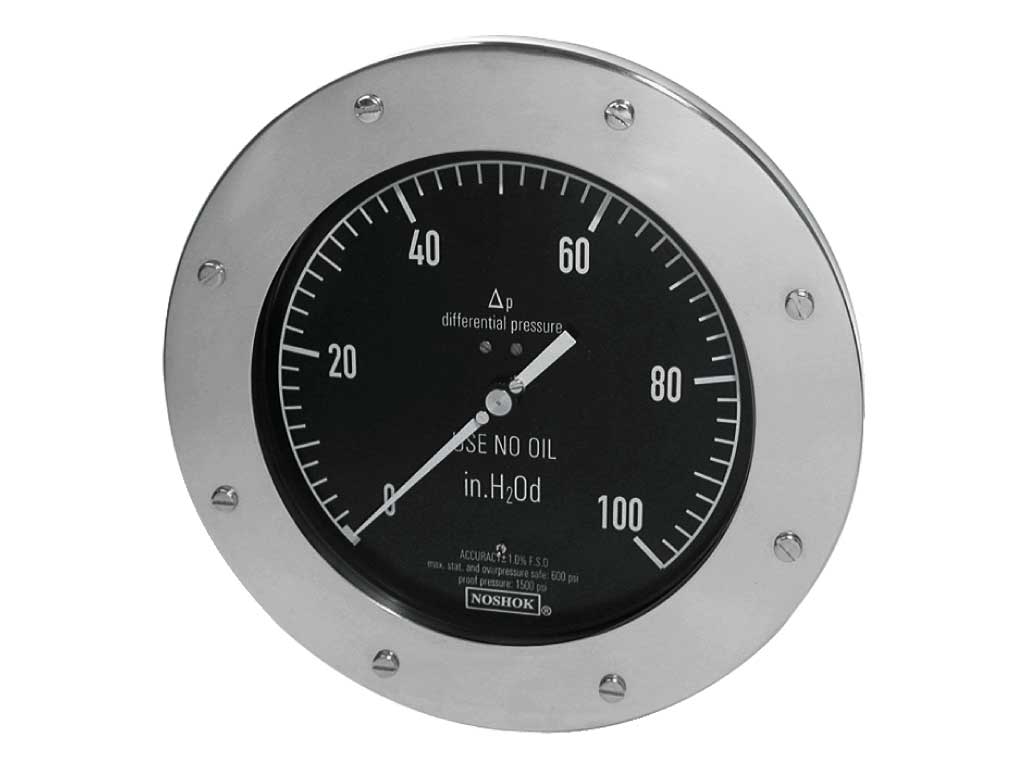

1300 Series Membrane Type Nominal Static Pressure Differential Gauges


3 year warranty

  • Rugged, moderate working static pressure dry or liquid-filled gauge
  • Ranges from 0 inH2O to 100 inH2O through 0 psid to 400 psid
  • 4-1/2" and 6" gauge sizes
  • Standard black anodized aluminum case
  • 316 stainless steel wetted parts
Dimensions Tech Manuals Options Print Catalog Page

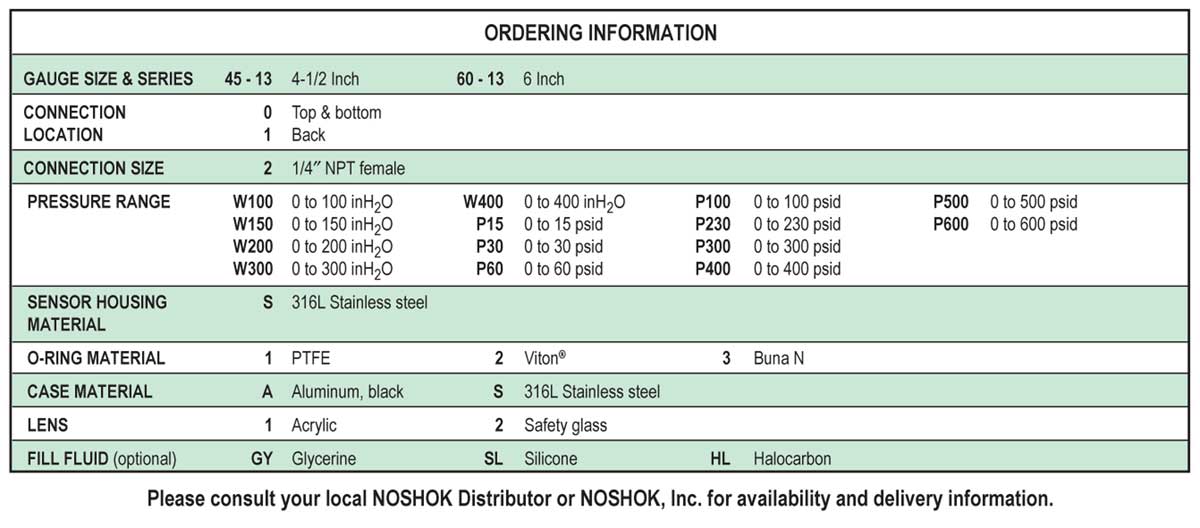

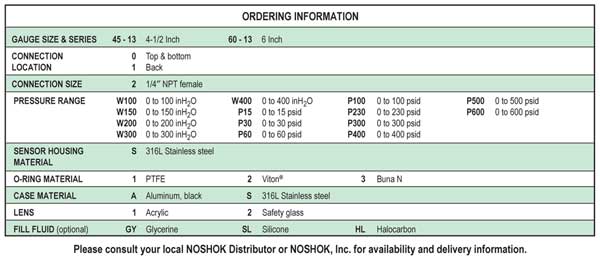

ORDERING INFORMATION

GAUGE SIZES & SERIES 45 - 13 4-1/2" 60 - 13 6"
CONNECTION LOCATIONS 0 Top & bottom
  1 Back
CONNECTION SIZE 2 1/4" NPT female
PRESSURE RANGES W100 0 inH2O to 100 inH2O W400 0 to 400 inH2O P100 0 psid to 100 psid
W150 0 inH2O to 150 inH2O P15 0 psid to 15 psid P230 0 psid to 230 psid
W200 0 inH2O to 200 inH2O P30 0 psid to 30 psid P300 0 psid to 300 psid
W300 0 inH2O to 300 inH2O P60 0 psid to 60 psid P400 0 psid to 400 psid
SENSOR HOUSING MATERIAL S 316L Stainless steel
O-RING MATERIAL 1 PTFE 2 FKM 3 NBR
CASE MATERIALS A Aluminum, black S 316L Stainless steel
LENSES 1 Polycarbonate 2 Safety glass
FILL FLUIDS (optional) GY Glycerin SL Silicone HL Halocarbon®

   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
