100 Series Gauges Dimensions

1.5 Inch Dial

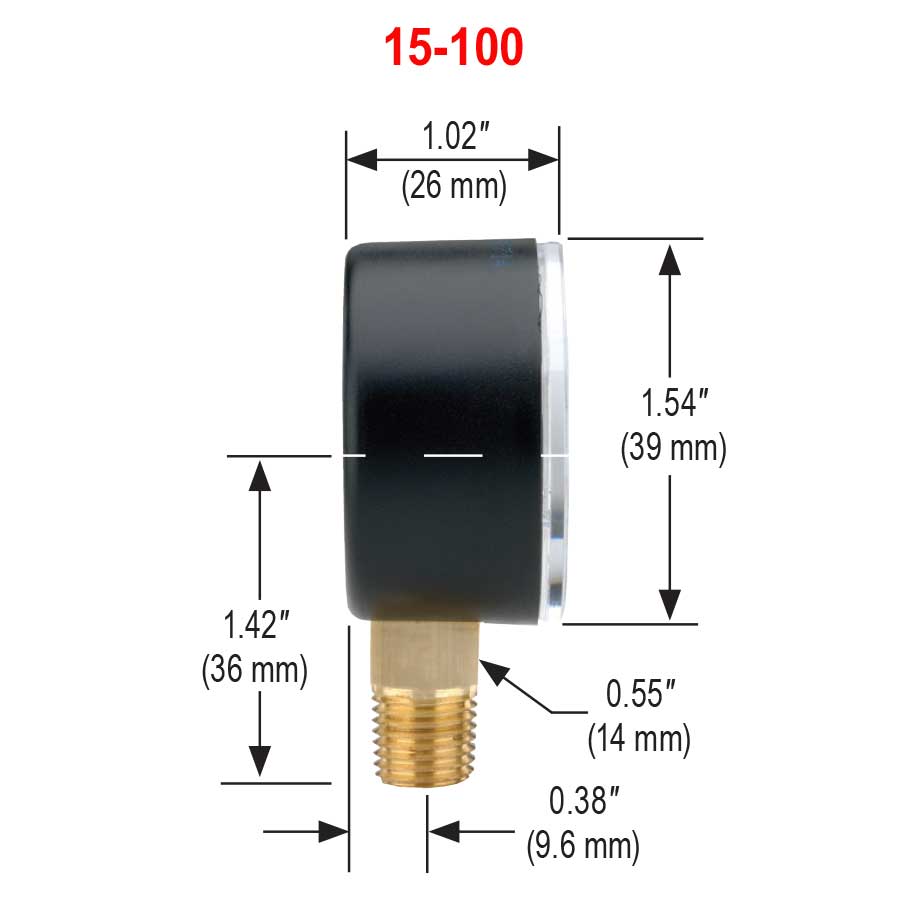

• 15-100

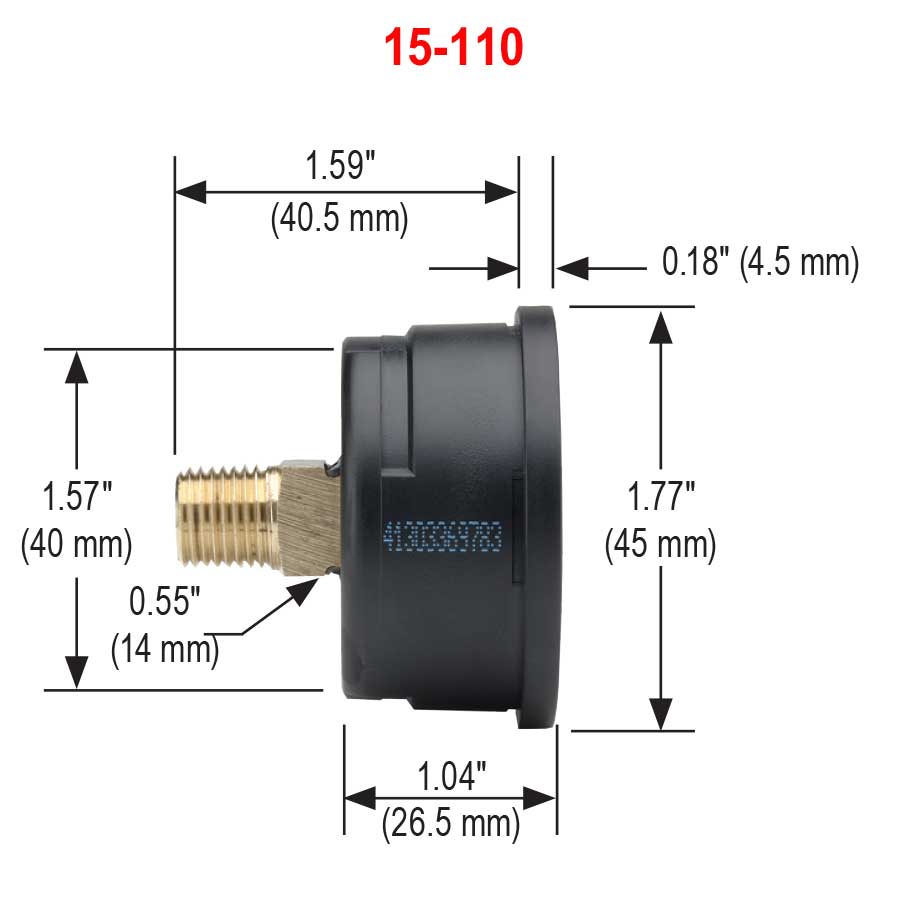

• 15-110

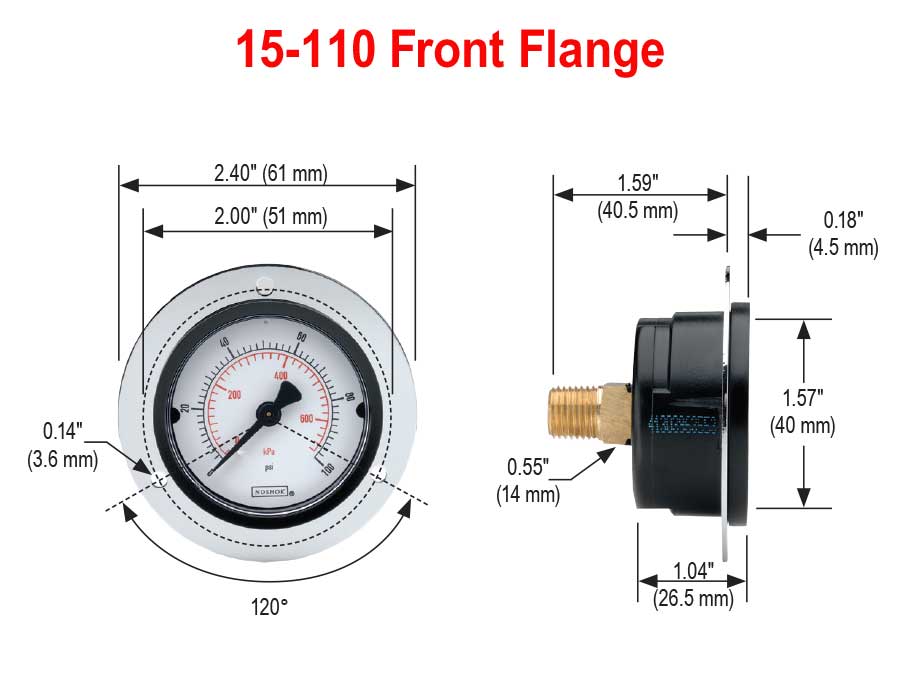

• 15-110 with Front Flange

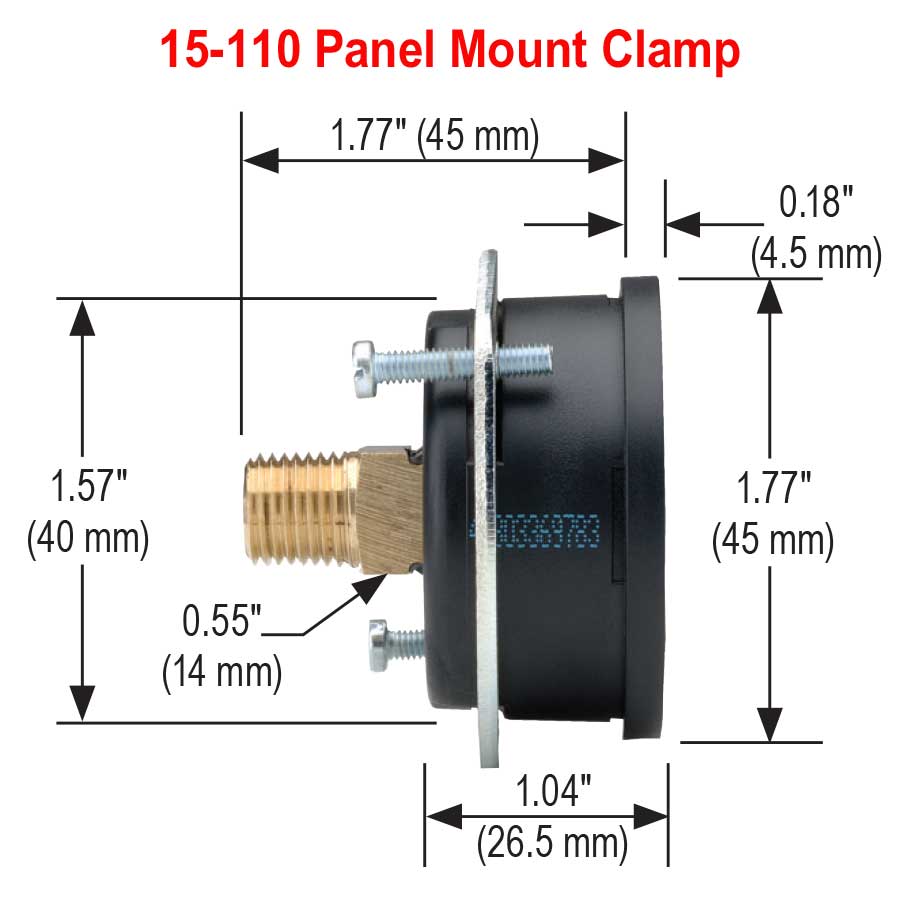

• 15-110 with Panel Mount

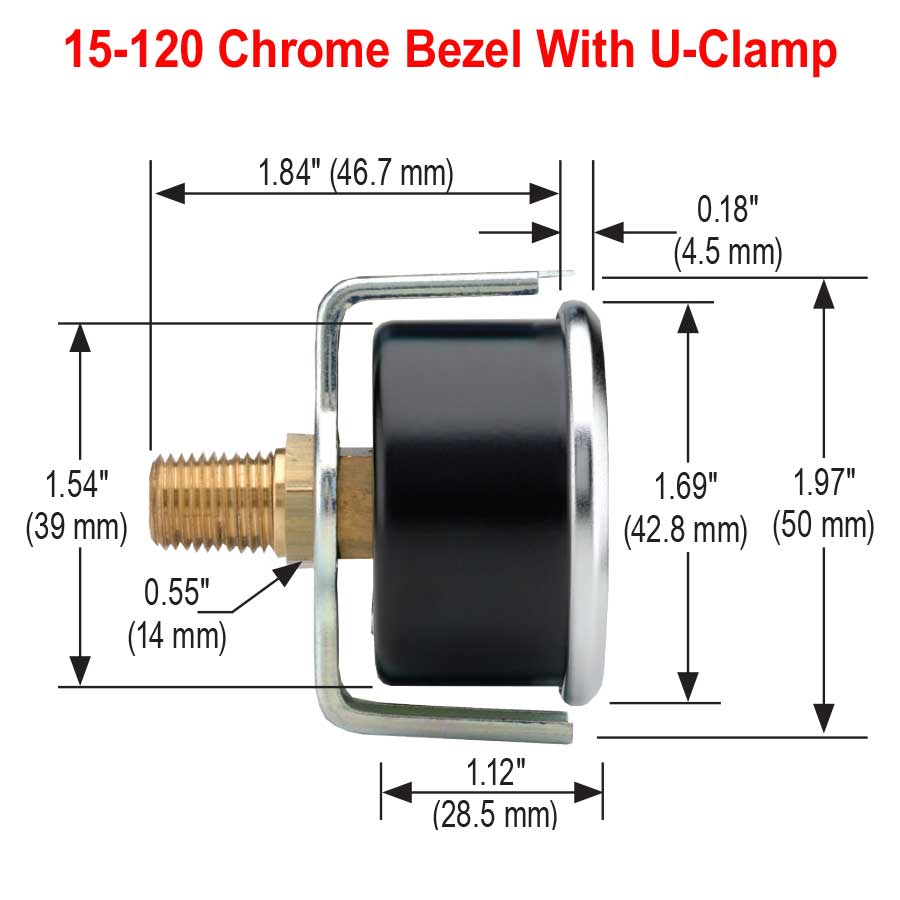

• 15-120 with U-Clamp

2 Inch Dial

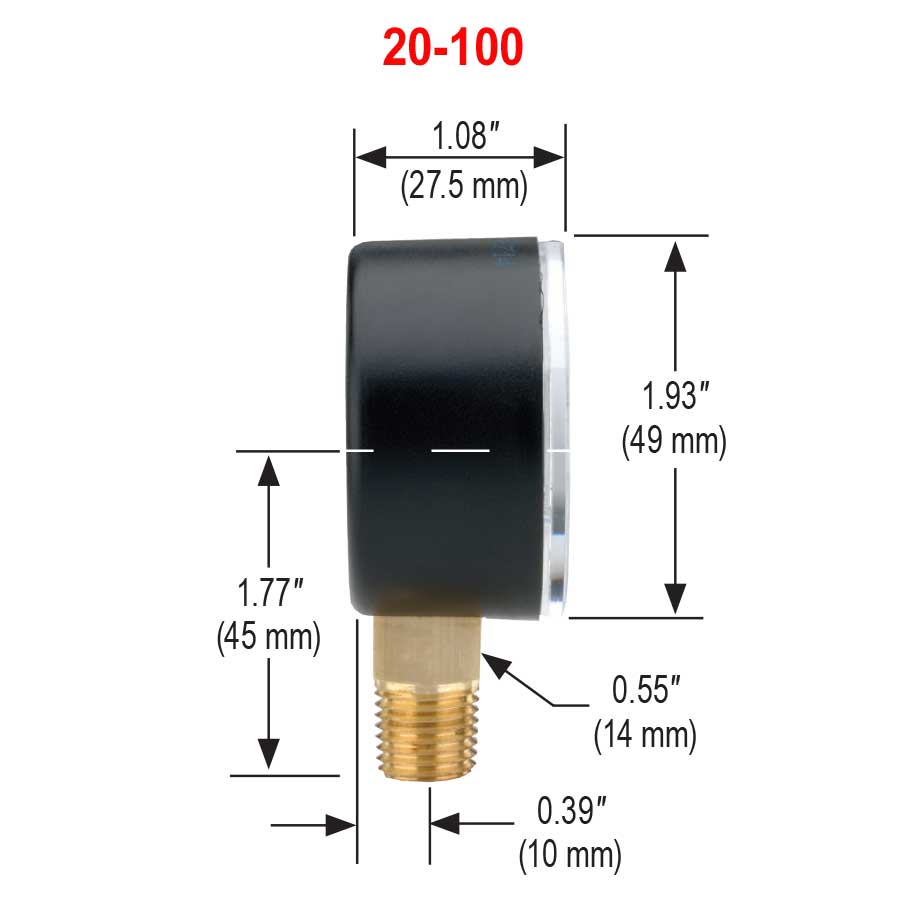

• 20-100
• 20-110

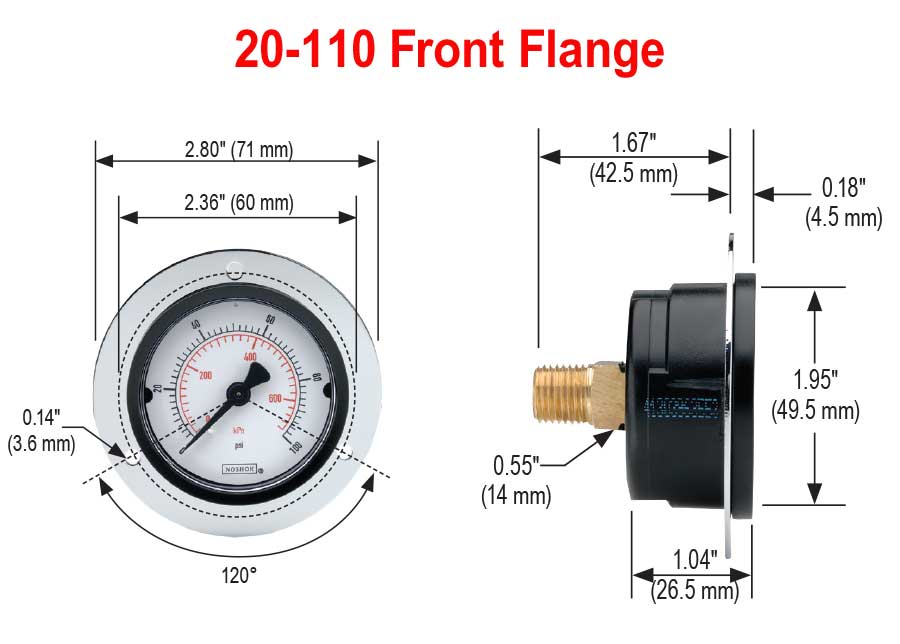

• 20-110 with Front Flange

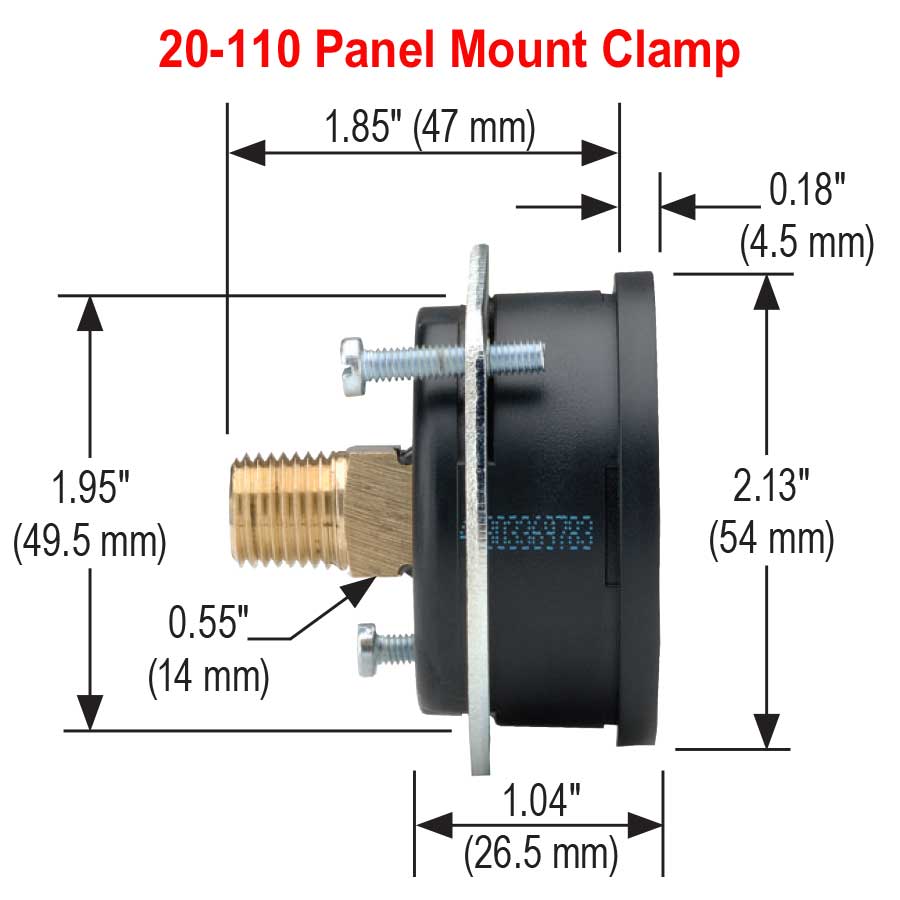

• 20-110 with Panel Mount

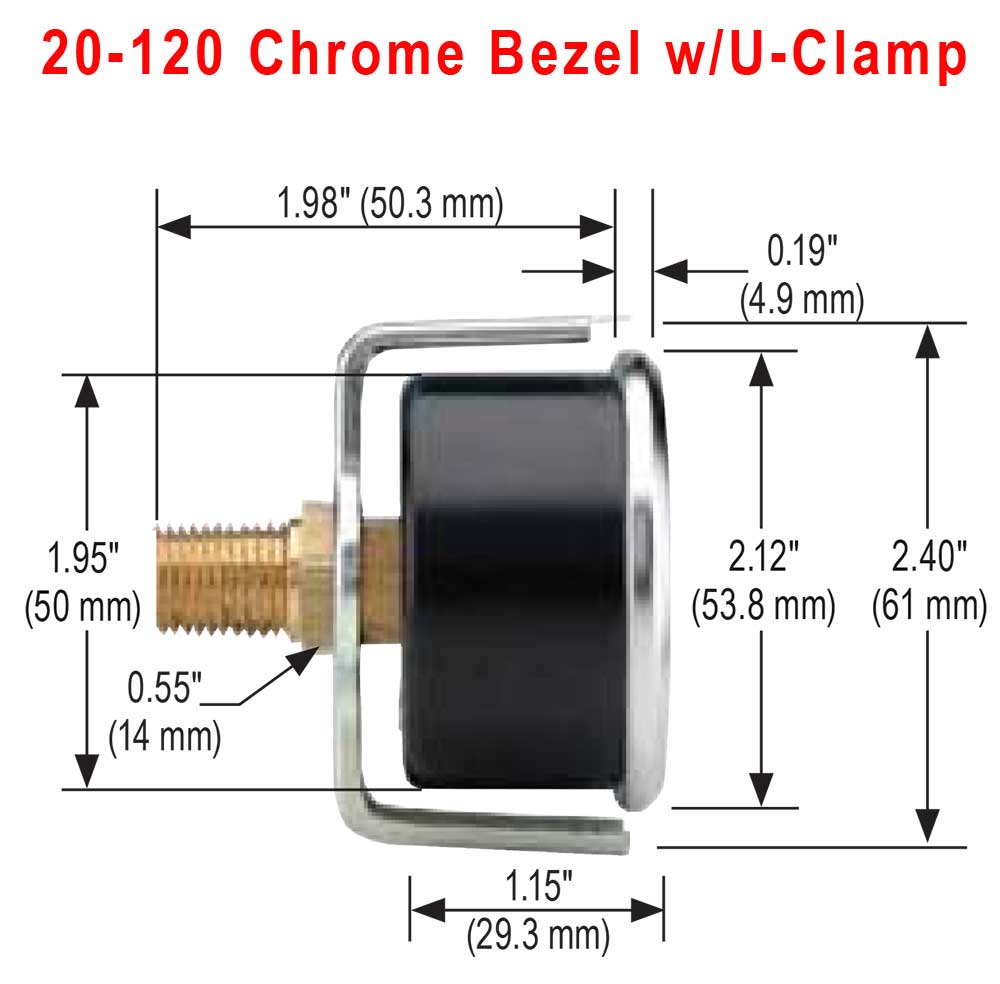

• 20-120 with U-Clamp

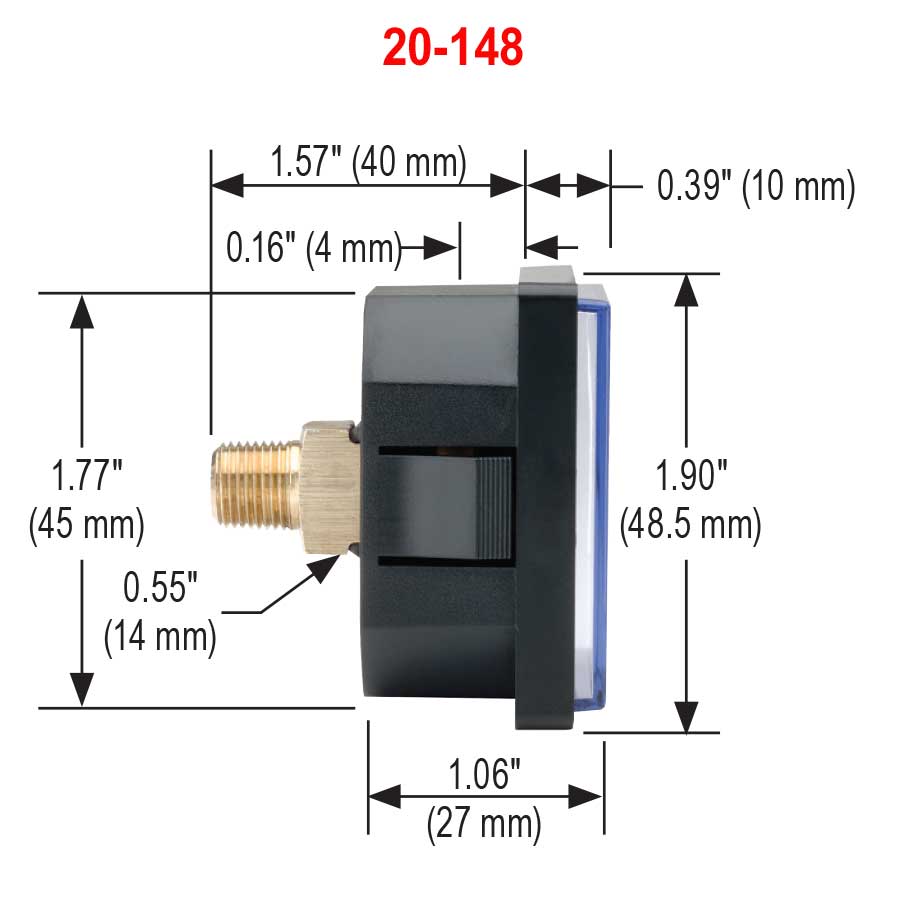

• 20-148

2.5 Inch Dial

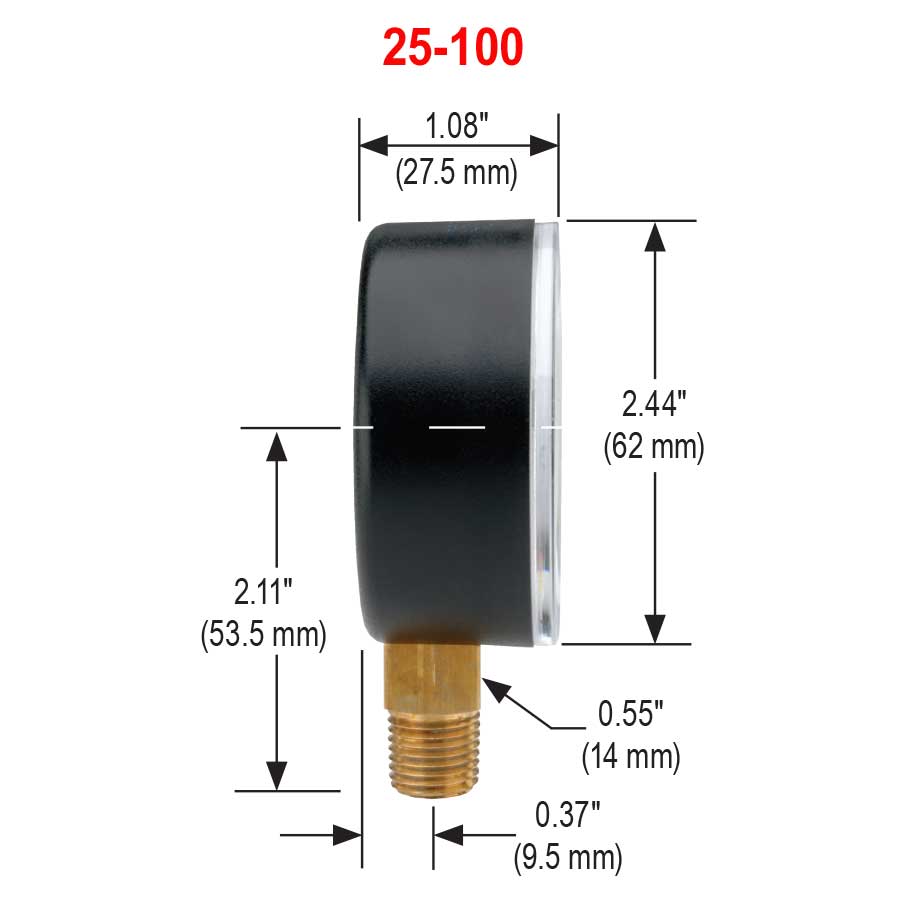

• 25-100

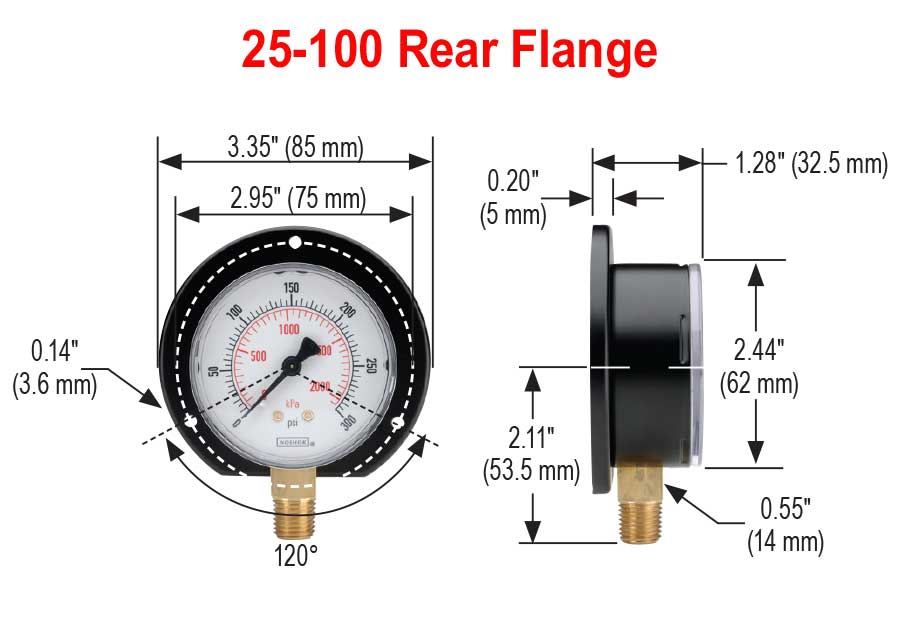

• 25-100 with Rear Flange

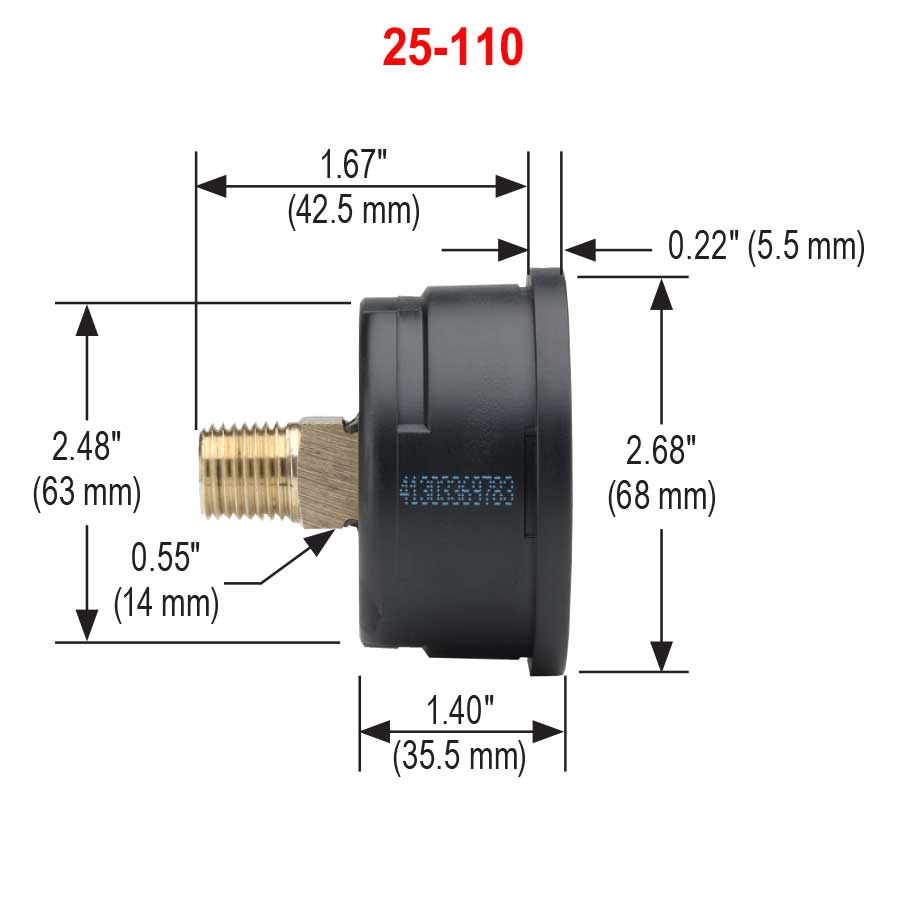

• 25-110

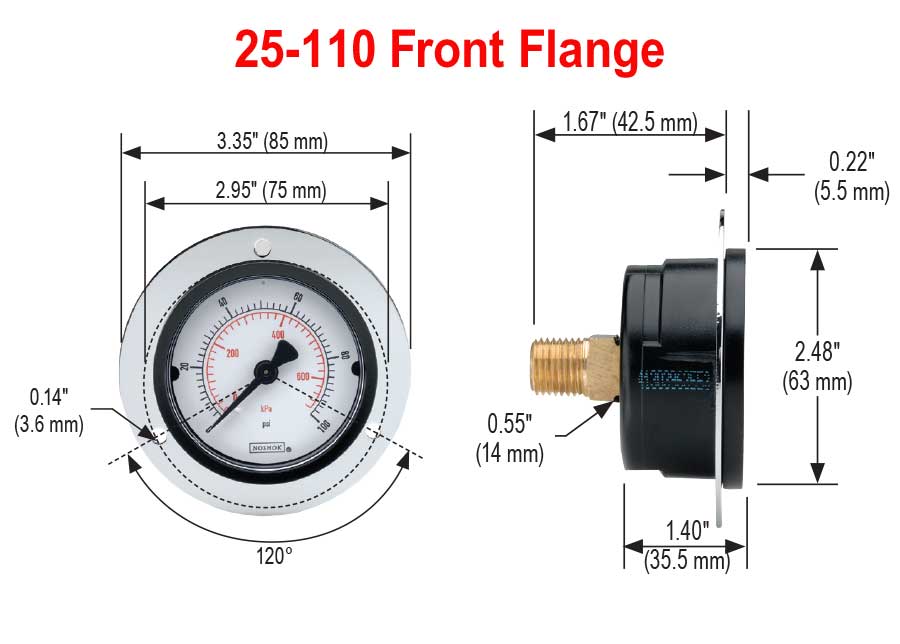

• 25-110 with Front Flange

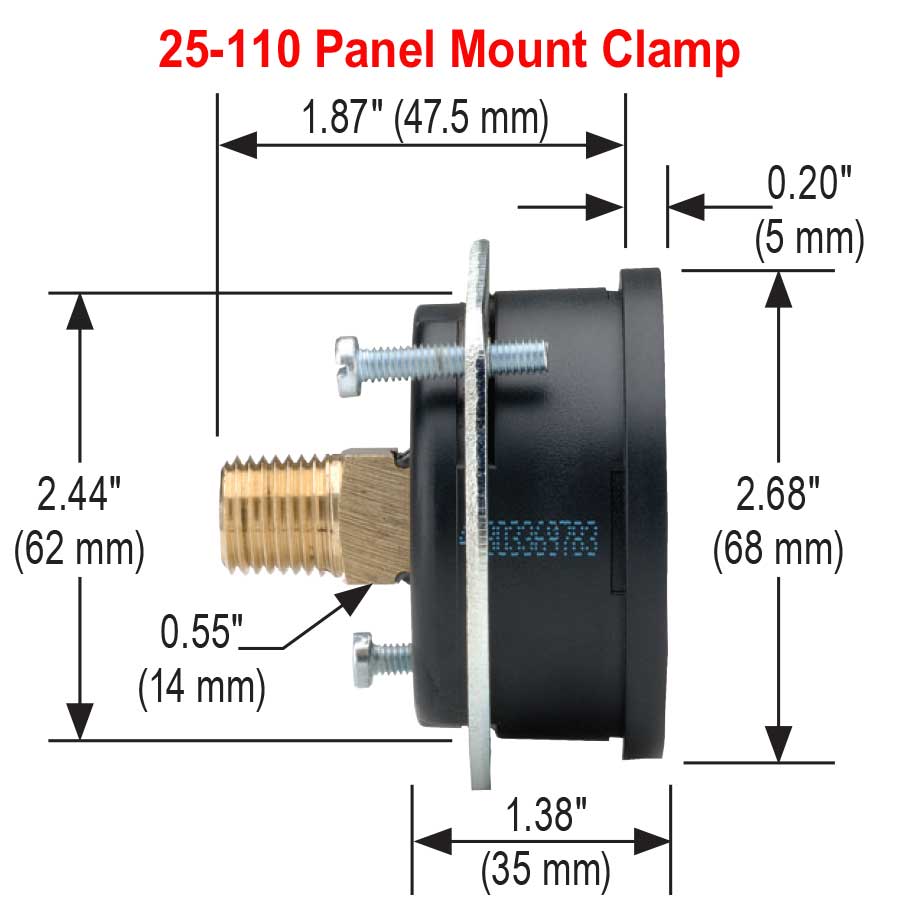

• 25-110 with Panel Mount

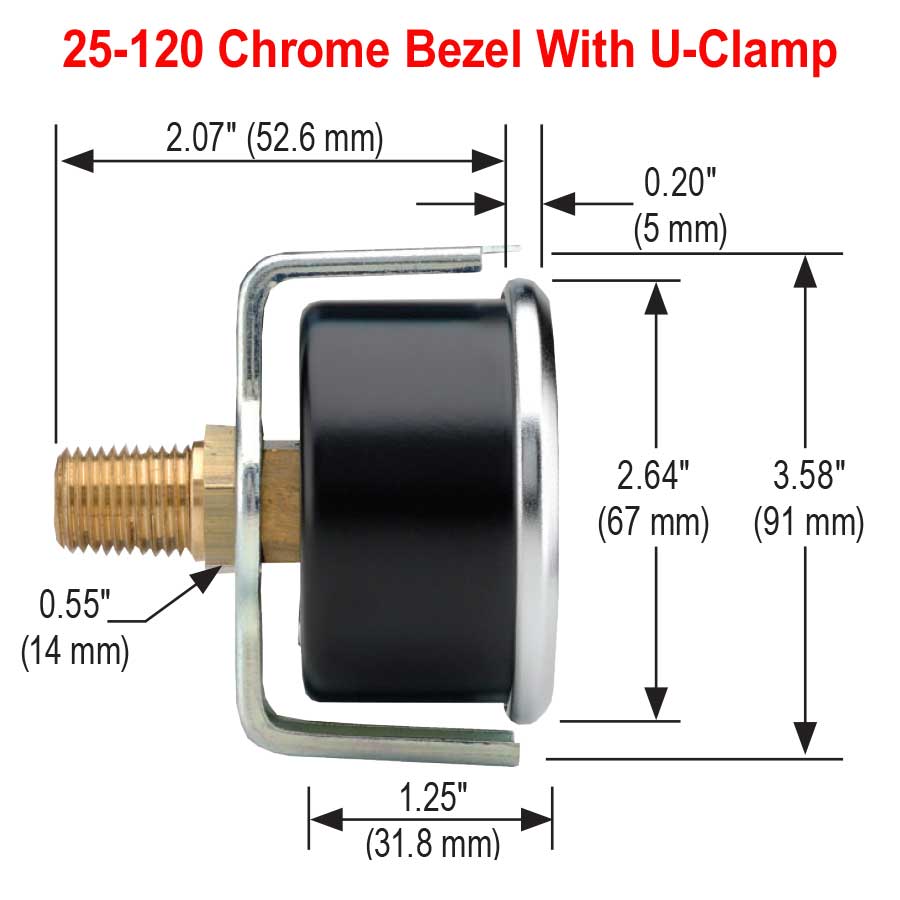

• 25-120 with U-Clamp

4 Inch Dial

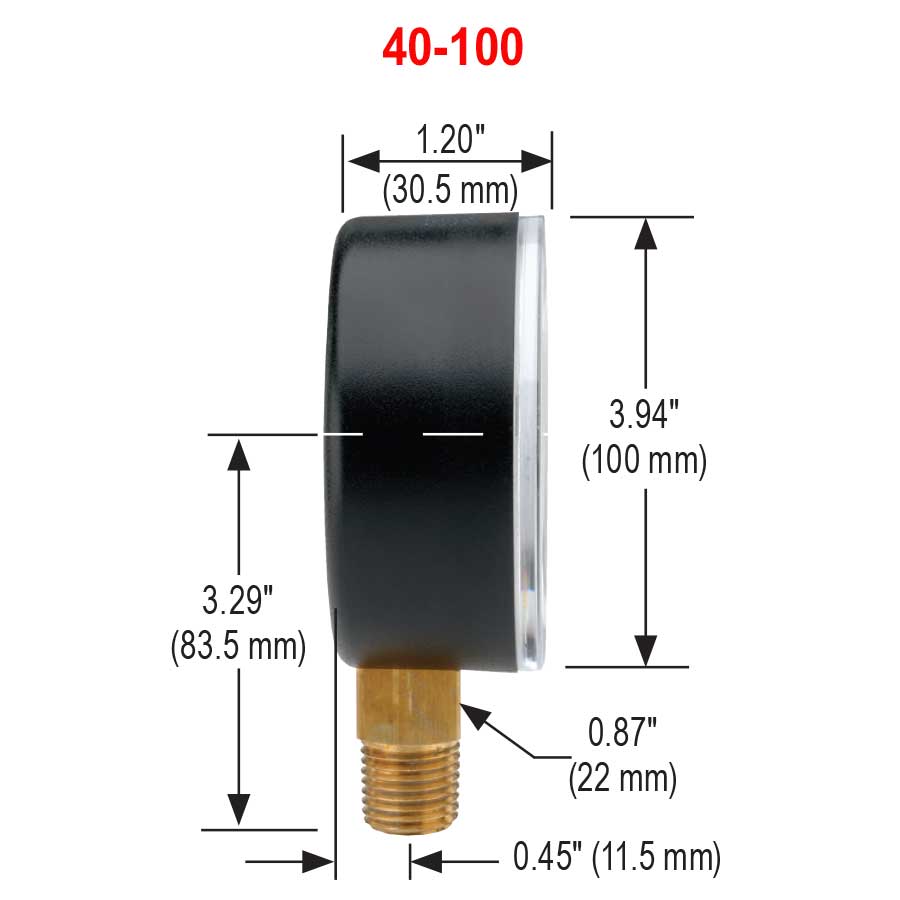

• 40-100

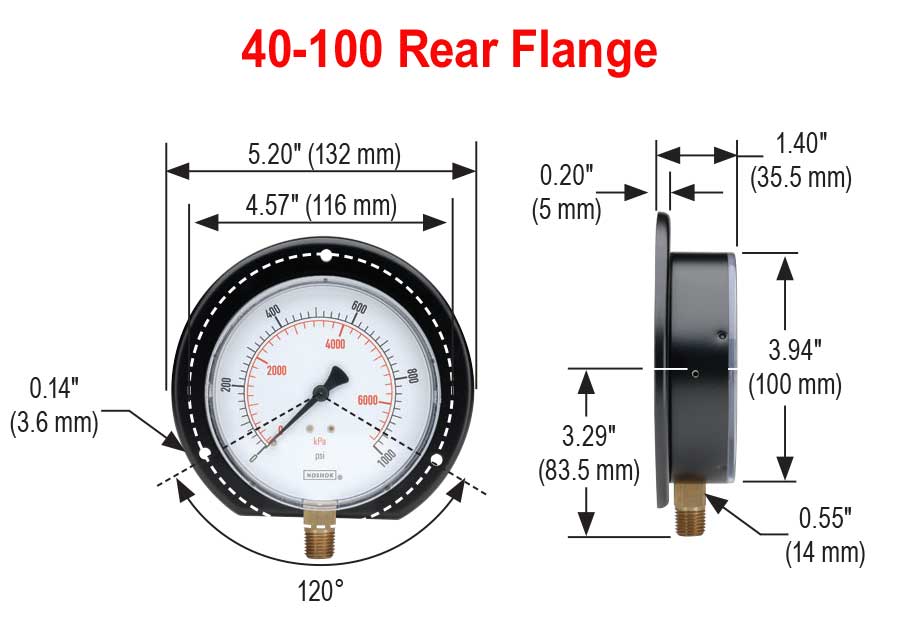

• 40-100 with Rear Flange

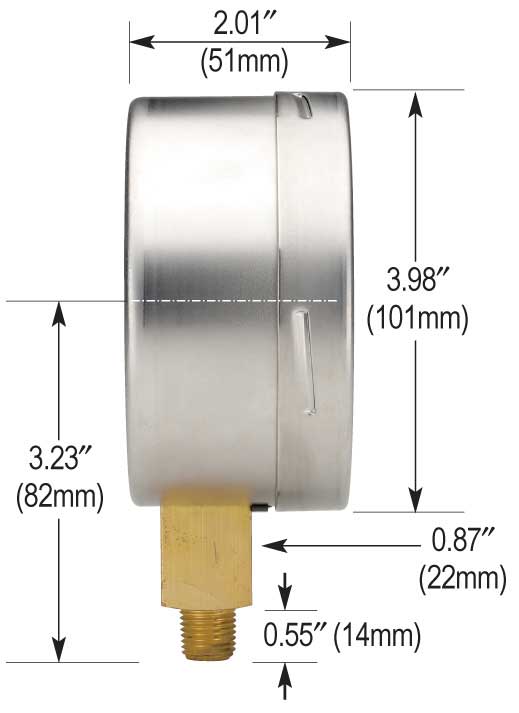

• 40-105

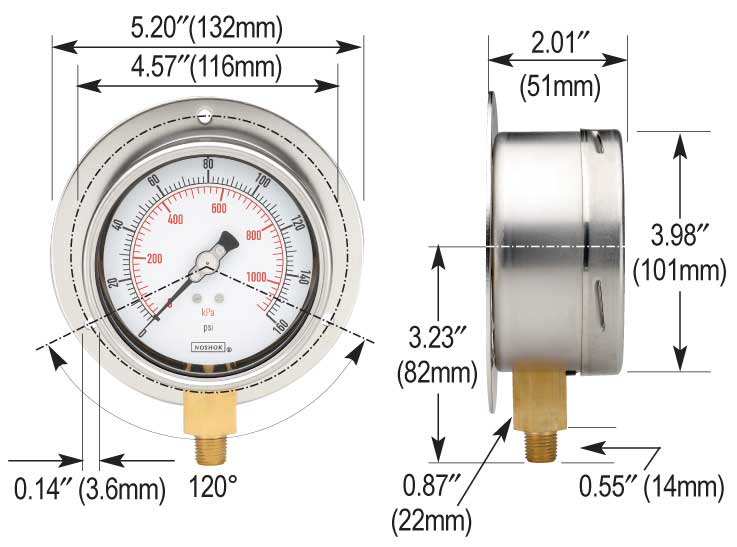

• 40-105 with Rear Flange

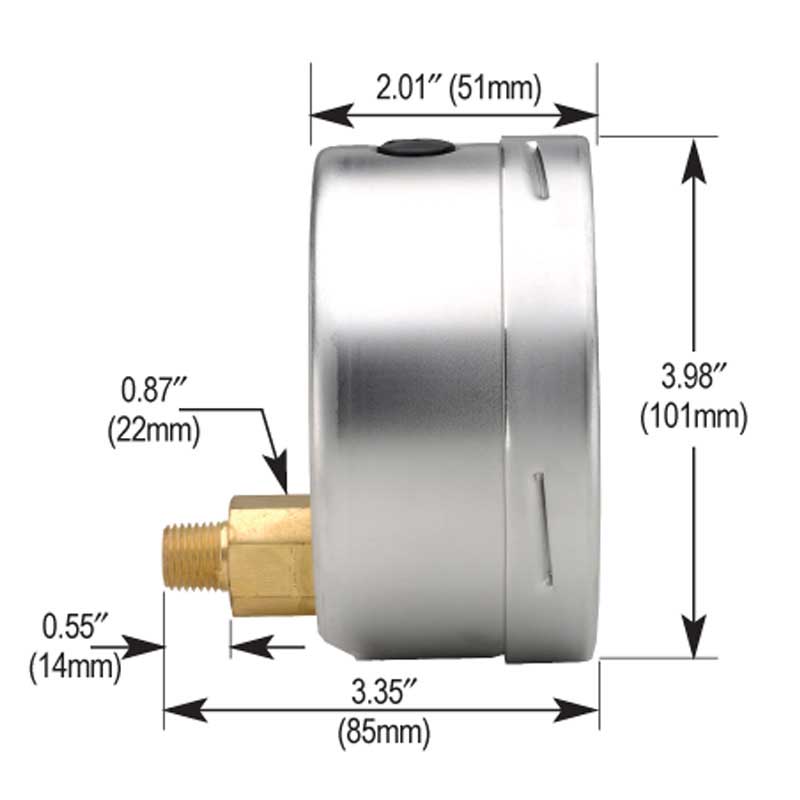

• 40-115

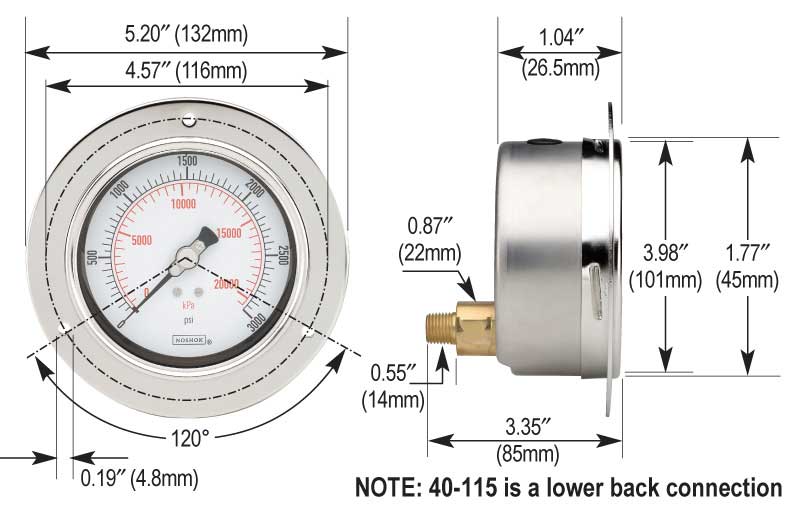

• 40-115 with Front Flange
