900 Series Gauges Dimensions

1.5 Inch Dial

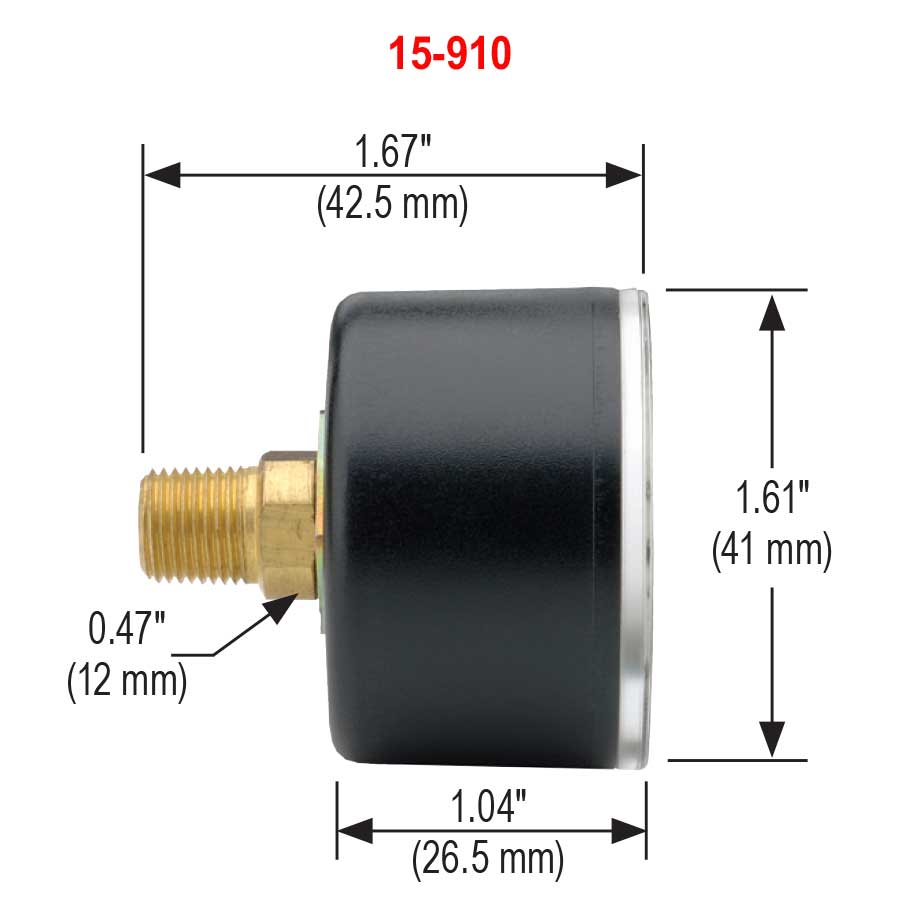

• 15-910

2.5 Inch Dial

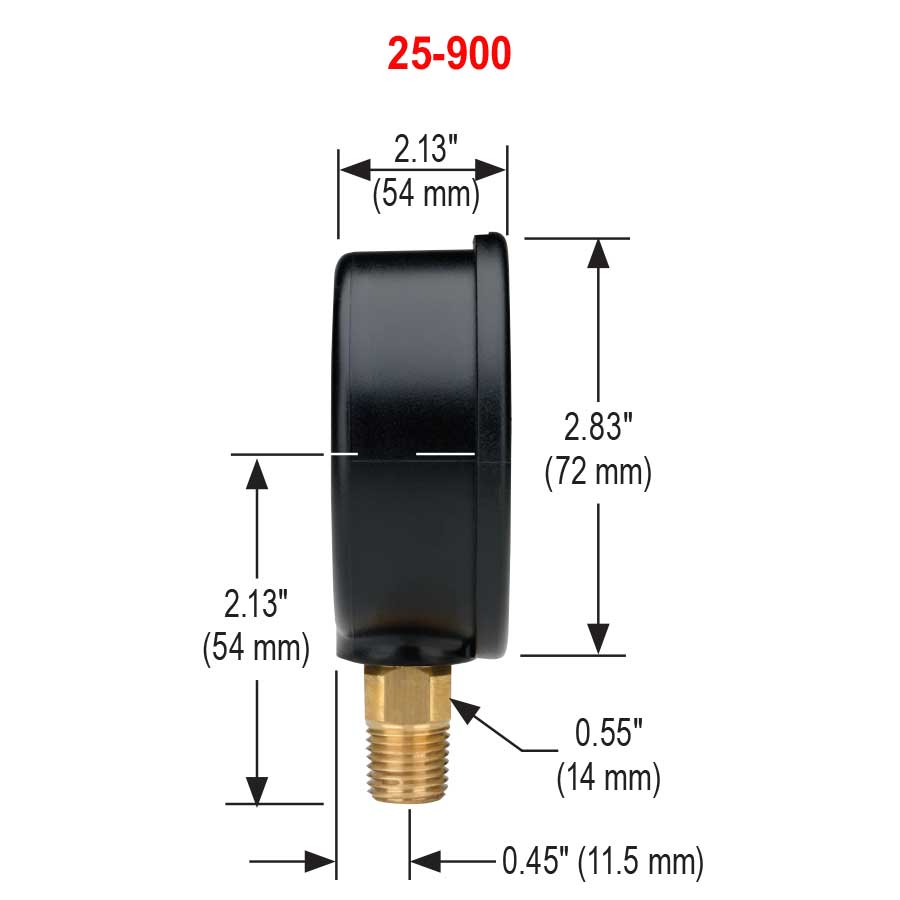

• 25-900

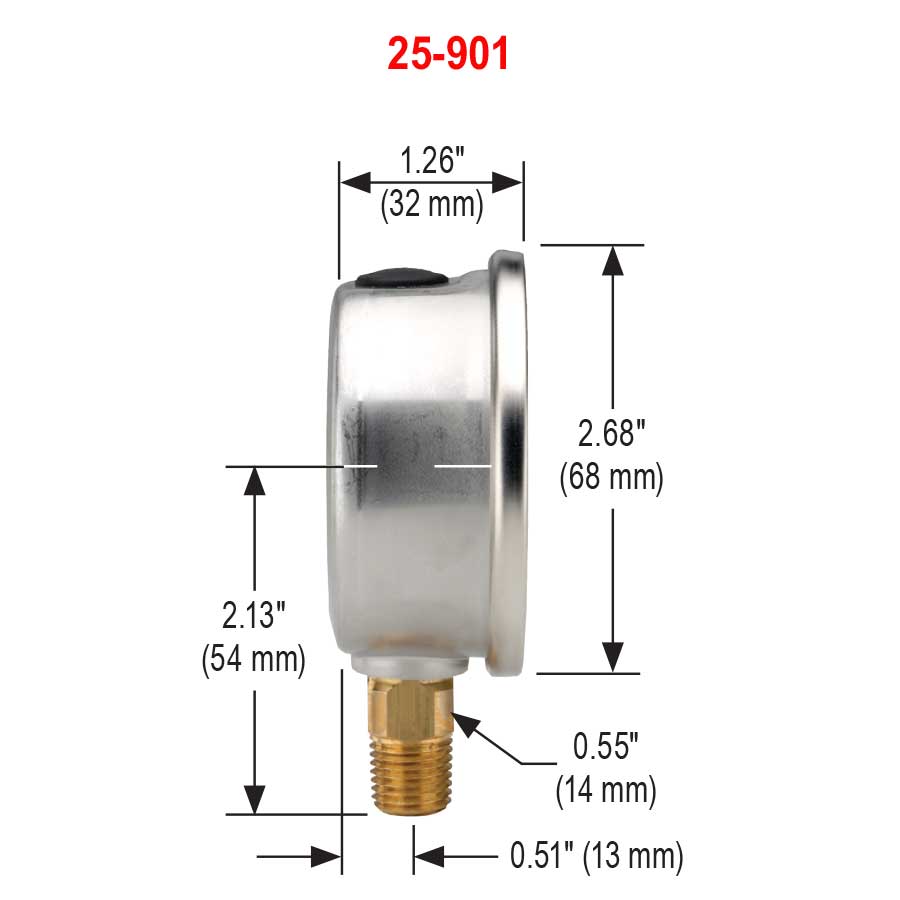

• 25-901

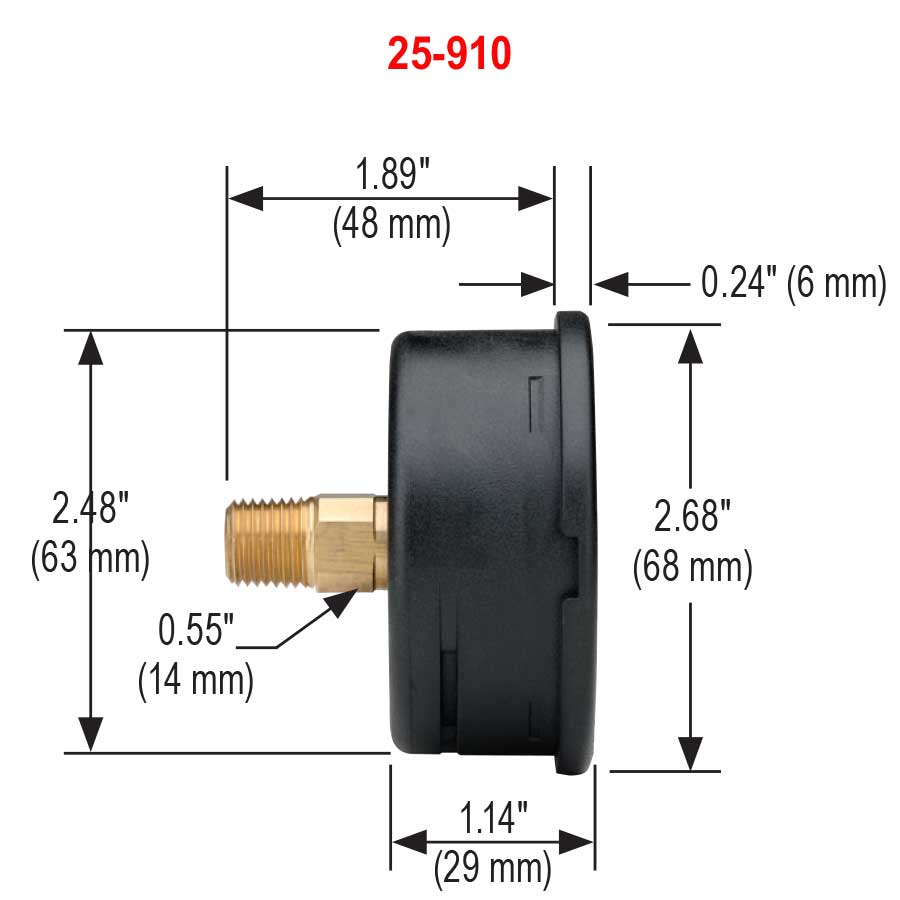

• 25-910
• 25-910 with Front Flange

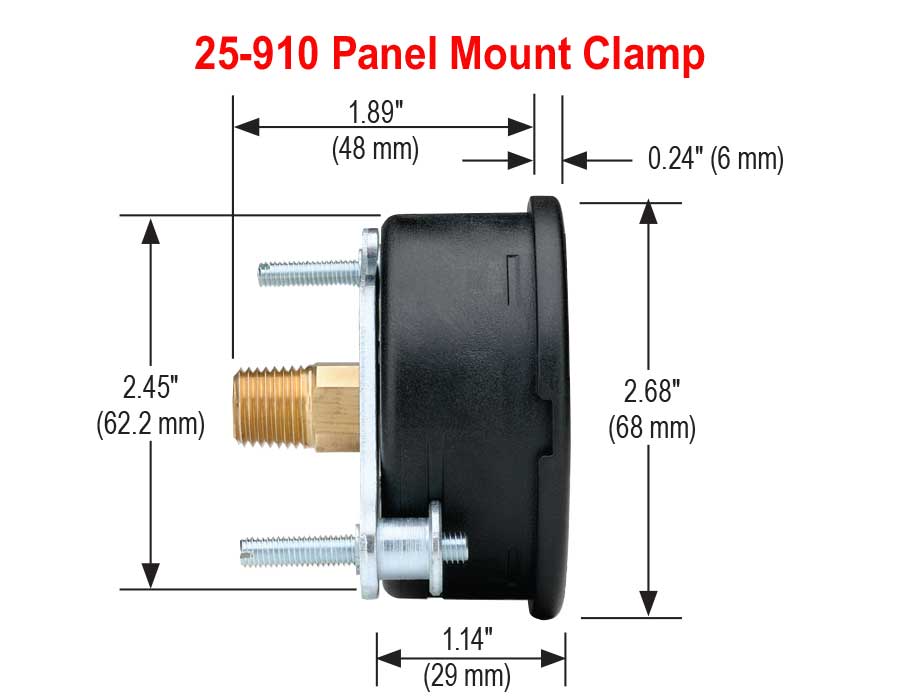

• 25-910 with Panel Mount

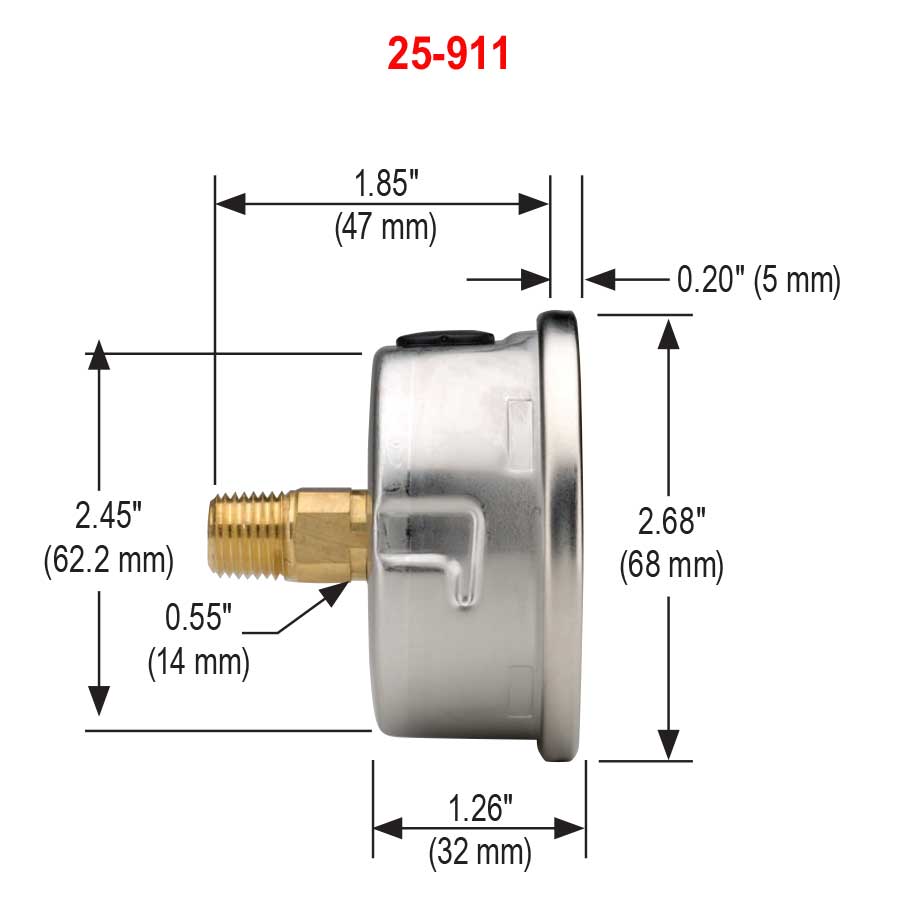

• 25-911

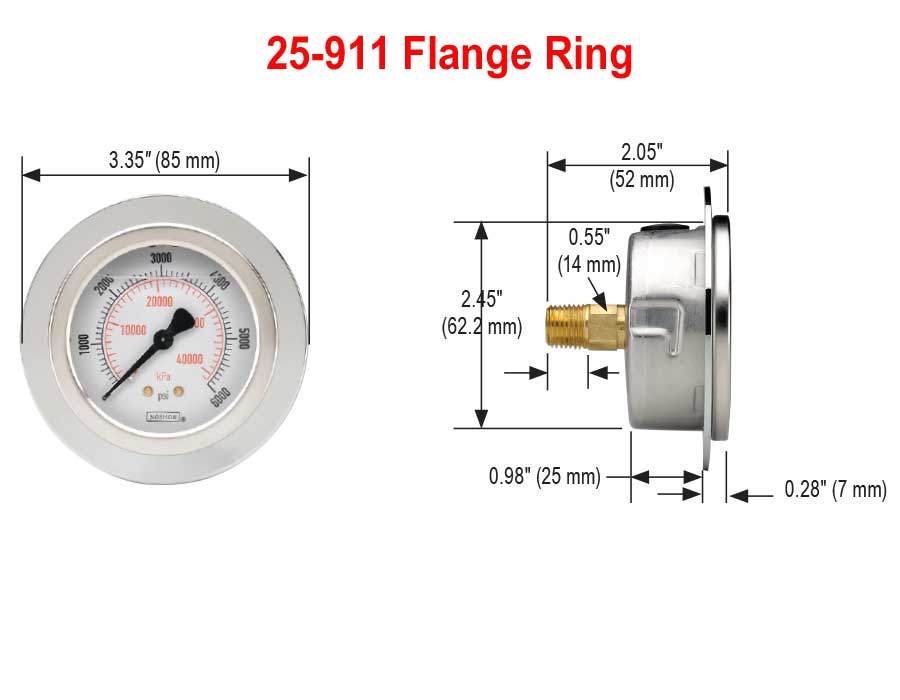

• 25-911 with Flange Ring

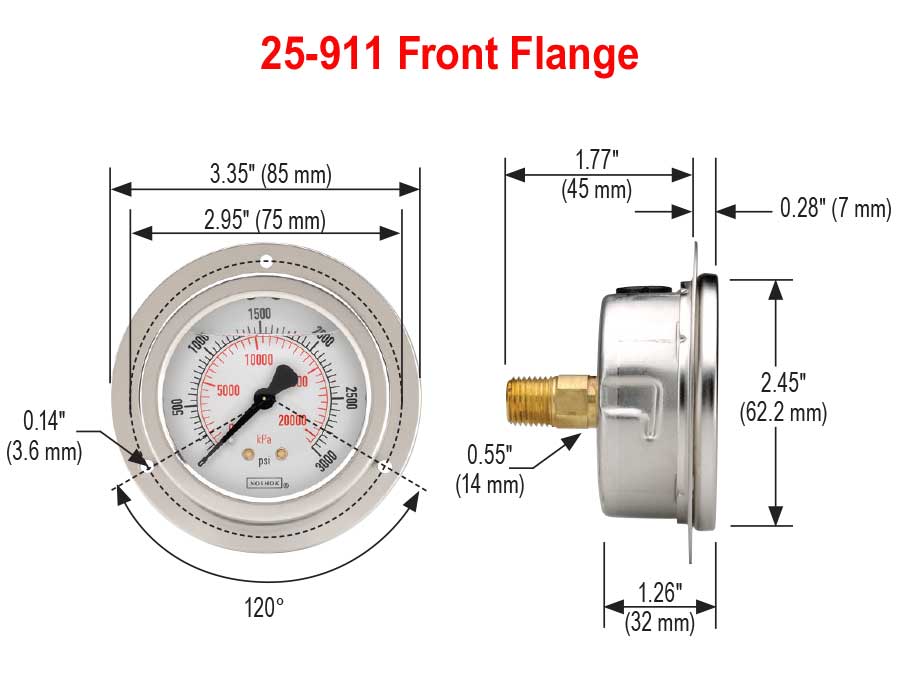

• 25-911 with Front Flange

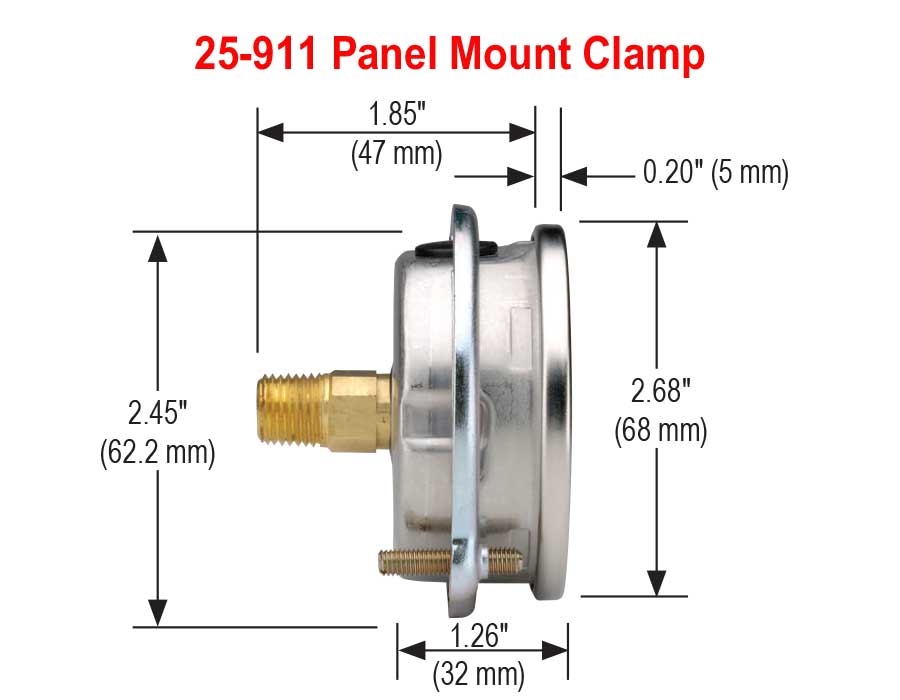

• 25-911 with Panel Mount

4 Inch Dial

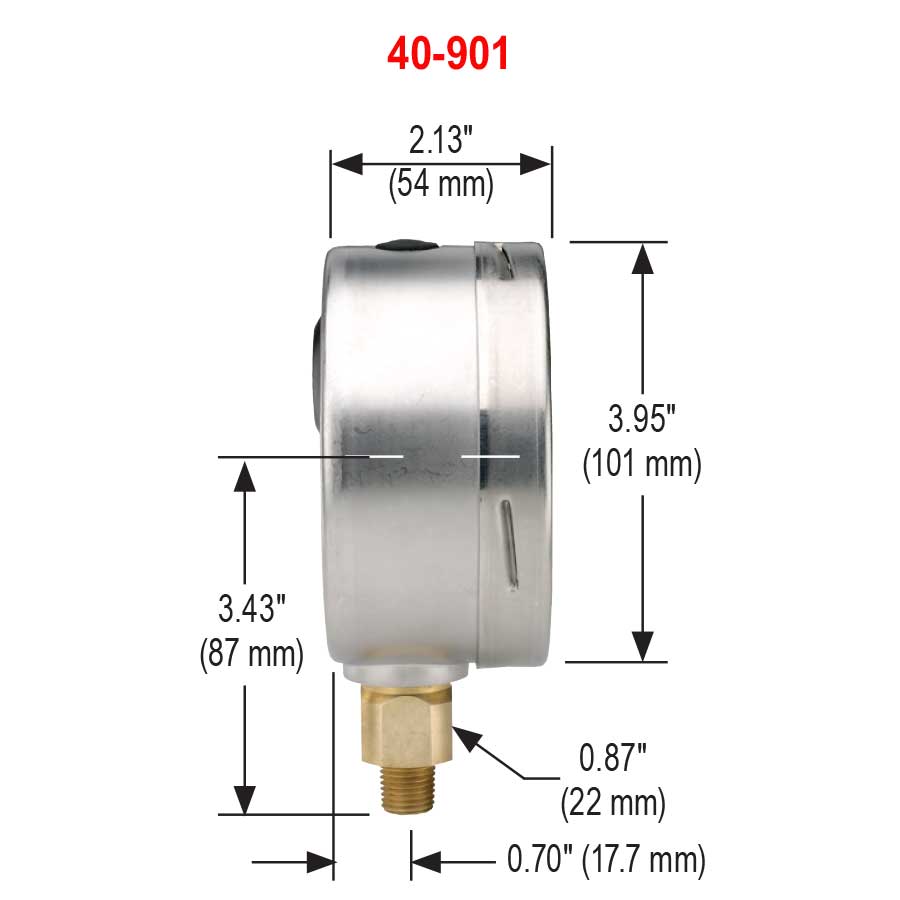

• 40-901

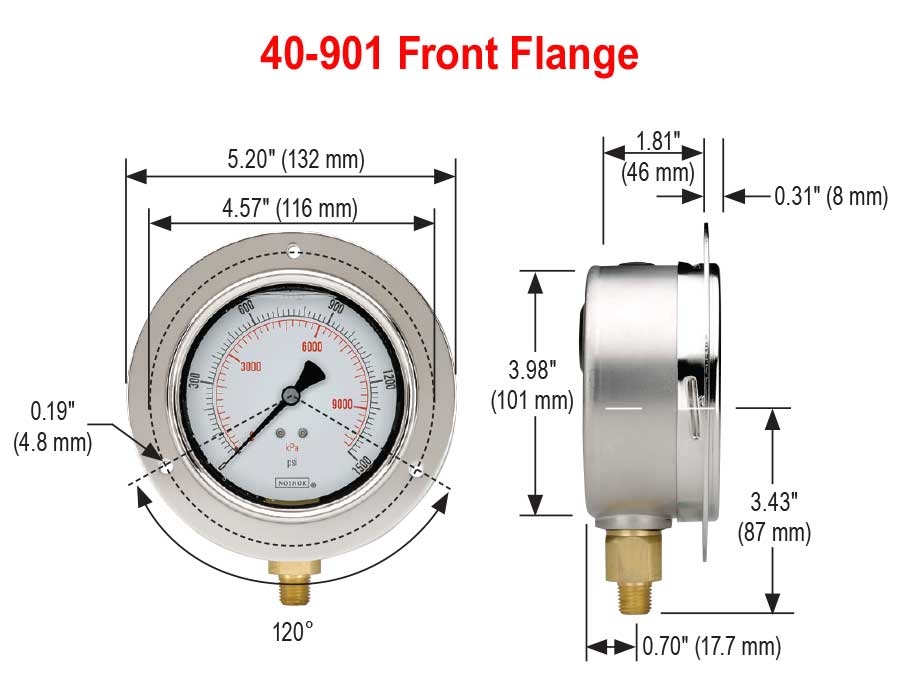

• 40-901 with Front Flange

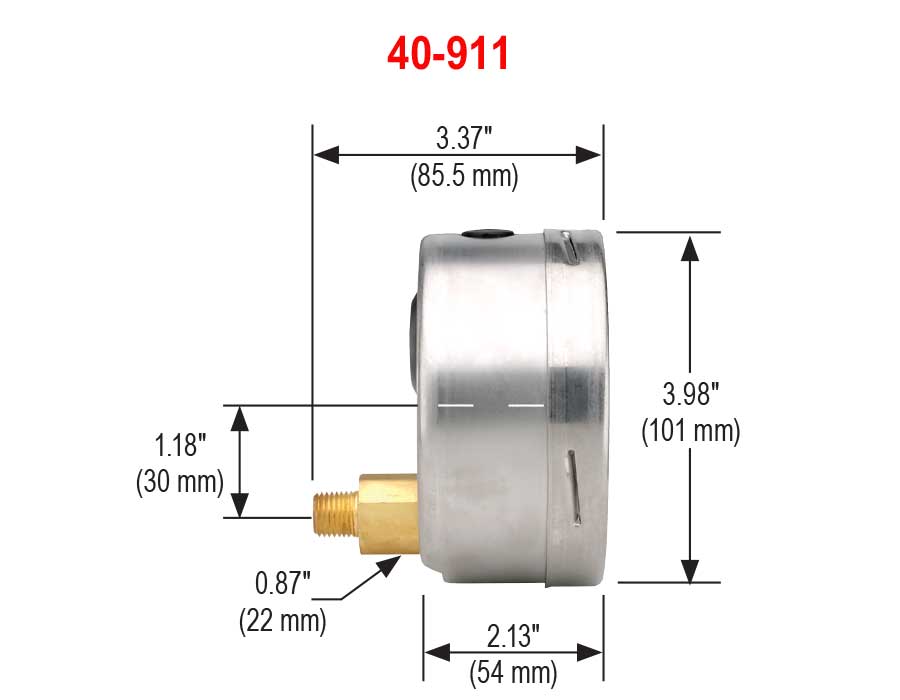

• 40-911

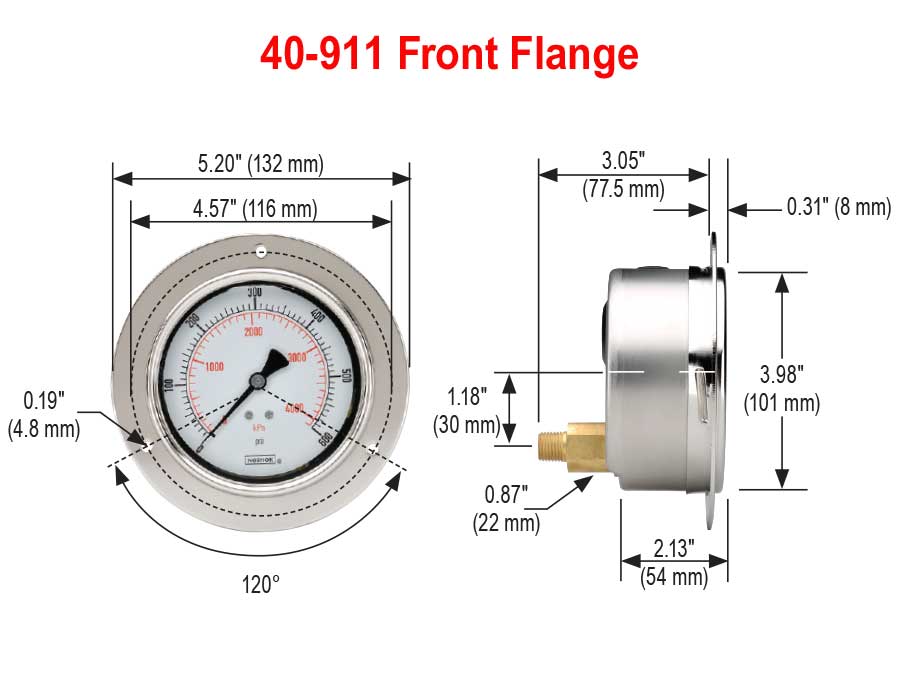

• 40-911 with Front Flange
