1 YEAR WARRANTY - DRY
3 YEAR WARRANTY - LIQUID FILLED
Printable PDF
20 Series Homogenizer Sanitary Pressure Gauges
Product Specifications
|
NOSHOK pressure transmitters or transducers are not to be used in heat sterilization systems as stated in 3A Standard 74-03 paragraph D10.1.2 Diaphragm seal must be installed facing downward or in a vertical position for drainability. Do not install diaphragm seal facing in an upward position. |

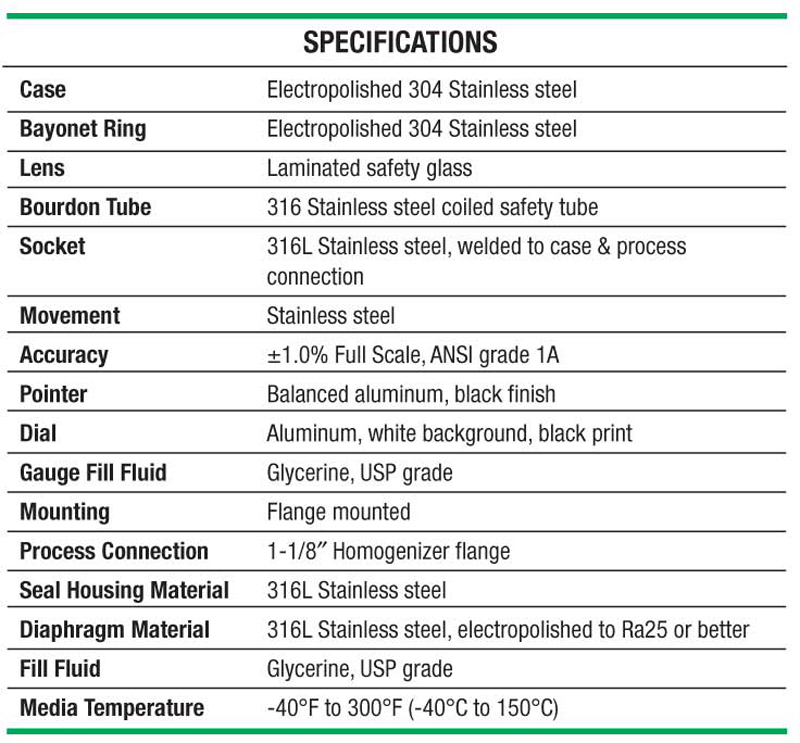

| SPECIFICATIONS | |
| Case | Electropolished 304 Stainless steel |
| Bayonet Ring | Electropolished 304 Stainless steel |
| Lens | Laminated safety glass |
| Bourdon Tube | 316 Stainless steel coiled safety tube |
| Socket | 316L Stainless steel, welded to case & process connection |
| Movement | Stainless steel |
| Accuracy | ± 1.0% Full Scale, ANSI grade 1A |
| Pointer | Balanced aluminum, black finish |
| Dial | Aluminum, white background, black print |
| Gauge Fill Fluid | Glycerine, USP grade |
| Mounting | Flange mounted |
| Process Connection | 1-1/8" Homogenizer flange |
| Seal Housing Material | 316L Stainless steel |
| Diaphragm Material | 316L Stainless steel, electropolished to Ra25 or better |
| Fill Fluid | Glycerine, USP grade |
| Media Temperature | -40°F to 300°F (-40°C to 150°C) |
