Type 12 Sanitary, Clamped-Style, ASME-BPE, Non-Replaceable Diaphragm Seals

1 Year Warranty



  • Features a flush mount diaphragm and all welded construction, ideal for
    food & beverage, pharmaceutical and sanitary markets
  • Can be used for remote mounting of pressure instrument(s) with capillary
    Wetted parts and all welded housing are constructed of 316
    stainless steel for greater strength and durability
  • Accommodates process connection pipes from 1-1/2" through 3" sizes
    Clamped connection allows ease of installation and removal of seal for
    maintenance and cleaning
  • Wetted materials electropolished to 32 μ Ra or better
  • Consider instrument size, pressure range, media composition, ambient and
    operating temperature, and maximum working pressure when selecting
  • Capillaries and cooling elements are available for elevated process temperatures,
    see accessories.
  • Fill fluid must be compatible with process media; i.e. Glycerin may become
    volatile in conjunction with a strong oxidizing agent such as chlorine, forms of
    oxygen or peroxide and nitric acids
Tech Manual

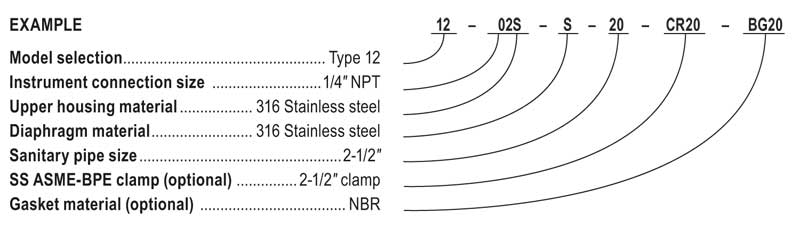

ORDERING INFORMATION

TYPE 12
INSTRUMENT CONNECTION SIZES 02 1/4" NPT 04 1/2" NPT
UPPER HOUSING MATERIAL S 316 Stainless steel
DIAPHRAGM MATERIAL S 316 Stainless steel
SANITARY PIPE SIZES 12 1-1/2" 16 2" 20 2-1/2" 24 3"
OPTIONAL SANITARY SEAL CLAMPS & GASKETS
ASME-BPE SANITARY CLAMPS CR12 1-1/2" CR16 2" CR20 2-1/2" CR24 3"
NBR GASKETS BG12 1-1/2" BG16 2" BG20 2-1/2" BG24 3"
PTFE GASKETS TG12 1-1/2" TG16 2" TG20 2-1/2" TG24 3"

   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.
