1100 Series Diaphragm Type Differential Pressure Gauges







  • Simple, rugged, compact differential pressure gauge
  • Ranges from 0 inH2O to 20 inH2O through 0 psid to 100 psid
  • 2-1/2", 4-1/2" and 6" gauge sizes
  • Engineered plastic gauge case
  • Black anodized Aluminum and 316 Stainless Steel wetted parts
Dimensions Tech Manuals Options Print Catalog Page



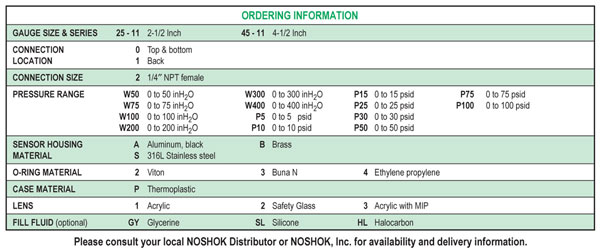

ORDERING INFORMATION

GAUGE SIZES & SERIES 25 - 11 2-1/2" 45 - 11 4-1/2" 60-11 6"
CONNECTION LOCATIONS 0 Dual top & bottom*** 1 Back 2 Side 3 Bottom
CONNECTION SIZE 2 1/4" NPT female 9 7/16-20 female (Back or side only)
PRESSURE RANGES W20 0 inH2O to 20 inH2O W75 0 inH2O to 75 inH2O W400 0 inH2O to 400 inH2O P30 0 psig to 30 psid
W25 0 inH2O to 25 inH2O W100 0 inH2O to 100 inH2O P5 0 psid to 5 psid P50 0 psid to 50 psid
W30 0 inH2O to 30 inH2O W135 0 inH2O to 135 inH2O P10 0 psid to 10 psid P60 0 psid to 60 psid
W40 0 inH2O to 40 inH2O W150 0 inH2O to 150 inH2O P15 0psid to 15 psid P75 0 psid to 75 psid
W50 0 inH2O to 50 inH2O W200 0 inH2O to 200 inH2O P20 0psid to 20 psid P100 0 psid to 100 psid
W60 0 inH2O to 60 inH2O W300 0 inH2O to 300 inH2O P25 0psid to 25 psid
SENSOR HOUSING MATERIALS A Aluminum, black B Brass S 316L Stainless Steel
O-RING & DIAPHRAGM MATERIALS 2 FKM 3 NBR 4 EPDM
CASE MATERIAL A Aluminum (4-1/2" only) P Engineered plastic
LENSES 1 Shatter-resistant acrylic 2 Safety glass** 3 Maximum indicating pointer (MIP)
FILL FLUIDS (OPTIONAL) GY Glycerin SL Silicone††
SWITCH OR TRANSMITTER TYPE
& HOUSING (OPTIONAL)
3 Single switch, NEMA 4X 4 Dual switch, NEMA 4X 7 4-20 mA transmitter in NEMA 4x IP65 plastic enclosure with terminal strip (1/2" female NPT conduit connection).
OPTIONS MH (2) 1/4-20 Mounting Holes     RP Reversed Ports
MK5-CS Pipe Mounting Kit, Stee     ST Stainless Steel Tagging
MK5-SS Pipe Mounting Kit, Stainless steel   WMK Wall Mounting Kit

   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

  * Other ranges and scales available on request.
 ** Only available with dry, 4-1/2" gauge size with aluminum case.
*** Not available with switch or transmitter option.
 † Available with dry gauge only, 2-1/2" and 4-1/2" gauge sizes only
†† Optional Silicone filling available with 2-1/2" and 6" gauge case sizes, and 4-1/2" gauge case size with aluminum case and standard shatter-resistant acrylic lens only.


WARNING: This product can expose you to chemicals including Chromium (VI) and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
