NOSHOK Mechanical Pressure Switches CLICK FOR HI-RES IMAGE More info on 100 Series More info on 200 Series More info on 300 Series More info on 400 Series

NOSHOK Electronic Pressure Switches CLICK FOR HI-RES IMAGE More info on 800/810 Series

Berea, Ohio  (August 5, 2014)  NOSHOK offers a wide selection of electronic and heavy-duty, RoHS-compliant mechanical pressure switches. These switches are ideal for use in hydraulic systems including mobile hydraulics, as well as pneumatic systems, power generation, industrial machinery or machine tools, pumps & compressors and more.

100 Series Miniature, Low Pressure Switch

• Switch adjustment ranges from 15 to 30 psig through 15 to 150 psig
• Standard brass with NBR diaphragm wetted parts
• 1 SPST N.O. or N.C. contact

200 & 300 Series Compact SPDT Switch

• Switch adjustment ranges from 3 to 30 psig through 450 to 4,600 psig
• Standard zinc-plated steel with NBR diaphragm (< 225 psig); steel piston with NBR seal (> 225 psig) wetted parts
• SPDT single changeover contact configuration
• RoHS compliant

400 Series Heavy-Duty Switch

• Switch adjustment ranges from 300 to 5,000 psig
• Standard zinc-plated steel with NBR diaphragm (< 225 psig); steel piston with NBR seal (> 225 psig) wetted parts
• SPDT single changeover contact configuration, N.O. or N.C.
• CE compliant to suppress RFI, EMI & ESD

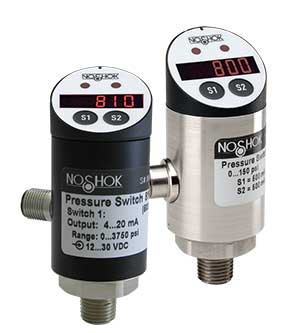

800/810 Series Electronic Indicating Transmitter/Switch

• Compound & standard ranges through 10,000 psig
• Stainless steel wetted parts
• Current & voltage outputs available
• 3 switching output options available:
• 2 switching outputs
• 1 switching output & 1 analog output (4 mA to 20 mA or 0 Vdc to 10 Vdc
• 2 switching outputs & 1 analog output (4 mA to 20 mA)
• CE compliant to suppress RFI, EMI & ESD
