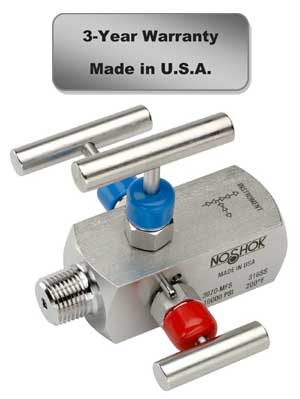

Berea, Ohio  (August 7, 2012)   NOSHOK announces the new 3070 Series Double Block & Bleed Valve with redundant isolation valves and a dedicated vent valve to ensure additional safety in hazardous media applications.

NOSHOK 3070 Series Double Block & Bleed Valves have a 10,000 psi hard seat pressure rating @ 200 °F. The block valve isolates the downstream process fluids, while the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation on the bottom.

The 1/4" NPT vent plug is located 90° to the left and may be removed and replaced with exhaust piping to direct the fluids or gases to a safe location.

• All NOSHOK valves are 100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability
• Blow-out proof stem provides a secondary stem seal in the full open position
• FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Grafoil^® packing optional
• All stems are 316 stainless steel
• All stem threads are rolled for strength and ease of operation
• One-piece bonnet with a metal-to-metal seal to the valve body below
  the bonnet threads
• Slotted spring pin to prevent accidental bonnet loosening
• Vinyl dust cap for bonnet and stem (non-packing)

NOSHOK, Inc. is a leading supplier of pressure, level, temperature and force measurement instrumentation, along with needle & manifold valves, serving major industries around the world. Products include pressure gauges, pressure and temperature transmitters, transducers & indicators, pressure switches, needle valves, manifold valves, pressure snubbers, bimetal thermometers, force measurement sensors and diaphragm seals. These products meet and exceed the application requirements of OEM’s and industrial users seeking exceptional quality, reliability and value.
