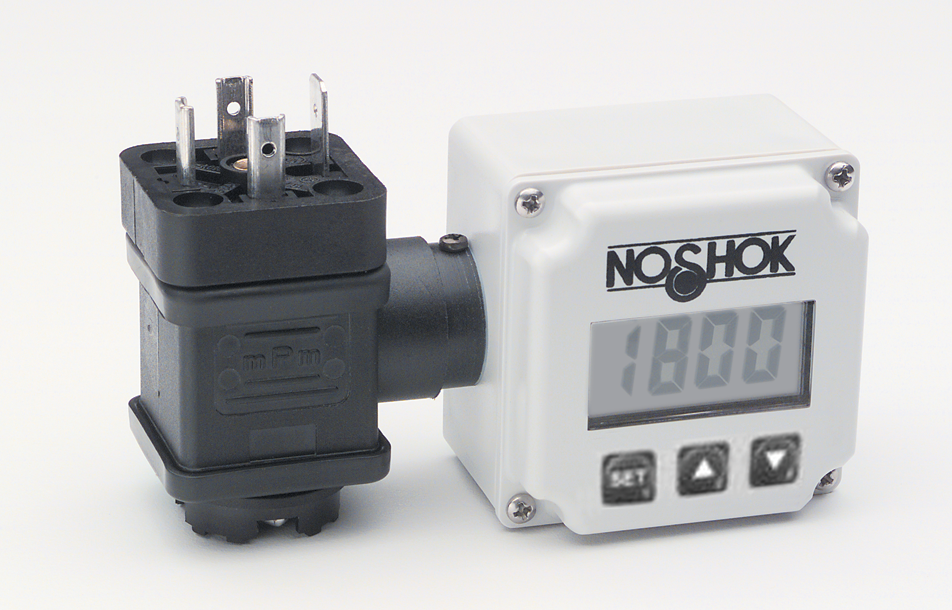

1800 Series Attachable Loop-Powered Digital Indicators
|
|
||
|
Product Specifications Dimensions Technical Manual Reference Information Standard Item Part Numbers
|
|
|
Features & Benefits
- Easily inserted into NOSHOK pressure transmitters utilizing a 4mA ro 20mA output signal and the Hirschmann (DIN 43650A) connector
- Programmable to display a range of -1999 to 9999; can be tilted for better viewing

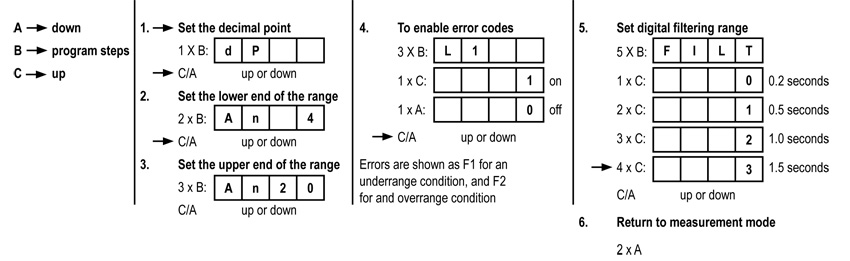

- Simple menu-driven programming
- User selectable digital filtering to improve readability in rapidly varying pressure applications
- All parameters are stored in non-volatile memory so that the reprogramming is not necessary in the event of a power failure
- No extra wiring needed
- For use with NOSHOK 300, 600, 615, 616, and 800 Series Transmitters
- CE compliant to suppress RFI, EMI, and ESD
- Available with optional relay that is programmable through the front of the meter
Applications
- Hydraulic and pneumatic systems
- Pumps and compressors
- Test equipment and systems
- Industrial machinery and machine tools
- HVAC
- Power generation
- Water and wastewater
- Stamping and forming presses
