Home > Level Measurement : Hazardous Location > 627 Series Intrinsically Safe Submersible Liquid Level Transmitters

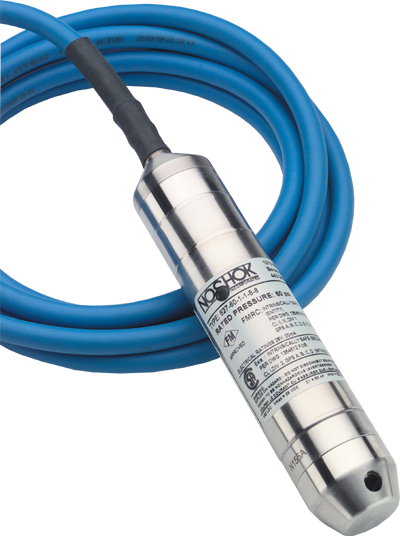

627 Series Intrinsically Safe Submersible Liquid Level Transmitters
Features & Benefits
- Designed for applications that require liquid level measurement in hazardous locations
- Accuracy to ±0.25% Full Scale (Best Fit Straight Line); ±0.125% Full Scale optional for ranges ≥150 in H2O only
- Advanced diffused semi-conductor and sputtered thin film sensor for maximum stability
- Welded 316 stainless steel pressure chamber
- Ranges from 0 inH2O to 50 inH2O through 0 psi to 350 psi
- CE compliant to suppress RFI, EMI, and ESD
- Factory Mutual & Canadian Standards Association Approved
Applications
- Water and wastewater
- Chemical tanks
- Methane wells
- Marine applications
Approved For Use
- Intrinsically Safe, entity approval for Class I, II and III, Division 1, Groups A, B, C, D, E, F, and G; and Class I, Zone 0 Aex ia IIC Dust Ignition-proof for Class II and III, Division 2, Groups E, F, and G
- Non-Incendive for Class I, Division 2, Groups A, B, C, and D FMRC 3600, 3610, 3611, 3810 (including supplement #1), ISA-S12.0.01, IEC 60529 (including amendment #1)
