1000 Series Piston Type Differential Pressure Gauges



3 year warranty



  • Simple, rugged, compact differential pressure gauge
  • Ranges from 0 psid to 5 psid through 0 psid to 110 psid
  • 2-1/2", 4-1/2" and 6" gauge sizes
  • Engineered plastic gauge case
  • Clear anodized Aluminum and 316 Stainless Steel wetted parts
Dimensions Tech Manuals Options Print Catalog Page

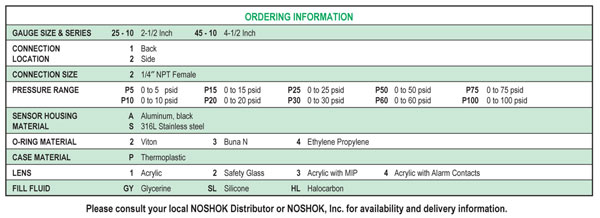

ORDERING INFORMATION

GAUGE SIZES & SERIES 25 - 10 2-1/2" 45 - 10 4-1/2" 60-10 6"
CONNECTION LOCATIONS 0 Bottom 1 Back 2 Side
CONNECTION SIZE 2 1/4" NPT female 9 7/16-20 female (Back or side only)
PRESSURE RANGES* P5 0 psid to 5 psid P20 0 psid to 20 psid P50 0 psid to 50 psid P100 0 psid psid to 100 psid
P10 0 psid to 10 psid P25 0 psid to 25 psid P60 0 psid to 60 psid P110 0 psid to 110 psid
P15 0 psid to 15 psid P30 0 psid to 30 psid P75 0 psid to 75 psid
SENSOR HOUSING MATERIALS A Aluminum (3,000 max working pressure) S 316L Stainless steel (6,000 max working pressure)
O-RING & DIAPHRAGM MATERIALS 1 PTFE 3 NBR 5 Neoprene
2 FKM 4 EPDM
CASE MATERIAL A Aluminum (4-1/2"only) P Engineered plastic
LENSES 1 Shatter-resistant acrylic 2 Safety glass** 3 Maximum indicating pointer (MIP)
FILL FLUIDS (OPTIONAL) GY Glycerin SL Silicone††
SWITCH OR TRANSMITTER TYPE
& HOUSING
1 Single switch, flying leads with grommet wire seal 5 Single switch with Hirschman electrical connection
2 Dual switch, flying leads with grommet wire seal 6 Dual switch with Hirschman electrical connection
3 Single switch, flying leads with 1/4" female NPT, NEMA 4X 7 4-20 mA transmitter in NEMA 4x IP65 plastic enclosure with terminal strip (1/2" female NPT conduit connection).
4 Dual switch, flying leads with 1/4" female NPT, NEMA 4X
OPTIONS MH (2) 1/4-20 Mounting Holes RP Reversed Ports
MK5-CS Pipe Mounting Kit, Steel ST Stainless Steel Tagging
MK5-SS Pipe Mounting Kit, Stainless steel
WMK Wall Mounting Kit

   Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

 * Other ranges and scales available on request.
** Only available with dry, 4-1/2" gauge size with aluminum case.
  † Available with dry gauge only, 2-1/2" and 4-1/2" gauge sizes only
†† Optional Silicone filling available with 2-1/2" and 6" gauge case sizes, and 4-1/2" gauge case size with aluminum case and standard shatter-resistant acrylic lens only.
