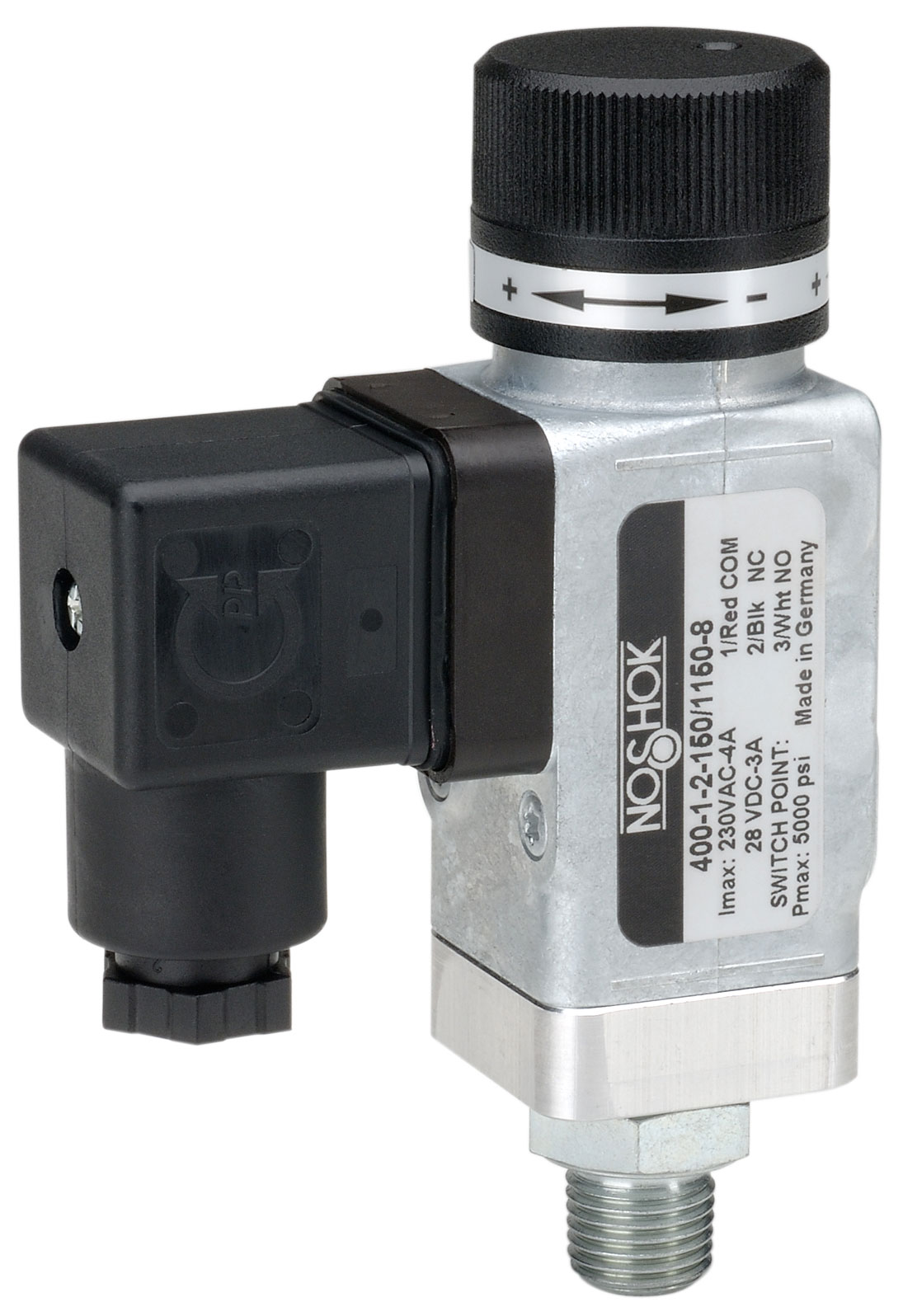

400 Series Heavy Duty Mechanical Switch
Features & Benefits
- Stable switching point setting
- Converts pneumatic and hydraulic pressure into switching functions
- Excellent repeatability of ±2% of Full Scale, designed for applications requiring maximum accuracy under high loads
- Robust design with zinc die-cast housing
- 360° rotatable male connections
- High loadability (shock 30g, vibration 10 g)
- SPDT, can be normally open (N.O.) or normally closed (N.C.) depending on the wiring
- The switching point is fully adjustable by means of a simple adjustment knob within the adjustment range
- Includes a locking mechanism for switch point adjustment
- Hirschmann (DIN EN 175301-803 Form A) with optional 36” cable, or M12 x 1(4-Pin) electrical connection
- Flange connection (optional)
- LED status indicator (optional)
Applications
- Hydraulic systems, including mobile hydraulics
- Pneumatic systems
- Power generation
- Pumps and compressors
- Marine
Click on chart below to enlarge
Click on chart below to enlarge - Printable PDF

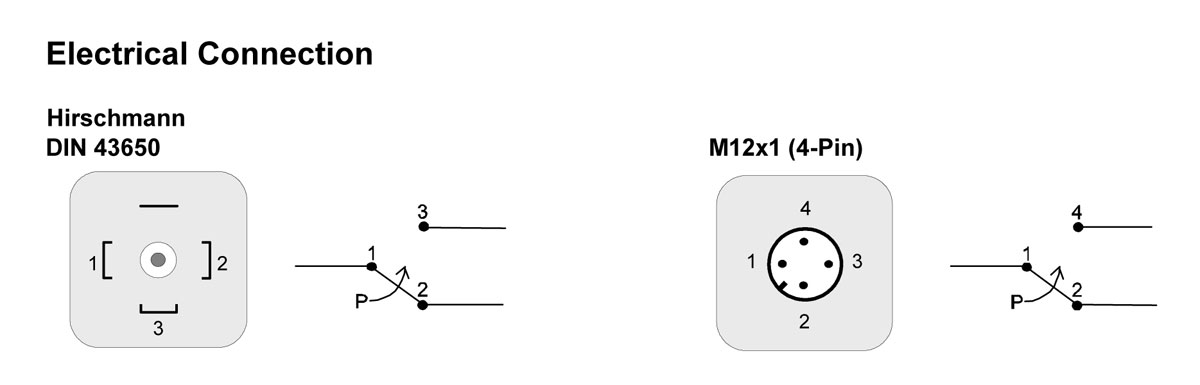

Click on diagram below to enlarge - Printable PDF
