2200 Series Dual Display Digital Indicators

  • Accepts a wide variety of input signals including thermocouples or RTDs, current, voltage, resistance and process signals
  • Dual display with tri-color and variable intensity digits
  • Universal AC/DC power input and 24 Vdc sensor excitation
  • Built-in USB port for configuring with a computer
  • Meter update rate up to 160/second
  • Plug-in option cards available for field upgrading
  • Interface software available on request

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SERIES 2200
INPUT SIGNALS 1 4 mA to 20 mA 6 1 Vdc to 11 Vdc E Thermocouple Type E
2 0 Vdc to 5 Vdc J Thermocouple Type J PT1 RTD PT100
4 1 Vdc to 6 Vdc K Thermocouple Type K
5 0 Vdc to 10 Vdc T Thermocouple Type T
POWER REQUIREMENTS 4 40 Vac to 250 Vac / 21.6 Vdc to 250 Vdc
OPTION CARDS 0 No option card 3 Quad NPN-OC option card 6 RS 232-C serial communications option card
1 Dual relay option card 4 Quad PNP-OC option card 7 RS 485 Serial communications option card
2 Quad relay option card 5 Analog output option card
OPTIONAL ENCLOSURES ENC1 Black painted steel

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SPECIFICATIONS
Input signals 4 mA to 20 mA, 0 Vdc to 10 Vdc (optional RTD and Thermocouple)
Sensor excitation Buit-in 24 Vdc
Process display Upper                    6 digit, 0.71", tri-color LED (red, green, orange)
Lower                    9 digit, 0.35", green LED
Key pad 2 programmable function keys, 4 total
Power requirement AC version          40 Vac to 250 Vac, 50/60 Hz, 20 VA
DC version          21.6 Vdc to 250 Vdc, 8 W
Electrical connection Screw terminals at back of case
Built-in USB port for configuring with a computer
Memory FRAM
Accuracy <0.03% of full scale          64 °F to 82 °F (18 °C to 50 °C)
<0.12% of full scale          32 °F to 122 °F (0 °C to 50 °C)
Humidity <85%, non-condensing
Vibration 5-150 Hz, 2 g
Shock 25 g
Normal rejection mode 60 dB 50/60 Hz
Altitude Up to 2,000 meters
Update rate 160/sec
Temperature ranges Operating         32 °F to 122 °F (0 °C to 50 °C)
Effect                ≤ 0.1% of full scale /18 °F (10 °C)
Storage            -40 °F to 140 °F (-40 °C to 60 °C)
Electromagnetic rating CE compliant to EMC norm EN 61326-1
RFI, EMI and ESD protection
Environmental rating NEMA 4, 4X, IP65 (front of display only)
Filtering 0 seconds to 25 second, selectable
Min/Max reading Captures and stores min/max measurement
User inputs 2 programmable, 30 Vdc max. continuous
Totalizer Time base                  Second, minute, hour or day
Batch                          Can accumulate from user input
Linearization 2 to 16 points, selectable
Weight 8 oz.
Option cards Serial communication (RS232 or RS485)
DeviceNet communication
MODBUS communication (RS485 RTU and ASCII MODBUS)
Profibus communication
Analog output (0-20 mA, 4-20 mA or 0-10 Vdc)
Dual or Quad Relay (NPN or PNP type)
USB programming

Options & Accessories

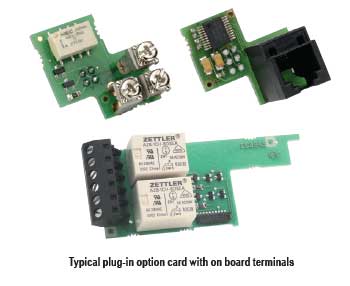

  • No Option Card (0)
  • Dual Relay Option Card (1)
  • Quad Relay Option Card (2)
  • Quad NPN-OC Option Card (3)
  • Quad PNP-OC Option Card (4)
  • Analog Output Option Card (5)
  • RS232 Serial Communications Option Card (w/9-pin D connector) (6)
  • RS485 Serial Communications Option Card (w/Dual RJ11 connector) (7)

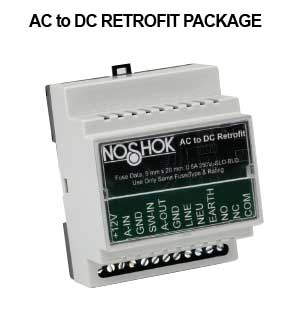

  • Easily integrates with non-metallic seal and transmitter/switch assemblies to operate with 110/240 VAC systems
  • Solid state relay - 10A at 250 VAC
  • DIN rail mountable with NEMA 4X enclosure
  • Black painted steel enclosures (ENC1) are available
