- Accepts a variety of standard process signals and precisely scales them into any desired unit of measurement
- Single input
- Employs advanced technology for stable, drift-free readout
- Upgradable with option cards; including relay set point alarms, analog output and serial communication
- 32 point scaling for non-linear processes
- Max. and min. value display
- Easy menu-driven programming
- NEMA 4X/IP65 sealed front bezel
- Integral PC software available for configuration
- AC or DC input power
- Programmable signal response time
- Standard DIN panel cutout
If you are viewing on a smaller screen or with screen zoom, please use
the horizontal scroll bar at the bottom of this table to see all information.

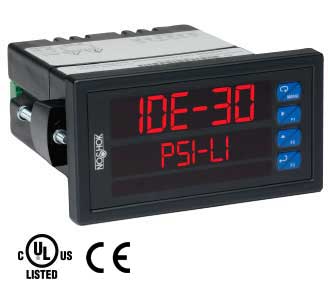

| SERIES |
IDE30 |
| INPUT SIGNALS |
A |
Single Analog Input |
T |
Temperature |
R |
Resistance |
| POWER REQUIREMENTS |
1 |
85-265 Vac, 90-265 Vdc |
2 |
12-24 Vdc/Vac |
|
|
| DISPLAY BRIGHTNESS |
1 |
0.6 in High, Dual Line, 6 Digits, Red LED |
2 |
SunBright, 0.6 in, Dual Line, 6 Digits, Red LED |
| OPTION CARDS |
0 |
No option card |
2 |
4-20 mA output |
4 |
2 Relays & 4-20 mA Output |
| 1 |
2 Relays |
3 |
4 Relays |
5 |
4 Relays & 4-20 mA Output |
If you are viewing on a smaller screen or with screen zoom, please use
the horizontal scroll bar at the bottom of this table to see all information.
| SPECIFICATIONS |
| Input signals |
A: Field selectable: 0-20 mA, 4-20 mA
+10 V (0-5 V, 1-5 V, 0-10 V)
T: J, K, T, E, R, S, B, N, C Thermocouples 100 or 1000 Ω Platinum, 10 Ω Copper, 120 Ω Nickel RTDs
R: 15 mV, 30 mV, 150 mV, 300 mV unipolar; ±15 mV, ±25 mV, ±150 mV, ±250 mV bipolar Inputs |
| Sensor excitation |
A: Isolated 24 Vdc @ 200 mA Transmitter Power Supply
R: Selectable 5 or 10 VDC Sensor Excitation @ 350 mA Max |
| Process display |
Dual-Line 6-Digit Display, 0.6" (15 mm) & 0.46" (12 mm) |
| Key pad |
4 Front panel buttons |
| Power requirement |
AC version
DC version |
85-265 Vac 50/60 Hz, 20 watts max
90-265 Vdc or 12-24 Vdc ±10%, 15 watts max |
| Electrical connection |
Screw terminals at back of case |
| Accuracy |
See User Manual |
| Humidity |
0 to 90% non-condensing |
| Normal rejection mode |
Greater than 60 dB at 50/60 Hz |
| Altitude |
Up to 2,000 meters |
| Update rate |
5/second (200 ms) |
| Temperature ranges |
Operating
Storage |
-40 °F to 150 °F(-40 °C to 65 °C)
-40 °F to 185 °F (-40 °C to 85 °C) |
| Electromagnetic rating |
See user manual for detail |
| Environmental rating |
NEMA 4X, IP65 (front of display only) |
| Filtering |
0 seconds to 25 second, selectable |
| Min/Max reading |
Captures and stores min/max measurement |
| Linearization |
2 to 32 points, selectable |
| Weight |
9.5 oz (269 g) |
| Option cards |
2 Relays
4-20 mA output
4 Relays
2 Relays & 4-20 mA output
4 Relays & 4-20 mA output
Consult factory for additional option cards |
