- Designed for measuring axial loads and bearing forces
- Ranges from 360 lbf to 70,000 lbf
- Lateral forces with an angle of ± 3° can be regarded as negligible which allows the 3000 Series to provide the highest degree of accuracy
- Accuracy levels range from ±0.25% full scale (BFSL) to ±1.6% full scale, depending on the measuring instrument
- Various flexible and rigid tubing options allow easy installation in challenging application environments
- Durable Stainless Steel housing and self adapting piston provide exceptional corrosion resistance and durability
- A high quality NOSHOK 300 Series Pressure Gauge or 100, 200 or 615 Series Transducer is directly mounted to the load cell for precise measurement indication
- Operates without an external power supply when using a pressure gauge for indication
- Provides an extremely high degree of accuracy because the load cell is vacuum filled and sealed, eliminating the error that can be caused by entrapped air
- Steel jacketed flexible tubing and capillary systems are offered to accommodate applications that require remote mounting of the gauge or transducer
- An optional fluid filled gauge dampens the effects of pulsation, vibration and shock, and lubricates the gauge internals for extended service life
- Various output signals available in transducer models that are CE compliant
If you are viewing on a smaller screen or with screen zoom, please use
the horizontal scroll bar at the bottom of this table to see all information.
| LOAD CELL |
3080 |
ND 80 - Compression - standard design |
|
|
|
|
| MEASURING RANGES |
360A |
360 lbf |
3500A |
3,500 lbf |
10000A |
10,000 lbf |
| 700A |
700 lbf |
5000A |
5,000 lbf |
18000A |
18,000 lbf |
| 2000A |
2,000 lbf |
6000A |
6,000 lbf |
36000A |
36,000 lbf |
| 2500A |
2,500 lbf |
9000A |
9,000 lbf |
70000A |
70,000 lbf |
| Other ranges available, please consult factory. |
| INSTRUMENTS |
1 |
25-300 Series gauge |
6 |
100 Series transmitter |
8 |
615 Series transducer |
| 4 |
40-400 Series gauge |
7 |
200 Series transducer |
|
|
| INSTRUMENT CONNECTIONS* |
A |
Bottom |
C |
Right side |
E |
None** |
| B |
Top |
D |
Left side |
|
|
| 0 No options |
0 No options |
Accuracy |
Accuracy |
Accuracy |
| 1 Dry gauge |
1 Glycrine filled |
1 0.50% |
1 0.50% |
1 0.25% |
| 2 Max. indicating pointer |
2 Max. indicating pointer |
Output |
Output |
Output |
| 3 Set pointer |
3 Set pointer |
1 4 mA to 20 mA |
2 0 Vdc to 5 Vdc |
1 4 mA to 20 mA |
| 4 Rubber case protector |
8 SS rear flange |
Electrical Connection |
3 1 Vdc to 5 Vdc |
2 0 Vdc to 5 Vdc |
| 5 Glass overlay |
|
1 Option 7 with 36" cable |
5 0 Vdc to 10 Vdc |
3 1 Vdc to 5 Vdc |
| 6 Safety glass overlay |
|
3 6-pin Bendix |
Electrical Connection |
5 0 Vdc to 10 Vdc |
| |
|
6 1/2" NPT conduit w /36" cable |
1 Option 7 with 36" cable |
Electrical Connection |
| |
|
7 Mini-Hirschmann |
3 6-pin Bendix |
1 Option 8 with 36" cable |
| |
|
25 M12 x 1 (4-pin) |
6 1/2" NPT conduit w/ 36" cable |
3 6-pin Bendix |
| |
|
|
7 Mini-Hirschmann |
6 1/2" NPT conduit w /36" cable |
| |
|
|
25 M12 x 1 (4-pin) |
8 Hirschmann |
| |
|
|
|
25 M12 x 1 (4-pin) |
| CONNECTING TYPES |
0 |
Direct |
2 |
100 mm SS spacer |
|
|
| |
1 |
50 mm SS spacer |
3 |
Capillary w/ spiral protective sleeve |
|
| CAPILLARY LENGTH |
## Specify in feet (for options 3 and 4) |
|
|

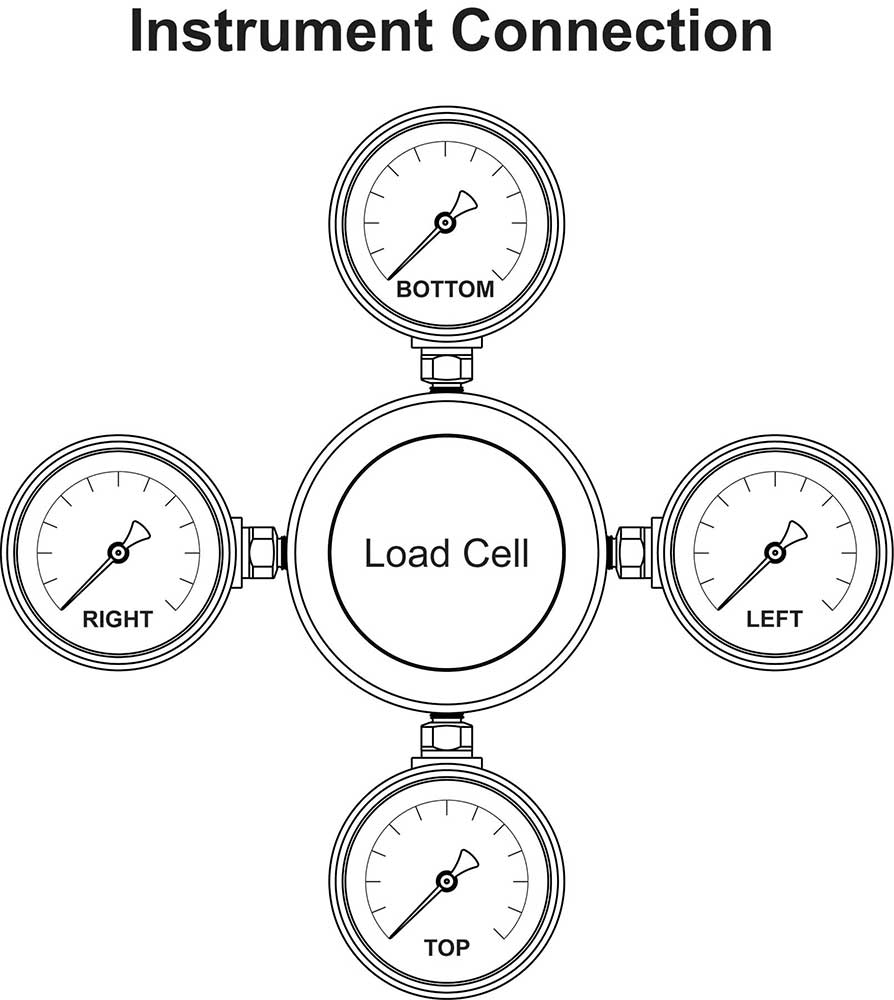

* Refer to Instrument Connection diagram
** Not required for transmitters, switches, or any instrument other than a dial indicating gauge.
If you are viewing on a smaller screen or with screen zoom, please use
the horizontal scroll bar at the bottom of this table to see all information.
| SPECIFICATIONS |
| Nominal diameter |
ND 80 |
| Load cell housing |
Stainless Steel |
| Piston |
80 cm2 Stainless Steel |
| Max piston stroke |
0.02" (0.5 mm) |
| Connecting line |
Direct (standard)
Flexible tubing with spiral steel jacket - optional (max. length 2 m)
Capillary restrictor (optional) |
| Gauge fill fluid |
Glycerin
Others available upon request |
| Load cell fill |
Glycerine and water |
| Operating temperature |
-4 °F to 140 °F (-20 °C to 60 °C) |
| Ambient temperature |
-4 °F to 140 °F (-20 °C to 60 °C) |
