Corrosion Resistant Stainless Steel Pressure Gauges

REQUEST A QUOTE VIEW BY PART NUMBER

Download Literature

Oil & Gas

Water/
Wastewater

Corrosion-resistant fillable dry or liquid-filled gauge
Vacuum and compound ranges through 0 psi to 20,000 psi
1-1/2", 2-1/2", 4 and 6" gauge sizes
Stainless Steel case
316 Stainless Steel wetted parts
Ideal for applications including chemical processing, oil field & offshore, paper mills, agriculture plants, marine and water & wastewater

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SIZES	15	1-1/2"	25	2-1/2"	40*	4" *	60*	6" *
CASE TYPES	400	All SS, dry/fillable, bottom connection			411	All SS, dry, back connection
	401	All SS, dry, bottom connection			500	SS case, liquid filled, bottom connection
	402	SS case, solid front, dry, bottom connection			502	SS case, solid front, liquid filled, bottom connection
	410	All SS, dry/fillable, back connection			510	SS case, liquid filled, back connection
PRESSURE RANGES	30vac	-30 inHg to 0 psi ***	15	0 psi to 15 psi	600	0 psi to 600 psi	10000	0 psi to 10,000 psi
	30/15	-30 inHg to 0 to 15 psi ***	30	0 psi to 30 psi	800	0 psi to 800 psi	15000	0 psi to 15,000 psi
	30/30	-30 inHg to 0 to 30 psi ***	60	0 psi to 60 psi	1000	0 psi to 1,000 psi	20000	0 psi to 20,000 psi **
	30/60	-30 inHg to 0 to 60 psi ***	100	0 psi to 100 psi	1500	0 psi to 1,500 psi
	30/100	-30 inHg to 0 to 100 psi ***	160	0 psi to 160 psi	2000	0 psi to 2,000 psi
	30/160	-30 inHg to 0 to 160 psi ***	200	0 psi to 200 psi	3000	0 psi to 3,000 psi
	30/200	-30 inHg to 0 to 200 psi ***	300	0 psi to 300 psi	5000	0 psi to 5,000 psi
	30/300	-30 inHg to 0 to 300 psi ***	400	0 psi to 400 psi	6000	0 psi to 6,000 psi
SCALE OPTIONS	psi	psi single scale	psi/kPa	psi/kPa dual scale	psi/kg/cm²	psi/kg/cm² dual scale	psi/bar	psi/bar dual scale
CONNECTION SIZES	1/8	1/8" NPT	1/2	1/2" NPT	SST	SAE J1926-3:7/16-20 Adjustable
CONNECTION SIZES	1/4	1/4" NPT	9/16-18	9/16"-18 UNF 2B high pressure cone
OPTIONS	SSFF	Stainless Steel Front Flange	PMC	Steel Panel Mount Clamp	MIP	Maximum Indicating Pointer^†
	SSRF	Stainless Steel Rear Flange	SP	Set Pointer	AP	Adjustable Pointer
	SSFR	Stainless Steel Flange Ring	LM	Laser Marking	ST	Stainless Steel Tagging
	SSBU	Stainless Steel Bezel & U-clamp			ST5	Stainless Steel Threaded Orifice 0.5 mm
	SPMC	Stainless Steel Panel Mount Clamp			ST8	Stainless Steel Threaded Orifice 0.8 mm
	SG	Safety Glass Lens

Please consult your local NOSHOK Distributor or NOSHOK, Inc. for availability and delivery information.

Note: Cleaning for Oxygen Service (O2) is available only for dry or HL filled gauges

* On 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, and 60-510 models with 20,000 psi, the accuracy is ±1.5% or 1.6%
** 4" model only available with solid front case types
*** Ammonia gauges are available in these ranges. To order, add "— AMMONIA" at the end of the part number.
† GY40 fill is standard for liquid filled gauges

NOTES: See Standard Connection Sizes
Shaded portions of this part number example are not required unless a non-standard connection size or an option is needed.

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

	SERIES	SPECIFICATIONS
Pressure ranges	400/500 Series (all)	Vacuum and compound ranges through 0 psi to 20,000 psi
Accuracy	15-401, 15-411	±2.5% full scale
	25-400, 25-410, 25-500, 25-510	±1.6% full scale
	40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510	±1% full scale
Temperature ranges*	15-401, 15-411	Media -40 °F to 212 °F (-40 °C to 100 °C) Ambient -40 °F to 140 °F (-40 °C to 60 °C)
	25-400, 25-410, 40-400, 40-410, 60-400, 60-410	Media -40 °F to 392 °F (-40 °C to 200 °C) Ambient -40 °F to 140 °F (-40 °C to 60 °C)
	500 Series (all)	Media -4 °F to 212 °F (-20 °C to 100 °C) Glycerin fill -40 °F to 212 °F (-40 °C to 100 °C) Special fill Ambient -4 °F to 140 °F (-20 °C to 60 °C) Glycerin fill -40 °F to 140 °F (-40 °C to 60 °C) Special fill
Measuring element	15-401, 15-411, 25-400, 25-410, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510 (up to 600 psi)	316 stainless steel C-Type Bourdon tube
Measuring element	25-400, 25-410, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510 (greater than 600 psi)	Coiled safety tube
Connection	15-401, 15-411	1/8" NPT, 316 stainless steel
	25-400, 25-410, 25-500, 25-510	1/4" NPT, 316 stainless steel
	40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510	1/2" NPT, 316 stainless steel. 9/16" – 18 high pressure connections are standard on 0 - 30,000 psi and higher
Case	15-401, 15-411, 40-400, 40-410, 60-400, 60-410, 60-500, 60-510	304 stainless steel with safety relief plug
Case	25-400, 25-410, 25-500, 25-510, 40-500, 40-510	Polished 304 stainless steel with safety relief plug
Cover ring	15-401, 15-411, 25-400, 25-410, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510	Polished 304 stainless steel
Cover ring	60-400, 60-410, 60-500, 60-510	Polished 304 stainless steel bayonet ring
Lens	15-401, 15-411, 40-400, 40-410, 40-500, 40-510	Instrument glass
	25-400, 25-410, 25-500, 25-510	Trogamide
	60-400, 60-410, 60-500, 60-510	Laminated safety glass
Pointer	115-401, 15-411	Black finished aluminum
	25-400, 25-410, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510	Balanced aluminum, black finish
	60-400, 60-410, 60-500, 60.510	Balanced micro-adjustable aluminum, black finish
Dial	15-401, 15-411	Aluminum, white background with black scale. Single scale psi. UV resistant
Dial	25-400, 25-410, 25-500, 25-510, 40-400, 40-410, 40-500, 40-510, 60-400, 60-410, 60-500, 60-510	Aluminum, white background with black scale. UV resistant.
Movement	15-401, 15-411, 25-400, 25-410, 25-500, 25-510	Stainless steel with highly polished bearing surfaces
	40-400, 40-410, 40-500, 40-510	All stainless steel with internal zero stop and highly polished bearing surfaces
	60-400, 60-410, 60-500, 60-510	Stainless steel with highly polished bearing surfaces An internal zero stop is standard
Fill liquid**	25-500, 25-510, 40-500, 40-510, 60-500, 60-510	Glycerin

Working Pressure Limitations

Dynamic Pressure
The working pressure should be limited to 60% of the dial range.

Static Pressure
The working pressure, where no sharp fluctuations occur, should be limited to:
≤15,000 psi: 90% of the dial range
>15,000 psi: 75% of the dial range

Accuracy / Dial Configuration Applications Dimensions Download Data Sheet Frequently Asked Questions Reference Information Standard Gauge Connection Sizes User Manual Warranty Information

Options & Accessories

Installed Options & Accessories

AVAILABLE

10-32-UNF-2B (10-32)
Orifice - 316SS Threaded 0.8mm (ST8) - Standard
Orifice - 316SS Threaded 0.5mm (ST5)
Laser Marking (LM)
Stainless Steel Tagging (ST)

CERTIFICATES

Certified Calibration (CC), Vacuum through 15,000 psi
Cleaning for Oxygen Service (O2), Up to 1,000 psi
Cleaning for Oxygen Service (O2), 1,500 psi and up

Prop 65

WARNING:This product can expose you to chemicals including Lead and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Uninstalled Options & Accessories

Certificate of Cleaning (COCL)
Certificate of Conformance (COC)

Installed Options & Accessories

AVAILABLE

10-32-UNF-2B (10-32)
Orifice - 316SS Threaded 0.8mm (ST8) - Standard
Orifice - 316SS Threaded 0.5mm (ST5)
Laser Marking (LM)
Stainless Steel Tagging (ST)

CERTIFICATES

Certified Calibration (CC), Vacuum through 15,000 psi
Cleaning for Oxygen Service (O2), Up to 1,000 psi
Cleaning for Oxygen Service (O2), 1,500 psi and up

Prop 65

Uninstalled Options & Accessories

Certificate of Cleaning (COCL)
Certificate of Conformance (COC)

Installed Options & Accessories

AVAILABLE

Safety Glass Lens (SG)
Maximum Indicating Pointer (MIP)
Red Set Pointer (SP)
Increased Accuracy from 1.5% to 1.0% (IA)
10-32-UNF-2B (10-32)
Orifice - 316SS Threaded 0.8mm (ST8) - Standard
Orifice - 316SS Threaded 0.5mm (ST5)
Rubber Case Protectors (RCP)
Laser Marking (LM)
Stainless Steel Tagging (ST)

CONSULT FACTORY

304 SS Rear Flange (SSRF)

GAUGE FILL OPTIONS

Silicone (SL)
Halocarbon (HL)
-40 Degree Service (GY40)
Mineral Oil (MO)

CERTIFICATES

Certified Calibration (CC), Vacuum through 15,000 psi
Cleaning for Oxygen Service (O2), Up to 1,000 psi
Cleaning for Oxygen Service (O2), 1,500 psi and up

Prop 65

Uninstalled Options & Accessories

Steel Panel Mount Clamp (25-459-1-PMC)
304SS Panel Mount Clamp (25-459-1-SS-PMC)
304SS Front Flange (25-459-1-SS-FF)
304SS Flange Ring (25-459-1-SS-FR)
Rubber Case Protector (25-123459-0-RCP)
Certificate of Cleaning (COCL)
Certificate of Conformance (COC)

Installed Options & Accessories

AVAILABLE

Safety Glass Lens (SG)
Maximum Indicating Pointer (MIP)
Red Set Pointer (SP)
304 SS Front Flange (SSFF)
Flange Ring 304SS (SSFR)
304SS Panel Mount Clamp (SPMC)
Steel Panel Mount Clamp (PMC)
Increased Accuracy from 1.5% to 1.0% (IA)
10-32-UNF-2B (10-32)
Orifice - 316SS Threaded 0.8mm (ST8) - Standard
Orifice - 316SS Threaded 0.5mm (ST5)
Rubber Case Protectors (RCP)
Laser Marking (LM)
Stainless Steel Tagging (ST)

CONSULT FACTORY

304 SS Rear Flange (SSRF)

GAUGE FILL OPTIONS

Silicone (SL)
Halocarbon (HL)
-40 Degree Service (GY40)
Mineral Oil (MO)

CERTIFICATES

Certified Calibration (CC), Vacuum through 15,000 psi
Cleaning for Oxygen Service (O2), Up to 1,000 psi
Cleaning for Oxygen Service (O2), 1,500 psi and up

Prop 65

Uninstalled Options & Accessories

Steel Panel Mount Clamp (25-459-1-PMC)
304SS Panel Mount Clamp (25-459-1-SS-PMC)
304SS Front Flange (25-459-1-SS-FF)
304SS Flange Ring (25-459-1-SS-FR)
Rubber Case Protector (25-123459-1-RCP)
Certificate of Cleaning (COCL)
Certificate of Conformance (COC)

Installed Options & Accessories

AVAILABLE

Adjustable Pointer (AP)
Safety Glass Lens (SG)
Maximum Indicating Pointer (MIP)
Red Set Pointer (SP)
Magnetic Spring Contact, 4" 400 & 410 (MSCS)
304 SS Front Flange (SSFF)
304 SS Rear Flange (SSRF)
Increased Accuracy from 1.0% to 0.5% (IA)
10-32-UNF-2B (10-32)
Orifice - 316SS Threaded 0.8mm (ST8) - Standard
Orifice - 316SS Threaded 0.5mm (ST5)
Laser Marking (LM)
Rubber Case Protectors (RCP)
Stainless Steel Tagging (ST)

GAUGE FILL OPTIONS

Silicone (SL)
Halocarbon (HL)
-40 Degree Service (GY40)
Mineral Oil (MO)

CERTIFICATES

Certified Calibration (CC), Vacuum through 15,000 psi
Certified Calibration (CC), 20,000 psi
Cleaning for Oxygen Service (O2), Up to 1,000 psi
Cleaning for Oxygen Service (O2), 1,500 psi and up

Prop 65

Uninstalled Options & Accessories

Rubber Case Protector (40-123459-BLACK-RCP)
Certificate of Cleaning (COCL)
Certificate of Conformance (COC)

Installed Options & Accessories

AVAILABLE

Adjustable Pointer (AP)
Safety Glass Lens (SG)
Maximum Indicating Pointer (MIP)
Red Set Pointer (SP)
Magnetic Spring Contact, 4" 400 & 410 (MSCS)
304 SS Front Flange (SSFF)
304 SS Rear Flange (SSRF)
SS Bezel w/U-Clamp (SSBU)
Increased Accuracy from 1.0% to 0.5% (IA)
10-32-UNF-2B (10-32)
Orifice - 316SS Threaded 0.8mm (ST8) - Standard
Orifice - 316SS Threaded 0.5mm (ST5)
Laser Marking (LM)
Stainless Steel Tagging (ST)

GAUGE FILL OPTIONS

Silicone (SL)
Halocarbon (HL)
-40 Degree Service (GY40)
Mineral Oil (MO)

CERTIFICATES

Certified Calibration (CC), Vacuum through 15,000 psi
Certified Calibration (CC), 20,000 psi
Cleaning for Oxygen Service (O2), Up to 1,000 psi
Cleaning for Oxygen Service (O2), 1,500 psi and up

Prop 65

Uninstalled Options & Accessories

Rubber Case Protector (40-123459-BLACK-RCP)
Certificate of Cleaning (COCL)
Certificate of Conformance (COC)

Installed Options & Accessories

AVAILABLE

Adjustable Pointer (AP) - Standard
Safety Glass Lens (SG) - Standard
Maximum Indicating Pointer (MIP)
Red Set Pointer (SP)
304 SS Front Flange (SSFF)
304 SS Rear Flange (SSRF)
SS Bezel w/U-Clamp (SSBU)
Increased Accuracy from 1.0% to 0.5% (IA)
10-32-UNF-2B (10-32)
Orifice - 316SS Threaded 0.8mm (ST8) - Standard
Orifice - 316SS Threaded 0.5mm (ST5)
Laser Marking (LM)
Stainless Steel Tagging (ST)

GAUGE FILL OPTIONS

Silicone (SL)
Halocarbon (HL)
-40 Degree Service (GY40)
Mineral Oil (MO)

CERTIFICATES

Certified Calibration (CC), Vacuum through 15,000 psi
Certified Calibration (CC), 20,000 psi
Cleaning for Oxygen Service (O2), Up to 1,000 psi
Cleaning for Oxygen Service (O2), 1,500 psi and up

Prop 65

Uninstalled Options & Accessories

Certificate of Cleaning (COCL)
Certificate of Conformance (COC)

Installed Options & Accessories

AVAILABLE

Adjustable Pointer (AP)
Safety Glass Lens (SG)
Maximum Indicating Pointer (MIP)
Red Set Pointer (SP)
304 SS Front Flange (SSFF)
304 SS Rear Flange (SSRF)
SS Bezel w/U-Clamp (SSBU)
Increased Accuracy from 1.0% to 0.5% (IA)
10-32-UNF-2B (10-32)
Orifice - 316SS Threaded 0.8mm (ST8)
Orifice - 316SS Threaded 0.5mm (ST5)
Laser Marking (LM)
Stainless Steel Tagging (ST)

GAUGE FILL OPTIONS

Silicone (SL)
Halocarbon (HL)
-40 Degree Service (GY40)
Mineral Oil (MO)

CERTIFICATES

Certified Calibration (CC), Vacuum through 15,000 psi
Certified Calibration (CC), 20,000 psi
Cleaning for Oxygen Service (O2), Up to 1,000 psi
Cleaning for Oxygen Service (O2), 1,500 psi and up

Prop 65

Uninstalled Options & Accessories

Certificate of Cleaning (COCL)
Certificate of Conformance (COC)

Ammonia Refrigeration Gauges

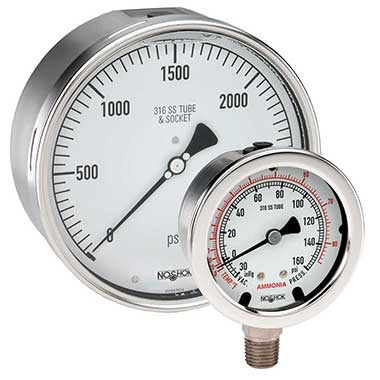

Ammonia and refrigeration gauges with dials reading in both pressure and temperature are available in 400/500 Series 2-1/2” and 4" sizes
Refrigeration gauges with dials reading in pressure and temperature are available in 300, 400 and 500 Series for R-12 and R-22

Assembly Option For Indication, Output, and Isolation/Bleed

NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.

For example, you can simplify your system with this easy-to-install solution from NOSHOK. Three simple components that require a single threaded connection in your piping system will provide local indication, analog output and block/isolate with bleed function.This product grouping is an ideal solution for a variety of applications including oil and gas, and is available in several high pressure ranges, including 5,000, 10,000 and 15,000 psi. Special design for Shale Gas applications.

This example represents a general solution; however, we offer a diverse range of gauges, transmitters and valves which are available with a variety of connection options and ranges to suit your needs. (Photo shows 40-400 Series Pressure Gauge (Local Indication), 621 Series Pressure Transmitter (Control Output), and 200 Series Multi-Port Valve (Block/Isolate & Bleed).

Diaphragm Seals

NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media.

View NOSHOK's Diaphragm Seal offering

Distribution Manifolds

NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.

View NOSHOK Distribution Manifolds

Magnetic Spring Contact Switch (MSCS) - 40-400 & 40-410 Series Only

Magnetic spring contact switches are available as a factory installed option on 40-400 Series and 40-410 Series
An excellent choice when an accurate pressure switch is required in addition to a reliable pressure gauge
Fully adjustable by the user
These switches are actuated by the pressure gauge pointer to provide accurate field adjustment
A removable adjustment key makes them tamper-proof
They operate with an extremely broad power supply, AC or DC up to 250V max. (30W 50 VA), allowing them to be used virtually anywhere in the world in addition to very remote applications with only DC battery pack power available
Standard units consist of (2) two magnetic spring switches; either one or both switches may be used:
- Switch (1) one is normally closed
- Switch (2) two is normally open with operation referenced on clockwise pointer motion
The lowest full scale pressure range this switch may be used on is 0 psi to 60 psi because of the increased load on the pointer and Bourdon tube
A mating 4-pin connector with 5' of 4-wire and color coded shielded cable is standard

Applications:

- Air compressors
- Gas compressors
- Hydraulic and pneumatic circuitry
- Die-cast machinery
- Plastic injection molding machinery

Click here for specifications

Wiring and terminal location

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Metric Dials And Customized Special Dials

Dual scale metric dials in psi/bar, psi/kPa and psi/kg/cm2
Other scales are available for specific sizes and ranges, such as single scale bar and kPa, refrigerant scales and altitude scales
Customized special dials such as non-standard metric scale, tons of ram, lbs. of force, etc. are available in small quantities (as few as one piece) on some NOSHOK gauges

Please consult the factory for availability.

Pressure Gauge Fill Options

Pressure Snubbers – Piston Type

Resist clogging and are self-cleaning
Five different sized pistons included with each snubber to ensure the correct amount of snubbing for virutally every application
Available in Brass and 316 Stainless Steel in 1/4" NPT, 1/2" NPT or SAE J1926-3: 7/16-20
Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2"

Specifications

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Pressure Snubbers – Sintered Type

Cost effective solution to protect expensive instrumentation
Increases gauge readability by smoothing out pressure surges, pulsations and spikes
5 basic elements available for each snubber to accommodate specific application needs
Snubbing action achieved by utilizing a corrosion resistant 316 Stainless Steel sintered porous element
Exotic materials or intermediate disc grades available
Provides long service life with no moving parts to wear out
Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2

Specifications

Dimensions

Replacement Disc Options

Refrigeration Gauges With Dials Reading in Pressure and Temperature

Refrigeration gauges with dials reading in pressure and temperature are available in NOSHOK 300, 400 and 500 Series Pressure Gauges for R-12 and R-22

Steam Syphons

Protect the instrument from the damaging effects of high temperature steam
Recommended for use in all steam applications
Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi @ 850 ºF

Specifications

Dimensions

Steam Syphons Temperature 1/4" NPT vs. Pressure charts

Steam Syphons Temperature 1/2" NPT vs. Pressure charts

Swivel Adaptors

Temperature ratings: 15,000 psi @ 200 °F and 3,000 psi @ 1,000 °F
Used with gauges and gauge valves to adjust the line of sight
Rotates 360° to allow the connected instrument to be positioned in the desired direction
The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut
All 316 Stainless Steel construction
Standard with 1/2" NPT male process – 1/2" NPT female instrument connections
Also available with 1/4" NPT connections, same specifications apply
Weight approximately 0.8 lb.

Swivel Adaptor Dimensions
