Measurement Solutions For The Food & Beverage Industry

FOOD PROCESSING | BEVERAGE | DAIRY | SILO & TANK LEVEL
Contact Our Specialist For Your Custom Solution

NOSHOK provides Measurement Solutions designed specifically for the food and beverage industry to easily integrate into your system with no adaptors, and deliver reliable performance with active temperature compensation for fast, accurate readings that help prevent tank overflow.

NOSHOK's instrumentation for the food & beverage industry offers many competitive, money-saving advantages that deliver superior performance, including exclusive design benefits, 3A certification and Hart® options, multiple connection options and a 3-year warranty.

Learn more about the technological advantages of NOSHOK's Pressure & Level Transmitters for the Food & Beverage industry below, as well as the rest of our product portfolio that addresses this market.

Download Literature

NOSHOK Transmitter AdvantagesFlyer
NOSHOK Measurement Solutions For The Food & Beverage Industry Brochure
NOSHOK Measurement Solutions For The Food & Beverage Value Message Flyer

NOSHOK is a member and actively supports

NOSHOK Has Acquired
Skip To Section
9 KEY ADVANTAGES OVER COMPETITORS' TRANSMITTERS Intelligent Silo & Tank Level Transmitter Intelligent Pressure & Level Transmitter “Snorkel” Pressure & Level Transmitter Fractional Sanitary Pressure Gauges Heavy-Duty Sanitary Pressure Gauges ASME-BPE Sanitary Clamp Pressure Transmitters 3A Sanitary Tri-Clamp® Bimetal Thermometers Sanitary, Clamped-Style Diaphragm Seals
-->
20 Series
Intelligent Silo & Tank Level Sanitary Pressure Transmitter
  • NOSHOK can provide every connection available with no adaptors needed
  • Vent plug located on the back of the sensor head is easily popped out and replaced
  • CIP & SIP
25 Series
Intelligent
Pressure & Level Transmitter
  • Tri-Clamp® connection
  • Ideal for balance tanks as the active temperature compensation provides very fast readings and reduces the potential for overflows
  • CIP & SIP
30 Series
"SNORKEL"
Pressure & Level Transmitter
  • Developed for wash down applications and where space restricts easy adjustment
  • Electronics remotely mounted for convenience and safety
  • CIP & SIP
Custom cable lengths
Custom engineered
process connection solutions
Optional
diaphragm materials

Intelligent Tank & Silo Pressure Transmitters
FOR THE FOOD & BEVERAGE INDUSTRY

9 Key Advantages

Exclusive design positions pressure & temperature sensors close to the media directly behind the diaphragm
Allows active and rapid temperature compensation which provides faster, more accurate readings
1
Unique
compact diaphragm
Provides increased strength and durability over larger diaphragms, delivering long life and reducing potential for damage
2
Turn down ratios
up to 10:1
Allow more flexibility in ranges and reduces required inventory
3
360°
rotatable display
Provides flexibility and readability in multiple mounting positions
4
Accuracy 0.1%
based on adjusted span, not full scale
Provides higher accuracy regardless of the range selected
5
Easy programming
via on-board display
No reference pressure is required for range adjustment
6
All spud process
connections available
(Anderson- Negele, E+H, KING-GAGE, Rosemount, Tank Mate)
Direct fit to the shell installed, no adaptors or equipment adjustments required
7
The same programming
is used for all of these
NOSHOK transmitters
No additional training or potentiometers required
8
All Stainless Steel
construction,
including housing
Durable, hygienic, 3A Certified
9

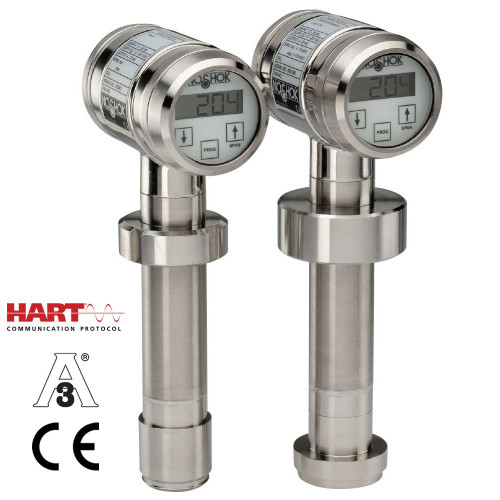

20 Series Intelligent Silo & Tank Level Sanitary Pressure Transmitters
  • Ranges from 16 inH2O to 58 psig (1,600 inH2O)
  • Overlap in ranges to allow higher proof pressure when required
  • Programming via standard onboard display
  • Accuracy 0.1% of adjusted span
  • Active temperature compensation
  • 10:1 turn down
  • Hart® protocol available
  • Polished Stainless Steel housing
  • Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
  • 360° rotatable display
  • 3A Certified
  • Food, beverage & dairy specific process connections

Applications

  • Silo & tank level
  • Food & beverage
  • Dairy
  • Anhydrous Milk Fat Processing
More Information REQUEST A QUOTE

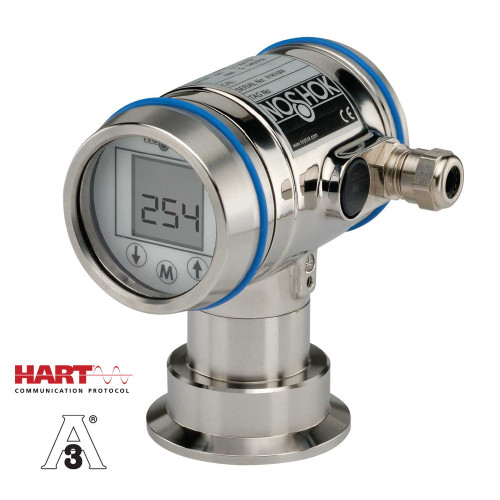

25 Series Intelligent Pressure & Level Transmitter
  • Ranges from -160 inH20 vac to 1,160 psig
  • Programming via standard onboard display
  • Accuracy 0.2% of adjusted span
  • Active temperature compensation
  • 4:1 turn down
  • Hart® protocol available
  • Polished Stainless Steel housing
  • Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
  • Compact, robust flush diaphragms
  • 3A Certified

Applications

  • Food & beverage
  • Dairy
  • Anhydrous Milk Fat Processing
More Information REQUEST A QUOTE

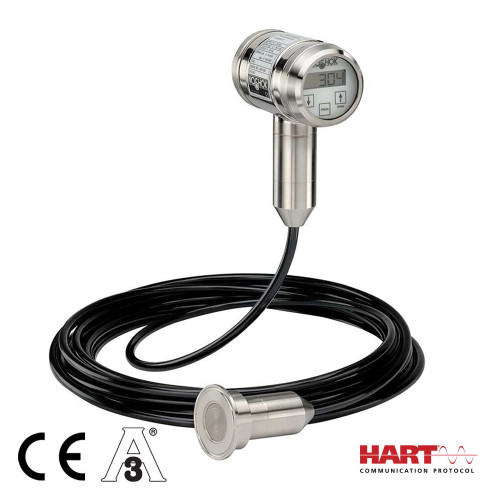

30 Series “SNORKEL” Pressure & Level Transmitter
  • Developed for wash down applications and where space restricts easy adjustment
  • Electronics to be remotely mounted in a safe and convenient location
  • Electrical cable with vent connects the sensor to the electronics housing, no fill fluid
  • Flush diaphragm technology
  • Compact, robust diaphragm with matching back up system to minimize the amount of fill fluid and reduce potential for damage
  • Diaphragms are laser welded and helium leak tested
  • Sensors close to the media
  • Pressure and temperature sensors are mounted directly behind the diaphragm which minimizes fill fluid and allows the use of a smaller more robust diaphragm
  • Provides active temperature compensation at the point of measurement to minimize temperature and position error

Series Options

300 Series

  • Fixed range with vented cable
  • Accuracy 0.2% adjusted span
  • 10:1 turn down
  • Hart® protocol available for range adjustment

302 Series

  • Range adjustment via zero/span potentiometers in remote-mounted all polished
  • Stainless Steel housing
  • Accuracy 0.2% adjusted span
  • 4:1 turn down

304 Series

  • Includes onboard display for easy programming and range adjustment
  • Polished Stainless Steel housing
  • Accuracy 0.1% adjusted span
  • 10:1 turn down
  • Hart® protocol available

Applications

  • Tank level measurement
  • Food & beverage
  • Dairy
  • Breweries
More Information REQUEST A QUOTE
10 Series Fractional Sanitary Pressure Gauges
  • Compact size for space restricted applications
  • Wide variety of ranges from vacuum to 600 psi
  • Process temperatures up to 300 °F (150 °C)
  • Gauge size 2″, camp size 3/4″
  • ASME-BPE Sanitary Clamp housing and diaphragm are constructed from 316L Stainless Steel with wetted surface and electropolished to Ra25 or better
More Information REQUEST A QUOTE
10 Series Heavy-Duty Sanitary Pressure Gauges
  • Ranges from 30″ inHg to 600 psi
  • 2-1/2 and 4″ sizes available, with 1-1/2 or 2″ ASME-BPE Sanitary Clamp process connections
  • Electropolished stainless steel case
More Information REQUEST A QUOTE
11 Series ASME-BPE Sanitary Pressure Transmitters
  • Designed for heavy-duty applications where high accuracy, shock resistance and durability are required
  • Standard ranges from vacuum to 400 psi
  • Diffused semi-conductor or sputtered thin film sensor for maximum stability
  • 1-1/2″ or 2″ ASME-BPE Sanitary Clamp connections with integral cooling extension allows for higher media temperatures
  • 316L stainless steel housing welded to ASME-BPE Sanitary Clamp process connection for greater strength and integrity
  • ASME-BPE housing and diaphragm are constructed from 316L Stainless Steel with wetted surfaces electropolished to Ra25 or better
More Information REQUEST A QUOTE
300 Series 3A Sanitary Tri-Clamp® Bimetal Thermometers
  • Designed for heavy-duty applications where high accuracy, shock resistance and durability are required
  • Standard ranges from vacuum to 400 psi
  • Diffused semi-conductor or sputtered thin film sensor for maximum stability
  • 1-1/2″ or 2″ ASME-BPE Sanitary Clamp connections with integral cooling extension allows for higher media temperatures
  • 316L stainless steel housing welded to ASME-BPE Sanitary Clamp process connection for greater strength and integrity
  • ASME-BPE housing and diaphragm are constructed from 316L Stainless Steel with wetted surfaces electropolished to Ra25 or better
More Information REQUEST A QUOTE
Type 12 Sanitary, Clamped-Style Diaphragm Seals
  • Flush mount diaphragm with all welded construction
  • Minimum pressure 0 to 30 psi
  • Accommodates process connection pipes from 1-1/2″ through 3″ sizes
  • Accommodates 2-1/2″, 4″, 4-1/2″ and 6″ gauge sizes
  • Wetted materials polished to Ra32 or better
More Information REQUEST A QUOTE
