| SERIES | IDE20 | |||||
| LOCATION RATINGS | G | General location rated | H | Hazardous location rated | ||
| DISPLAY TYPE | D | Decimal Display | DB | Decimal display with bar graph | ||
| HB | Height Display with bar graph | |||||
| OPTION CARDS | 0 | 2 Open Collectors | 2 | 2 Open Collectors & 4-20 mA output | ||
| 1 | 2 Open Collectors & 2 Solid-state Relays | 3 | 2 Open Collectors, 2 Solid-state Relays, & 4-20 mA output | |||
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

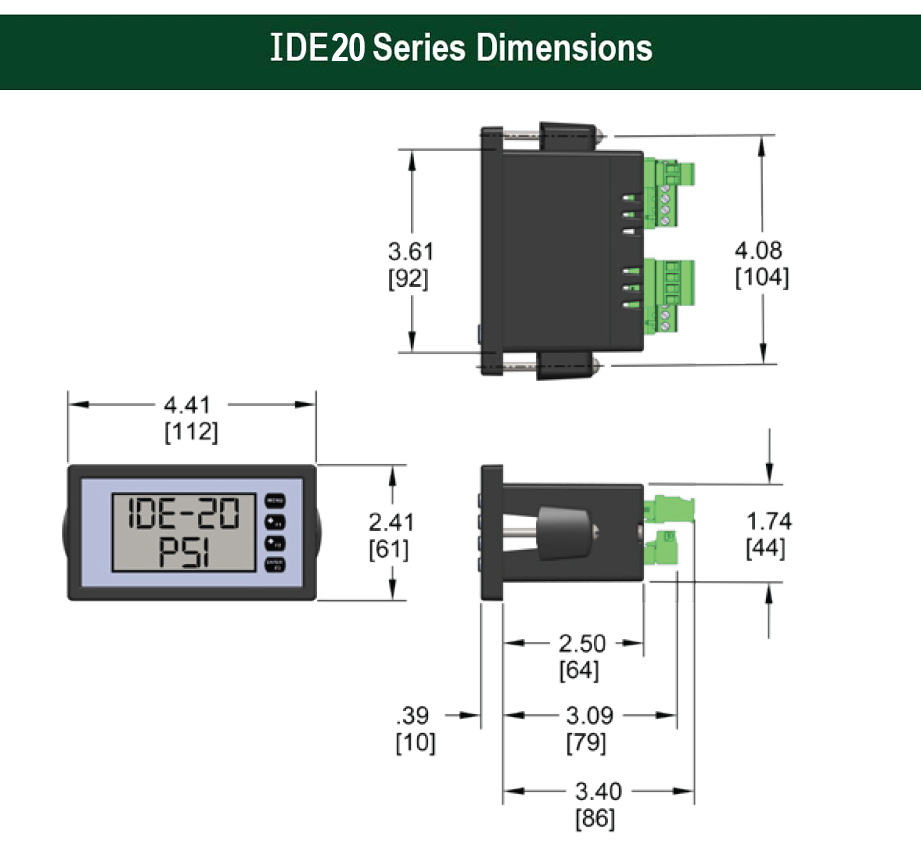

| SPECIFICATIONS* | ||
| Input signals | 4 mA to 20 mA | |
| Backlight | Powered by 4 mA to 20 mA loop, intensity varies with signal level | |
| Process display | Top: 5 digits, 0.7" (17.8 mm) and Bottom: 8 digits, 0.4" (10.2 mm) | |
| Key pad | 4 front panel buttons | |
| Hazardous location ratings | See user manual | |
| Electrical connection | Screw terminals at back of case | |
| Accuracy | ±0.02% of span ±1 count | |
| Humidity | 0 to 90% non-condensing | |
| Altitude | Up to 2,000 meters | |
| Update rate | Ambient > -10 °C: Ambient = -20 °C: From -20 °C to -40 °C: The update rate slows down 1 second for every -2°C (e.g. at -24°C, 1 update/4 seconds) |
1 Update/Second 1 Update/2 Second |
| Temperature ranges | Operating General location: Hazardous location: Storage |
-40 °F to 167 °F (-40 °C to 75 °C) -40 °F to 158 °F (-40 °C to 70 °C) -40 °F to 185 °F (-40 °C to 85 °C) |
| Electromagnetic rating | See user manual for details | |
| Environmental rating | IP65, NEMA 4X (front panel only) | |
| Filtering | 1 to 16 seconds, selectable | |
| Min/Max reading | Captures and stores min/max measurement | |
| Linearization | 2 to 32 points, selectable | |
| Voltage drop | Without backlight: With backlight: |
1.5 Vdc max 4.5 Vdc max |
| Input overload | Over current protection to 1 A max Over voltage protection to 30 Vdc max |
|
| Normal mode rejection | > 64 dB at 50/60 Hz | |
| Temperature drift | 25 PPM/°C from -40 °C to 75 °C ambient | |
| Weight | 8.7 oz (247 g) with option board | |
| Option cards | 2 Open Collectors 2 Open Collectors & 2 Solid-State Relays 2 Open Collectors & 4-20 mA output 2 Open Collectors, 2 Solid-State Relays & 4-20 mA output |
|
| * Additional specifications, see user manual | ||
