A:

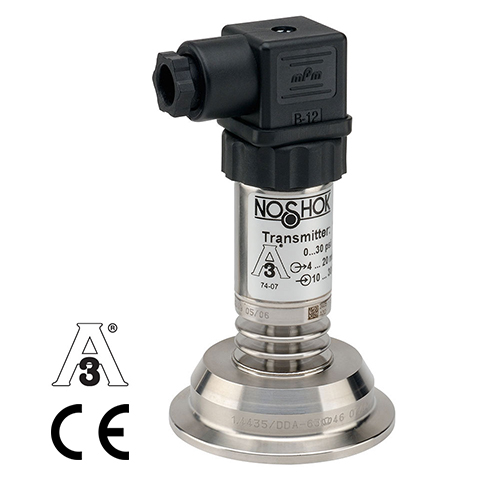

Sanitary applications demand crevice-free wetted surfaces, hygienic connections, and materials that meet standards such as 3-A or ASME-BPE. NOSHOK offers intelligent tank and silo transmitters with polished 316L Stainless Steel housings which are engineered specifically for these hygienic requirements.

A:

During CIP and SIP, instruments are exposed to hot caustic solutions, steam, and rapid temperature swings, so seals, diaphragms, and electronics must be designed for repeated thermal cycling. Modern sanitary transmitters place pressure and temperature sensors directly behind a compact flush diaphragm to provide active temperature compensation and maintain accuracy through cleaning cycles.

A:

Flush diaphragms eliminate dead legs where product can stagnate, which improves cleanability and reduces contamination risk. In balance tanks, compact flush-diaphragm transmitters with fast temperature compensation also give rapid, stable readings that help prevent overflows and low-level trips.

A:

Using standardized Tri-Clamp or ASME-BPE clamp connections allows instruments to be swapped without adaptors, simplifying maintenance, cleaning validation, and compliance documentation. NOSHOK sanitary transmitters are offered with a broad range of hygienic clamp and spud-style connections, so they integrate easily into existing food, beverage, and dairy vessels with no adaptors required.

A:

For suction protection, place a point level device just above the minimum safe liquid height and use a continuous transmitter to control normal start/stop levels. For transfer or filling applications, a high level switch near the top of the vessel provides a hard overfill limit that backs up the continuous level signal.

A:

HART® is a digital communication signal superimposed on the 4?20 mA loop, allowing you to remotely range, trim, and diagnose transmitters over the same two wires. Level and pressure devices often offer optional HART®, which lets you access extended configuration and status information without removing the instrument from service.

A:

A transmitter with a 10:1 turndown can be configured for a wide variety of spans, so one model can cover several tank heights or product densities. Intelligent sanitary transmitters use this capability to reduce spare-parts inventory while still maintaining accuracy on the adjusted span.

A:

A rotatable, backlit display allows operators to instantly read process variables (like tank volume, height, or percentage) and configure device settings in the field, even in tight installations.

A:

When a device's stated accuracy is tied to the adjusted span rather than full scale, you retain high accuracy even after narrowing the range in the field. This is especially beneficial in food and beverage tanks where working levels may be only a fraction of the sensor's maximum rating.

A:

By continuously measuring process temperature at the diaphragm and applying compensation in real time, the transmitter minimizes temperature-induced errors in the sensor and fill fluid. This technology keeps readings stable during CIP/SIP, batch heating, or cold-start conditions.

A:

Hydrostatic transmitters are ideal for continuous level measurement in wells, lift stations, and tanks where the media is relatively clean. Vibrating fork switches are excellent for high or low point-level protection and pump run-dry protection when you need simple binary level alarms. Radar level transmitters provide continuous, non-contact level measurement that excels in applications with varying dielectric properties, agitation, or where you want to avoid any wetted sensor in the tank.

A:

In food and beverage measurement, hygienic and sanitary are closely related but not always identical. Sanitary often implies conformity with specific regulations or standards such as 3-A or ASME-BPE clamp designs, while hygienic is a broader term describing designs that are cleanable, drainable, and resist product buildup. In practice, many engineers and OEMs use the terms interchangeably when referring to level and pressure instruments that feature polished stainless steel wetted surfaces, crevice free process connections, and CIP/SIP ready construction.

A: Sanitary level transmitters provide repeatable hydrostatic level measurement that helps processors accurately track inventory in storage tanks and silos, compare input versus throughput, and reduce product loss from overfills or poor visibility. When integrated into plant control and alarm systems, they also support automated responses that help prevent spills, waste, and unplanned downtime.

A: Direct-fit sanitary transmitters reduce retrofit complexity because they can match existing spud and shell connections without requiring adaptors or equipment changes to the vessel. That shortens installation time, reduces hygienic risk at the connection point, and makes it easier to standardize upgrades across mixed tank populations in a live production plant.

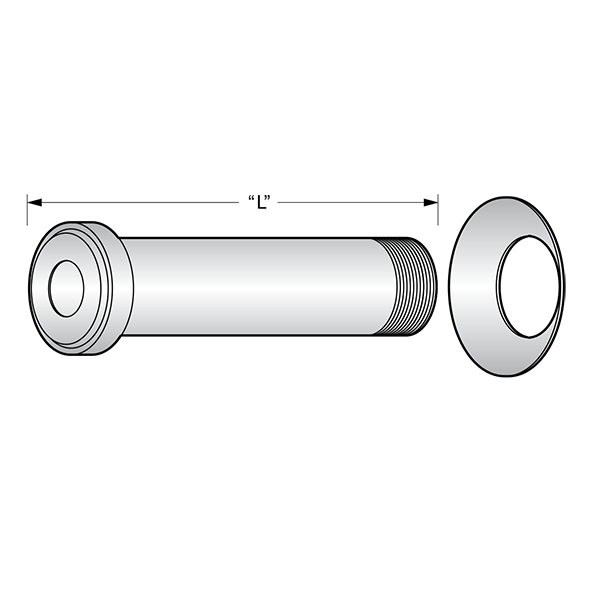

A: Insulated tanks require a measurement solution that keeps the sensing diaphragm flush with the product side while allowing the transmitter body to mount correctly outside the insulated wall. NOSHOK addresses this by having all the process connections that exist that are installed on insulated tanks. NOSHOK also offers KING-GAGE flush weld tank shells that are offered in different lengths to match single-wall and insulated tank constructions.

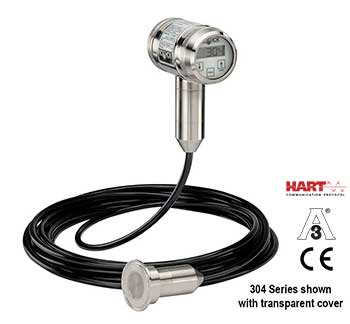

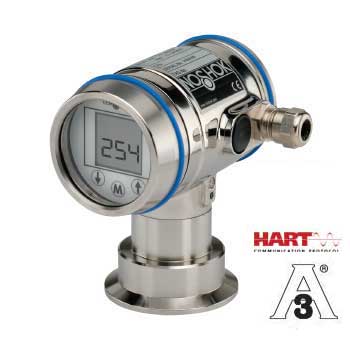

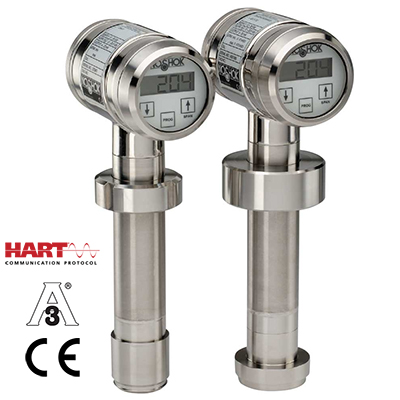

A: NOSHOK sanitary transmitters provide standard process-control outputs- most commonly 4–20 mA, with optional HART® digital communication- that wire directly into PLC analog input cards, remote I/O, or hybrid purge/level controllers. Once the PLC is reading the signal, those same tags are exposed to SCADA and MES for alarming, trending, inventory management, and batch/traceability functions in food & beverage plants. The 20, 25, and 30 Series sanitary transmitters are designed to simplify this integration: they offer easy range configuration via an onboard display (no reference pressure needed), turndown up to 10:1 with accuracy specified on adjusted span, and optional HART® for remote configuration and diagnostics over the same 4–20 mA loop. Their sanitary process connections (direct-fit to common tank shells and Tri-Clamp® fittings), active temperature compensation, and CIP/SIP-capable stainless construction ensure that the measurements feeding PLC/SCADA/MES reflect true process conditions while meeting modern food and dairy hygienic requirements.

A: By providing continuous level that incorporates active temperature compensation. This compensation detects whether the media is hot or cold, and enables the transmitter to adjust its level reading that is affected by the temperature. The pressure data is then sent to plant control systems, intelligent sanitary transmitters enable alarms, pump stop logic, and other automatic actions before a tank reaches an unsafe fill condition. This improves operator response time while protecting product, surrounding equipment, and sanitation conditions in the processing area.

A: Meeting the requirements for 3-A indicates that the instrument is designed for hygienic service, with features such as smooth wetted surfaces, cleanable geometries, and sanitary materials suitable for food, beverage, and dairy processing. For processors, that means the instrument is better aligned with hygienic design expectations for contamination prevention, cleanability, and repeatable sanitation performance.

A: The terms are often used interchangeably in day-to-day conversation, but sanitary usually points more directly to compliance with recognized food and dairy design standards, while hygienic is the broader concept of being cleanable, drainable, and contamination-resistant. In practice, NOSHOK sanitary instruments are hygienic by design, but the term sanitary better communicates that they are engineered for regulated food, beverage, and dairy service.

A: Flush diaphragms are essential in food and beverage processing because they minimize ledges, pockets, and dead spaces where product can collect, spoil, or interfere with cleaning, while also helping prevent contaminant and moisture ingress at the process connection. They are especially important in viscous, sticky, or high-value products because they improve cleanability, reduce buildup, limit ingress risks, and maintain measurement accuracy during both production and CIP/SIP cycles.

A: Instruments that remain in place during CIP/SIP cycles must tolerate high temperatures, thermal shock, and caustic cleaning chemistry - cycle after cycle - without drifting, damaging seals, or compromising hygienic integrity. NOSHOK sanitary transmitters are engineered for these conditions with pressure and temperature sensors mounted directly behind the diaphragm, providing fast, active temperature compensation at the point of measurement so readings remain stable through hot cleaning transitions and recover quickly afterward. This rapid stabilization helps operators trust the data sooner after CIP/SIP, shortening restart times, improving process visibility during ramp-up, and reducing nuisance alarms or conservative manual interventions caused by slow sensor response.

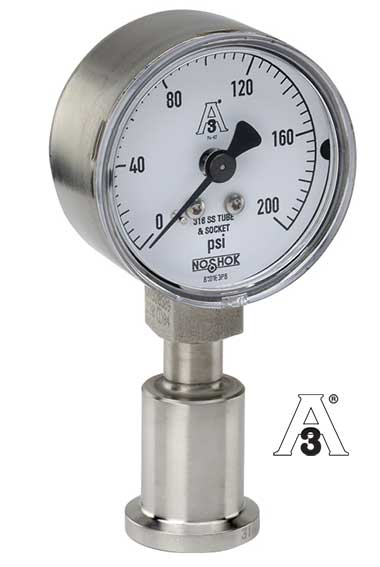

A: Selecting the right materials of construction and surface finishes is critical because instrumentation sits directly in the product path and must withstand repeated exposure to food media, cleaning chemicals, and high temperatures without corroding, leaching, or trapping residue. Polished Stainless Steel housings and electropolished wetted surfaces, like those used on NOSHOK sanitary gauges and transmitters, enhance cleanability, reduce product retention and biofilm risk, resist corrosion in aggressive washdown environments, and help maintain hygienic integrity and measurement stability over many CIP/SIP cycles. NOSHOK also offers other diaphragm materials, such as Hastelloy C, that can combat caustic solutions that can are harmful to Stainless Steel.

A: Vacuum directly affects boiling temperature and evaporation behavior, so inaccurate pressure measurement can lead to inconsistent concentration, energy inefficiency, or product quality variation. Reliable vacuum instrumentation also helps protect evaporator vessels and supporting piping while giving operators clearer insight into crystallization, deaeration, and downstream milk-fat treatment steps.

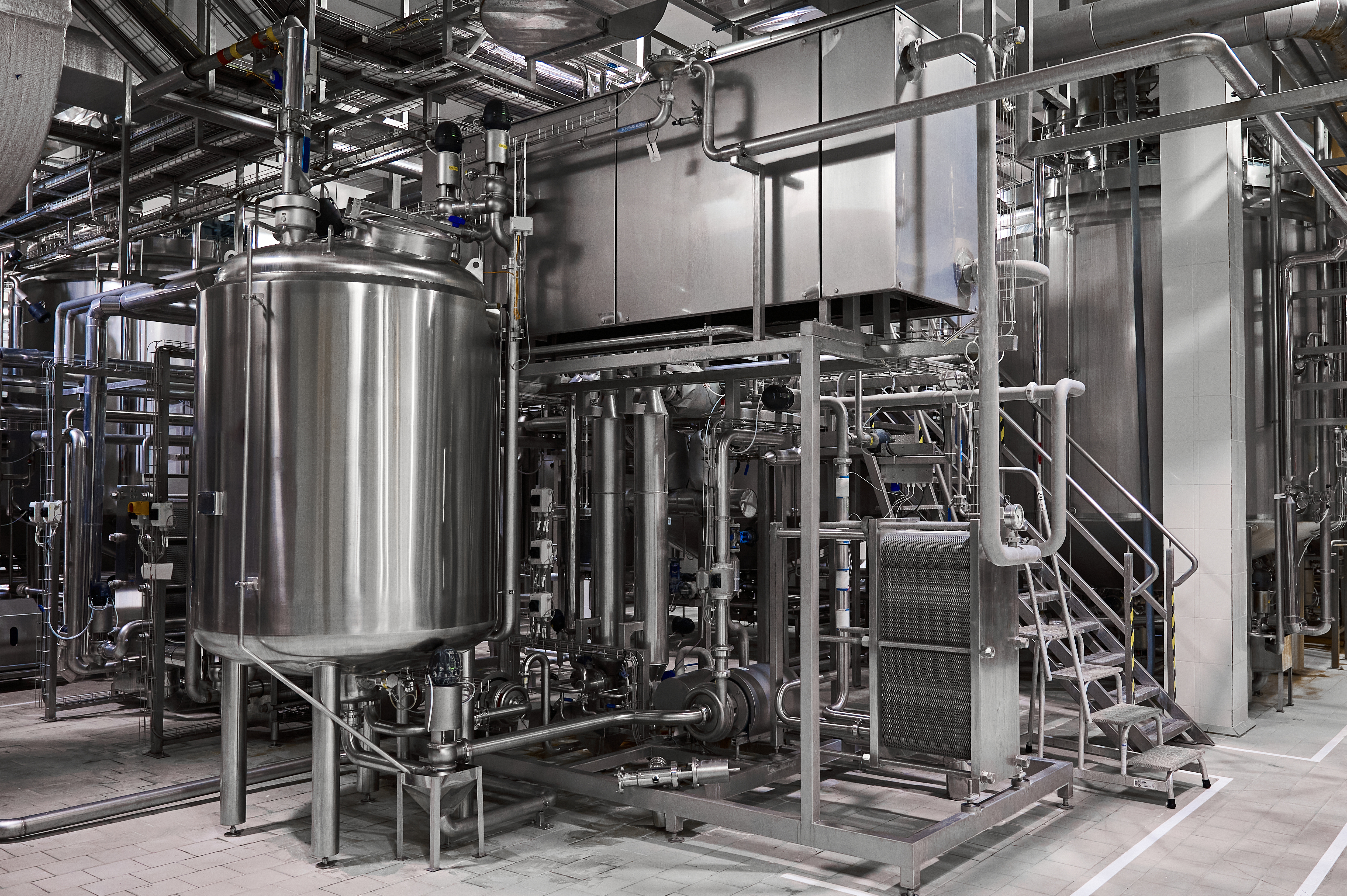

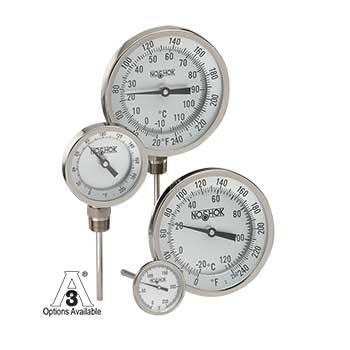

A: UHT systems rely on precise pressure and temperature measurement across heaters, coolers, product lines, and hold sections to maintain the correct thermal profile and protect product quality. Sanitary transmitters, temperature transmitters, and local thermometers all play a role in verifying that the process achieves microbial safety while limiting flavor damage, fouling, and thermal overstress.

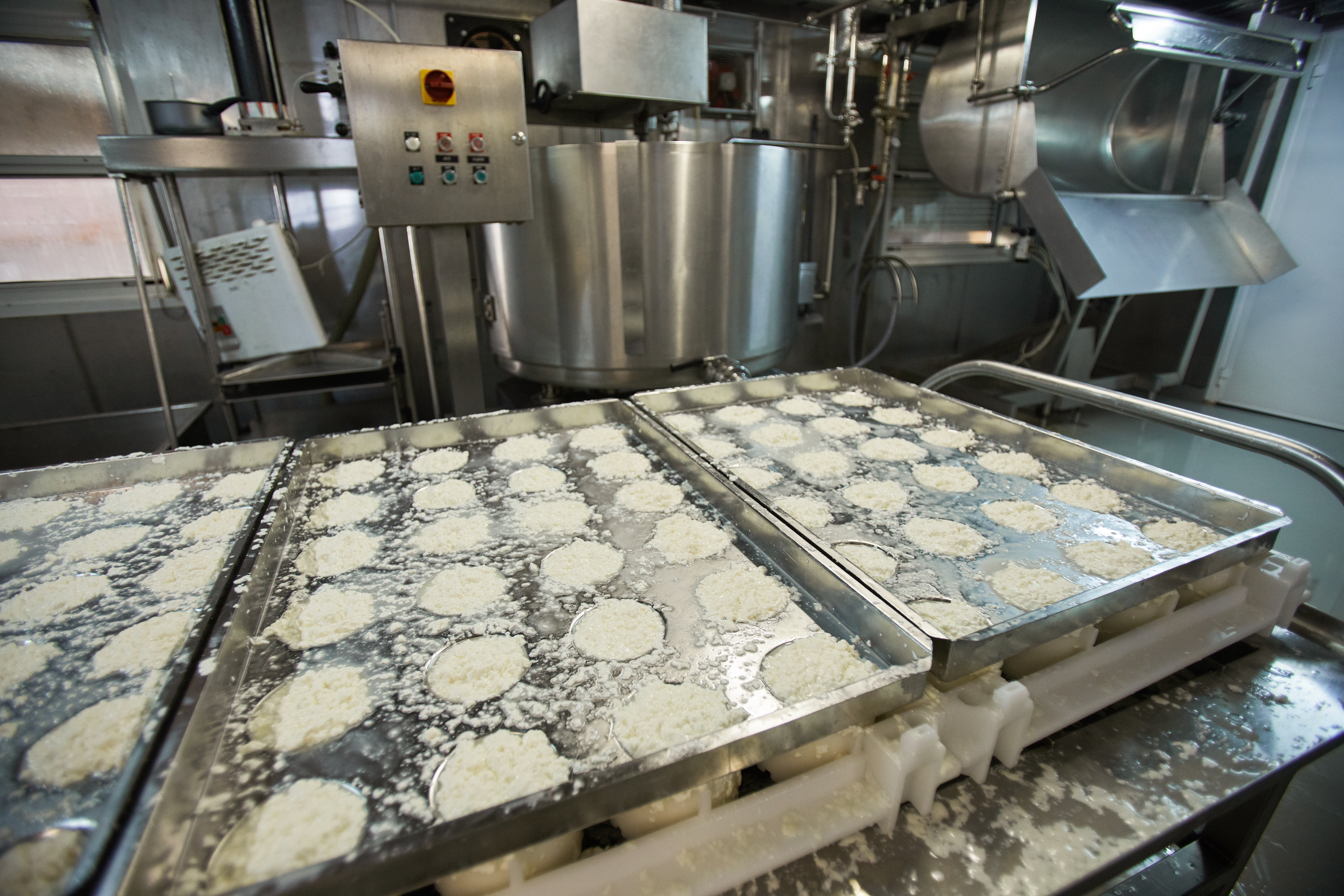

A: In cheese brining, pressure, level, and temperature data help maintain stable brine depth, reliable circulation, proper salt uptake, and consistent cooling conditions. Accurate measurements also support automated control of pumps, valves, and chillers so cheese moves through the flume consistently without piling, stalling, or drifting outside the desired brining conditions.

A: Cheese brine can be highly corrosive because of its chloride content, so wetted materials must be chosen carefully to avoid premature corrosion and drift. NOSHOK addresses this with optional wetted materials such as Titanium, Hastelloy C, or Tantalum for brine-related pressure measurement points where standard Stainless solutions may not provide adequate life.

A: HART® protocol combines a digital communication layer with the standard 4–20 mA signal, allowing processors to keep their familiar analog control architecture while adding remote configuration, diagnostics, and advanced setup capability. In practice, that supports faster commissioning, easier range changes, and better maintenance visibility across tanks, silos, and sanitary process lines.

A: High turndown lets one transmitter family cover multiple ranges and tank geometries, which helps reduce inventory and standardize instrumentation across a plant. Accuracy based on adjusted span is especially valuable because it maintains better measurement performance after the device is ranged for a specific vessel, instead of tying accuracy only to full-scale limits that may be much larger than the working process range.

A: Sanitary electronic pressure and level transmitters are the primary choice when you need high-accuracy, fully integrated measurement tied directly into PLCs and SCADA, especially on product-contact tanks and hygienic process lines where 3-A/ASME-BPE compliance, CIP/SIP capability, and active temperature compensation are critical. KING-GAGE pneumatic column indicators and bubbler-based systems, by contrast, remain a strong option for legacy infrastructure or where simplicity, safety, and remote measurement are top priorities-for example on utility or non-critical tanks, in harsh or classified areas, or wherever you want a non-electronic sensing point in the vessel with a pneumatic signal driving a local mechanical column indicator.
