Whether you are managing municipal drinking water, industrial wastewater, or high-solids sludge streams, NOSHOK provides application-focused solutions that address the unique process challenges involving corrosive chemicals, abrasive media, and plugging.
Our electronic pressure and level instrumentation helps operators quickly identify existing or potential challenges in the process that can be tied into pump protection logic and SCADA systems to automate alarms and shutdowns. From non-metallic diaphragm seal assemblies on sodium hypochlorite feed lines to cage-protected submersible level transmitters in lift stations, NOSHOK offers a single-source solution that reduces leak paths, simplifies installation, and extends service life.
Download Literature and view official NOSHOK videos
In chemical feed rooms, operators need accurate feed pressure indication and reliable pump protection to prevent leaks, over‑pressure events, and uncontrolled chemical discharge.
NOSHOK’s proven application-focused assemblies combine a corrosion‑resistant non‑metallic diaphragm seal with an electronic indicating pressure transmitters/switch to replace bulky analog gauge/switch assemblies with a lighter, more reliable, single-connection package. This streamlined solution significantly reduces possible leak paths on PVC or plastic piping, improves measurement accuracy, and extends instrument life in corrosive disinfectant service.
| Challenge | NOSHOK Solution | Purpose |
|---|---|---|
| Protecting the integrity of the process and preventing leaks on sodium hypochlorite feed lines in the feed room at a water treatment plant | Electronic Pressure Transmitter/Switch available with IO Link paired with an all non‑metallic PTFE diaphragm seal |
Provides accurate local (LED) indication and electronic output (4 to 20mA) in a compact, lightweight package that reduces leak paths and mechanical stress on PVC piping while protecting feed pumps. Optional dual alarms are available. |
| Less accurate, maintenance-intensive mechanical gauge and switch assemblies using a legacy analog gauge with diaphragm seal and separate mechanical switch | Electronic Pressure Transmitter/Switch available with IO Link used as a pump protection control device |
Delivers highly repeatable measurement and switching with no moving parts to wear out, extending service life and improving reliability over mechanical systems. |
| Difficult integration of chemical feed pump skid instrumentation into existing AC control panels | Electronic Pressure Transmitter/Switch used with a power supply and Form C relays |
Easily integrates into existing control architectures, providing configurable alarms and status feedback to the plant. Control panel or SCADA system. |

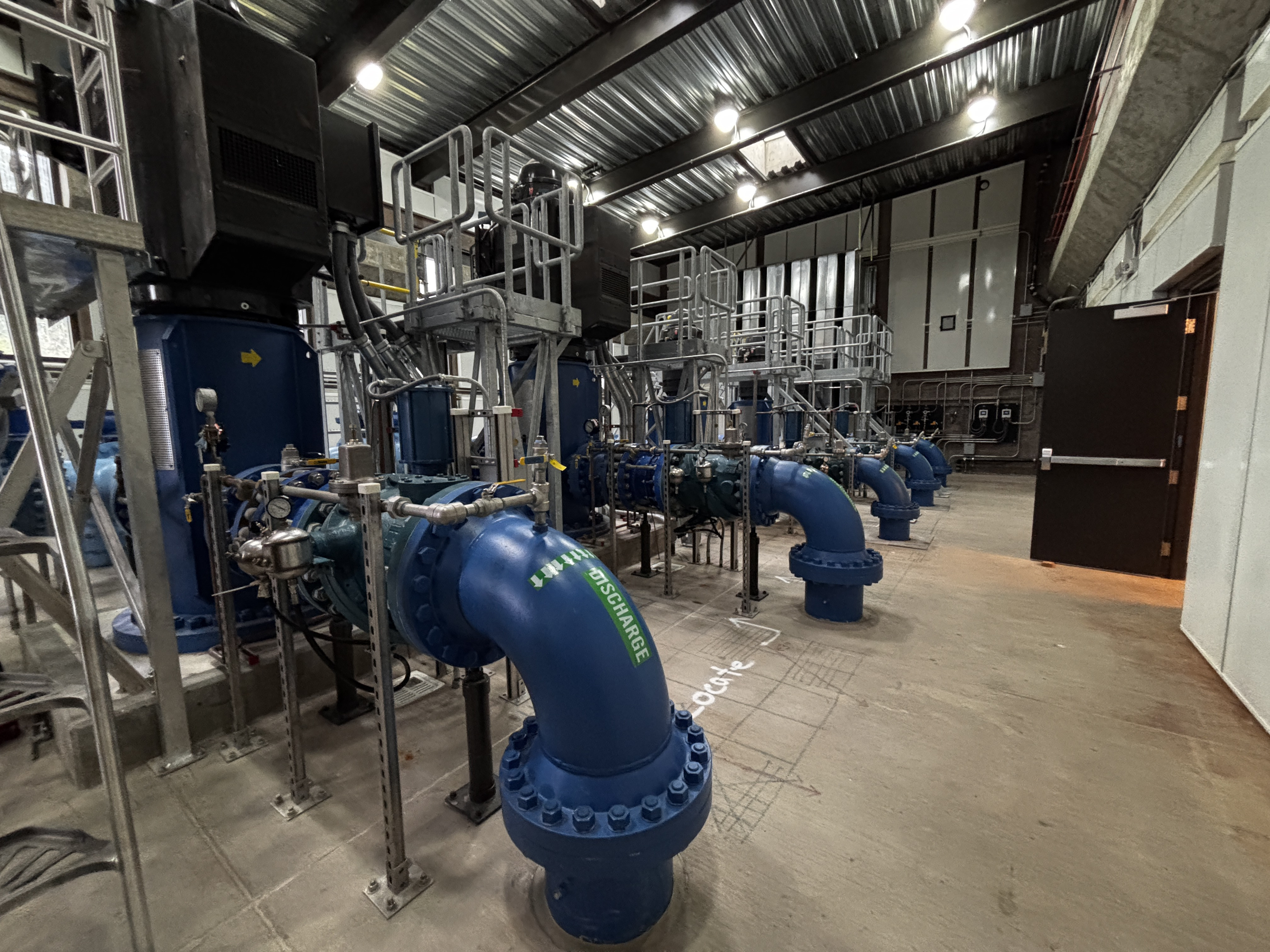

In lift stations and wet wells, operators must monitor level and pressure to prevent overflows, protect pumps from running dry, and detect blockages before they become catastrophic failures.
NOSHOK submersible level transmitters and cage‑protected designs are engineered for severe high‑solids environments such as sewage, storm canals and slurry tanks, where sludge, solids, and turbulence are present. By combining these transmitters with flow‑through annular style diaphragm seals and electronic indicating pressure transmitters/switches, plants can visualize wet‑well levels, identify back‑ups, and trigger alarms or pump staging logic based on real‑time data.
| Challenge | NOSHOK Solution | Purpose |
|---|---|---|
| Plugging, fouling and damage to sensors in high solids wet wells in sewage lift stations and stormwater retention basins | Large non fouling sensing area and robust construction provide highly accurate, stable level measurement in severe sludge and slurry environments over long periods. | |
| Undetected high level conditions leading to overflow events in municipal lift stations and pump stations | Non-contact radar level transmitter, Submersible level transmitter and/or cage protected submersible level transmitter tied into control panel alarms. Intrinsically safe submersible transmitters are also available. |
Electronic level measurement identifies blockages, back ups and flooding, triggering alarms or pump starts/stops to protect assets and minimize environmental impact. |
| Clogging of pressure taps at pump discharge in wastewater pumping stations | Flow through annular style diaphragm seal with electronic indicating pressure transmitter/switch, or pressure gauge), or pressure transmitter |
Non clogging flow through seal protects the sensor and provides reliable pressure measurement feedback to the control panel for pump protection and performance monitoring. |
| Maintaining optimal temperatures and oil pressure on pumps | Probe Type Industrial RTD with Connection Head, General Purpose Fixed Range Pressure Transmitters, High Performance Fixed Range Pressure Transmitters or High Accuracy Fixed Range Pressure Transmitters |
Extends the life of pump bearings and reduces maintenance intervals. |

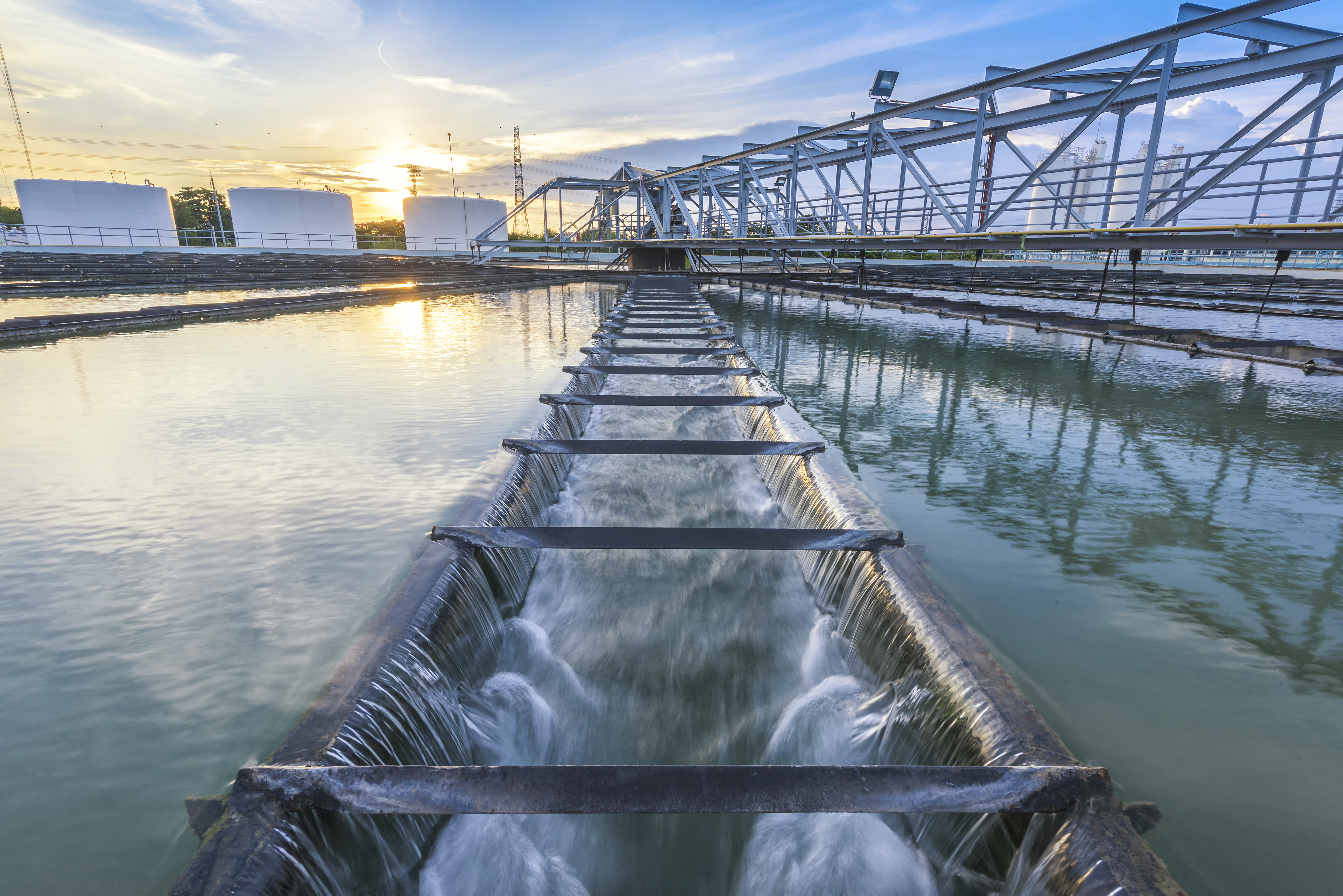

Reservoirs, elevated tanks, water towers, wells and stormwater overflow tanks require continuous level indication to manage storage, maintain system pressure, and prevent uncontrolled releases.
NOSHOK submersible and non-contact radar level transmitters, pressure transmitters, switches and gauges provide dependable level and pressure data to support reservoir management, stormwater retention strategies and well depth monitoring. Their robust construction and broad rangeability make them suitable for both municipal and industrial water systems, as well as irrigation and cooling water circuits.
| Challenge | NOSHOK Solution | Purpose |
|---|---|---|
| Maintaining accurate level indication in reservoirs and elevated tanks to manage storage and system pressure | Non-contact radar level transmitters, Submersible level transmitters |
Provides continuous level data for better control to support reservoir management, prevent overflows and maintain consistent distribution pressure. |
| Monitoring water level in wells exposed to changing groundwater conditions and pump drawdown | Submersible or cage protected submersible level transmitters with robust cable and surge protection |
Enables reliable well depth monitoring for pump control and drawdown protection, improving long term reliability in harsh environments. |
| Managing stormwater in overflow and retention tanks during heavy rain events | Submersible or cage protected submersible level transmitters tied into control panel alarms |
Supports stormwater retention strategies and controlled discharge by providing real time level data for valve and pump control. |
| Verifying level and pressure in raw water and cooling water circuits in industrial facilities | Pressure transmitters, pressure gauges, and pressure switches applied on intake, discharge and header lines |
Delivers dependable pressure and level information to maintain flow, protect equipment and optimize cooling water performance in municipal and industrial systems. |

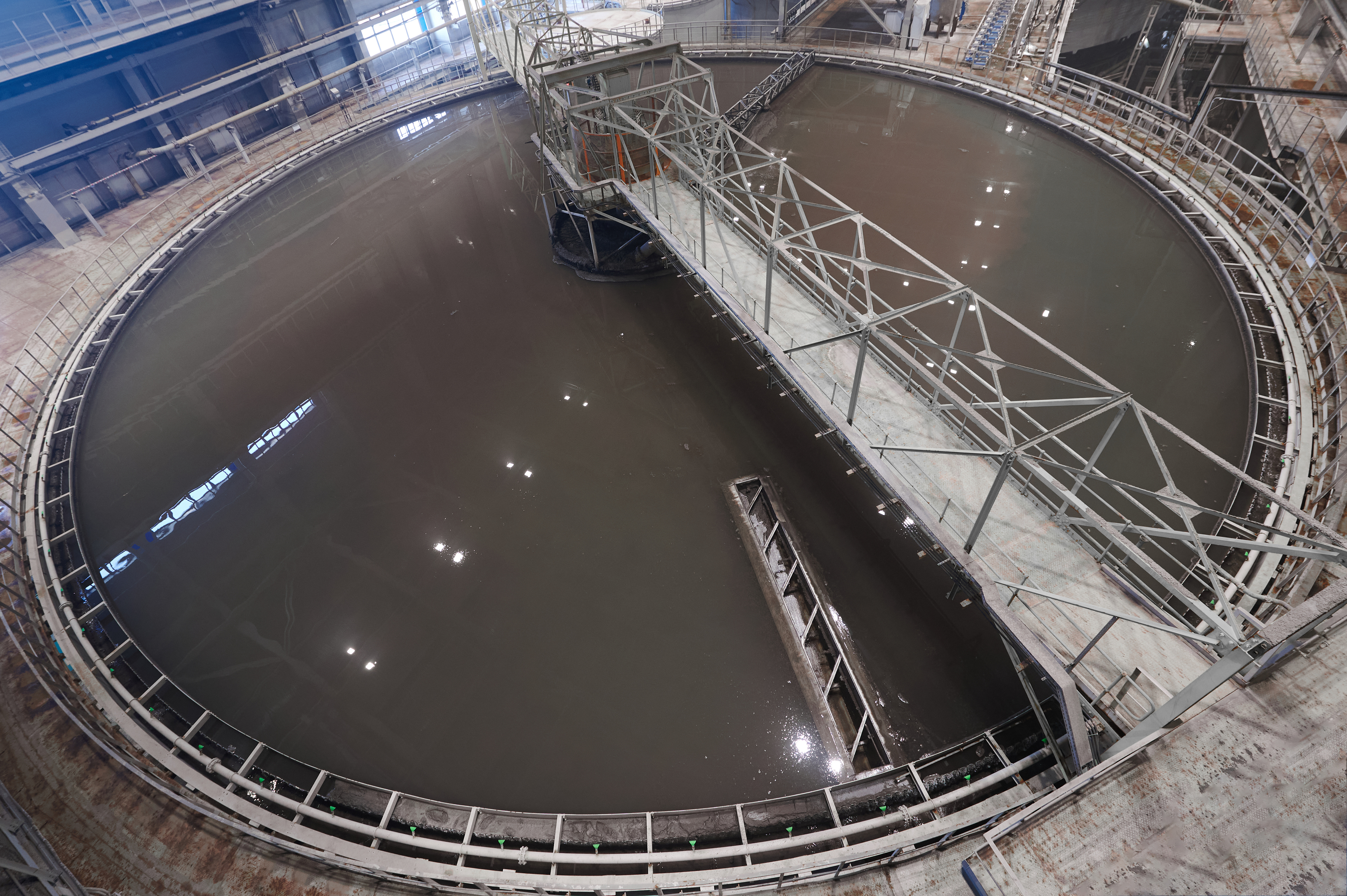

Sludge handling, digestion tanks, slurry storage and other high‑solids applications demand instrumentation that withstands abrasive, viscous media without clogging or drifting out of calibration.
NOSHOK provides operators with solutions to better manage challenging processes involving sludge and slurry conditions. Cage‑protected submersible transmitters, flush diaphragm pressure transmitters and flow‑through diaphragm seals are designed specifically for these conditions, providing stable measurement for level, head pressure and pump suction/discharge.
| Challenge | NOSHOK Solution | Purpose |
|---|---|---|
| Measuring level in sludge holding tanks with abrasive, viscous media | Non-contact radar level transmitters or Cage protected submersible level transmitters designed for high solids service |
Radar level transmitters deliver accurate, continuous, non-contact measurement. Cage-protected submersible transmitters feature a large, non-fouling sensing area for stable, long-term performance in harsh sludge and slurry environments. |
| Protecting pressure instruments from clogging and damage in sludge and slurry lines | Flow through annular style diaphragm seal with electronic indicating pressure transmitter/switch, or pressure gauge or pressure transmitter |
Provides a clog resistant, self cleaning path for abrasive media while protecting the sensing element and maintaining accurate head and line pressure indication. |
| Monitoring pump suction and discharge pressure on sludge transfer pumps | Flush diaphragm pressure transmitters (High Performance Fixed Range Pressure Transmitters or High Accuracy Fixed Range Pressure Transmitters), or pressure gauges, or pressure transmitter assembly with high solids resistant front flush diaphragm seals |
Ensures reliable suction and discharge pressure measurement to protect pumps from cavitation or over pressure and to optimize pump loading. |
| Reducing unscheduled maintenance caused by plugged impulse lines and fouled sensors | Flow through annular style diaphragm seal with electronic indicating pressure transmitter/switch, or pressure gauge or pressure transmitter |
Eliminates instrument plugging and drift, extending maintenance intervals and lowering total cost of ownership in high solids applications. |

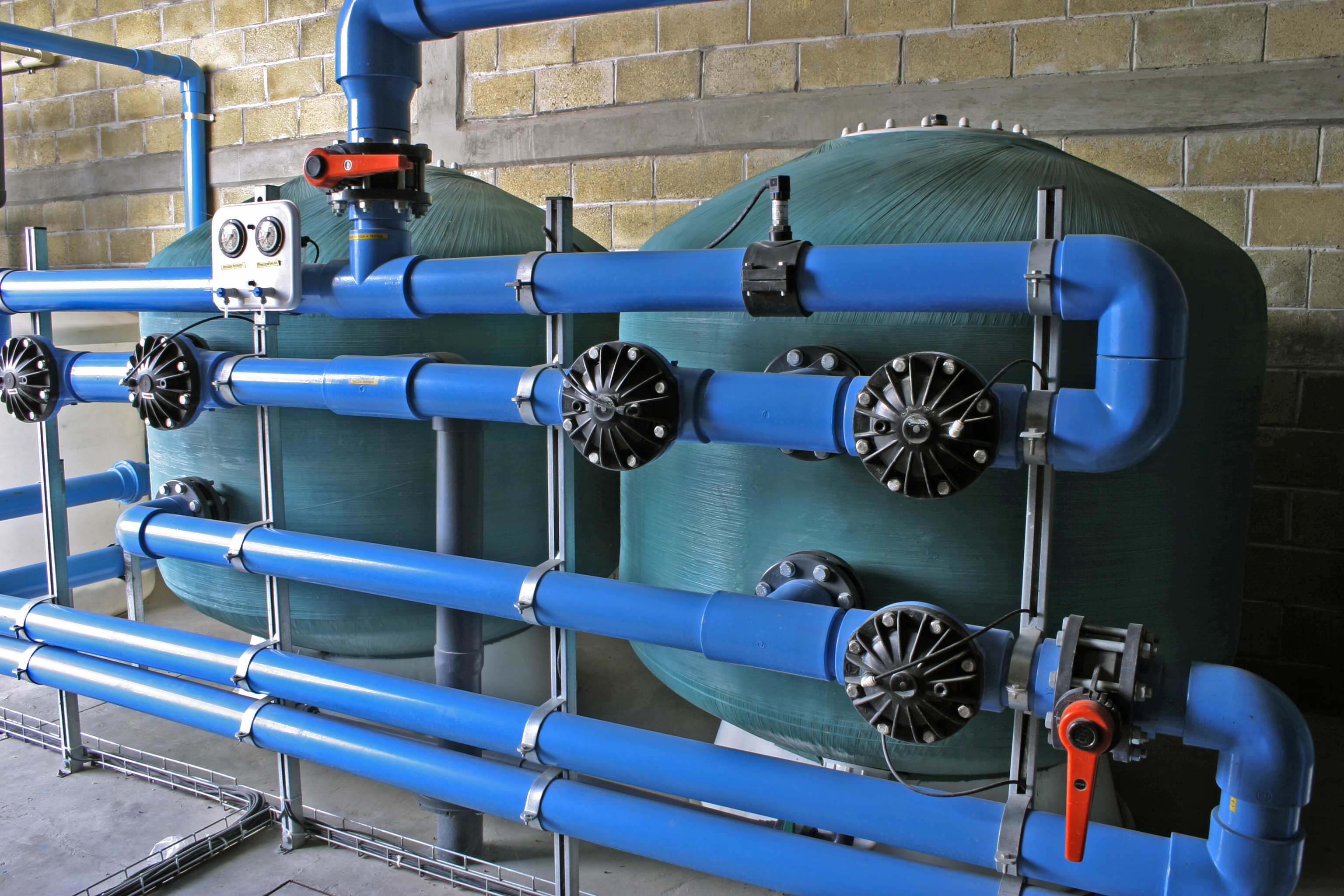

Filters, clarifiers, sand beds and membrane systems rely on accurate differential and line pressure measurement to maintain throughput and detect fouling trends.
NOSHOK pressure transmitters, gauges and diaphragm seals provide precise indication of inlet, outlet and differential pressures across filters, strainers and finer treatment stages. This instrumentation supports condition based maintenance, improves visibility into process bottlenecks, and enables operators to adjust operating parameters to maintain target flow and quality.
| Challenge | NOSHOK Solution | Purpose |
|---|---|---|
| Tracking differential pressure across filters, strainers and media beds to detect clogging | Premier accuracy intelligent industrial pressure transmitters and differential pressure gauges installed on filter inlet and outlet, with differential indication |
Provides precise differential pressure data to indicate filter loading, enabling timely change outs and protecting equipment. |
| Monitoring line pressure through clarifiers, sand filters and membrane systems | Electronic pressure transmitters - multiple ranges and process connections available |
Helps maintain target operating pressure and flow, improving throughput and protecting vessels and membranes from over pressure. |
| Integrating pressure data into plant control and reporting systems | Pressure transmitters with multiple output options (4–20 mA, voltage) and diaphragm seals where needed |
Delivers reliable, easily integrated signals for SCADA or PLC systems to support condition based maintenance, control and trend analysis. |
| Reducing clogging of pressure connections in high solids or chemically aggressive filtration stages | Diaphragm seals matched to the media, including flow through annular style and non metallic designs |
Protects sensing elements from fouling and corrosion while maintaining accurate indication at critical measurement points. |
Equipment: 60 GHz Non-Contact Radar Level Transmitters
Application: Level measurement of liquids, viscous materials, and solids in tanks and vessels.
Purpose: Delivers accurate, continuous, non-contact level measurement, designed with safety, uptime, and lifecycle efficiency in mind.
Equipment:
Submersible Level Transmitters
Application: Designed for severe high‑solids environments such as sewage, lift stations, storm canals, wet wells and slurry tanks where sludge, slurry or turbulence may be present.
Purpose: Provides highly accurate, stable level measurement and watertight protection in demanding municipal and industrial liquid level applications.
Equipment: Pressure Transmitters and Transducers
Application: Vacuum, absolute and gauge pressure measurement in wastewater pumping stations, lift stations, discharge controls, booster pumps, filtration systems and process water circuits.
Purpose: Delivers dependable pressure data for control, protection and optimization of pumps, filters and distribution systems, with outputs that integrate easily into SCADA and plant control systems.
Equipment: Electronic Pressure Transmitter/Switch with optional IO‑Link with All Non‑Metallic Diaphragm Seal
Application: Discharge controls, pump stations, booster pumps, dewatering and grinder systems, blowers, and chemical feed applications.
Purpose: Combines precise electronic pressure indication and switch outputs with a corrosion‑resistant PTFE diaphragm seal in a compact assembly, replacing bulky analog gauge/switch packages to improve reliability and reduce leak paths.
Equipment: Pressure Gauges
Application: Vacuum and pressure indication on wastewater pumping stations, blower systems, filtration trains and process water circuits, including differential pressure monitoring.
Purpose: Provides local visual indication of system pressure to support operator awareness, troubleshooting and maintenance, even in demanding service with vibration, pulsation and chemical exposure.
Equipment: Diaphragm Seals and Distribution Manifolds (Goal Post Assemblies)
Application: Slurries, heavy sludges, chemical feed and corrosive media across wastewater pumping stations, lift stations, chemical rooms and filtration skids.
Purpose: Protects pressure instruments from clogging, fouling and corrosion while minimizing leak paths and temperature error, enabling accurate, long‑term measurement in harsh water & wastewater applications.

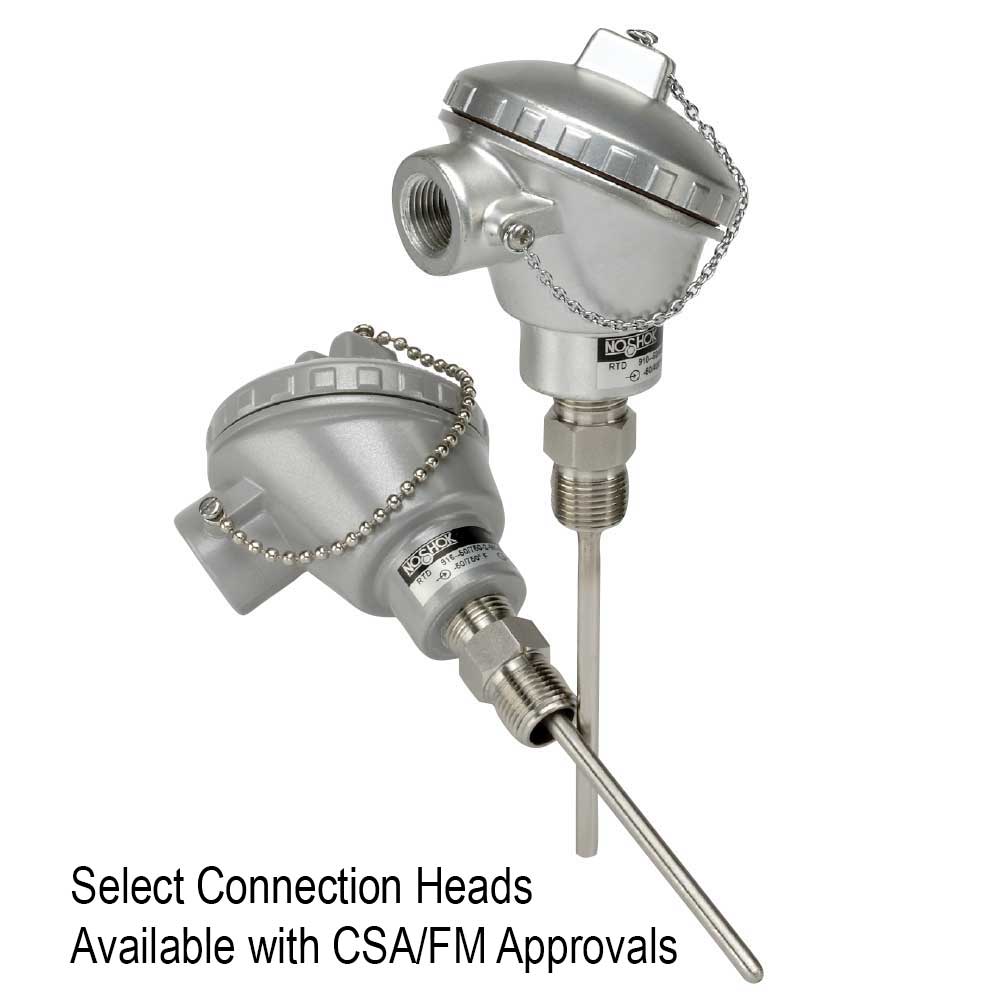

Equipment: Industrial RTDs
Application: Boilers, primary digesters, water systems, storage tanks and industrial machinery within water and wastewater facilities.
Purpose: Provides extremely accurate temperature measurement for critical thermal processes, helping maintain efficiency, protect equipment and ensure biological processes stay within optimal ranges.
Equipment: Temperature Transmitters and Transmitter/Switch
Application: Temperature monitoring and control in water systems, storage tanks, heat-exchange loops, coolant and oil circuits, and industrial machinery across municipal and industrial water & wastewater plants.
Purpose: Measures, displays, and transmits temperature with switching and analog output capabilities, providing reliable monitoring, alarm, and control in a single compact or remote-mount solution.
Equipment: Bimetal Thermometers
Application: Local temperature indication on pipes, tanks, boilers, condensers and cooling circuits in water & wastewater facilities.
Purpose: Provides cost‑effective local temperature indication for operators, with rugged designs ideal for demanding process environments.
Equipment: Block & Bleed Needle Valves
Application: Isolation and control in water transmission pipelines, tanks and pump stations, air blowers in wastewater treatment, and water transport throughout the facility.
Purpose: Provides reliable shutoff and venting functions for transmitters and gauges, simplifying installation and maintenance while ensuring safe, leak‑tight operation.
Equipment: All Non‑Metallic Diaphragm Seal & Electronic Pressure Transmitter/Switch Assembly
Application: Application‑focused assembly for chemical feed systems such as sodium hypochlorite at water and wastewater treatment plants, providing pump shut‑off protection and feed pressure monitoring.
Purpose: Tested and proven compact assembly that replaces larger, heavier gauge/switch/diaphragm seal combinations with one light‑weight, corrosion‑resistant package to reduce leak paths, improve repeatability, and extend service life.
Equipment: Distribution Manifold Assembly
Application: Connecting multiple instruments (such as transmitters, switches and gauges) to one diaphragm seal in water & wastewater systems, including chemical feed skids and pump discharge points.
Purpose: Eliminates multiple process connections that can leak, reduces fill volume and temperature error, and simplifies installation by providing a single sealed interface for several instruments.
Equipment: Submersible Level Transmitter Accessories (Lifting Ring, Cable Clamp, Junction Box, Filter Element, Desiccant Cartridge) (612, 613, 627)
Application: Supporting and protecting submersible level transmitter installations in lift stations, wet wells and stormwater basins by managing cable routing and vent protection.
Purpose: Enhances reliability and ease of installation by providing secure lifting and strain relief, protecting vented cables from moisture ingress, and maintaining long‑term transmitter performance in harsh environments.
WARNING:This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
A:
Submersible transmitters are a strong choice in wells, sumps, and lift stations where side or top nozzles are limited and level is best sensed from below. For harsh water and wastewater environments, a cage-protected design helps keep the sensing diaphragm safe from debris, slurry and sludge.
A:
For suction protection, place a point level device just above the minimum safe liquid height and use a continuous transmitter to control normal start/stop levels. For transfer or filling applications, a high level switch near the top of the vessel provides a hard overfill limit that backs up the continuous level signal.
A:
A cage-protected version surrounds the sensing diaphragm with a perforated guard, deflecting rocks, rags, and heavy solids while still allowing pressure transmission. This style is particularly well suited for sludge tanks, storm canals, and municipal lift stations where unprotected sensors can be easily damaged.
A:
Hydrostatic transmitters are ideal for continuous level measurement in wells, lift stations, and tanks where the media is relatively clean. Vibrating fork switches are excellent for high or low point-level protection and pump run-dry protection when you need simple binary level alarms. Radar level transmitters provide continuous, non-contact level measurement that excels in applications with varying dielectric properties, agitation, or where you want to avoid any wetted sensor in the tank.
A: NOSHOK pressure, level, and temperature transmitters provide standard analog outputs (such as 4–20 mA and voltage) and optional digital protocols like IO-Link or HART®, which connect directly to PLC input cards and remote I/O modules. The PLC uses these signals to run pump and valve logic locally, while the same data is passed up to the SCADA system for trending, alarming, and remote visibility across lift stations, reservoirs, chemical feed skids, and treatment trains making NOSHOK devices the measurement layer that feeds your plant and system wide automation.
A: NOSHOK transmitters and switches use industry standard signal types - most commonly 4–20 mA and voltage outputs, with optional HART® or IO-Link - so they connect to typical PLC analog input cards and IO-Link masters without special hardware. To ensure compatibility, confirm that your PLC has matching input types and ranges, reserve the correct I/O channels, and follow the wiring and scaling recommendations in both the PLC manual and NOSHOK data sheets; once the PLC is reading the signal correctly, your SCADA system simply tags those PLC points for alarming, trending, and remote monitoring.
A: Sodium hypochlorite is highly corrosive to many metals, so a PTFE- or polymer-based diaphragm seal isolates the instrument from attack while maintaining accurate pressure transmission. NOSHOK's all non-metallic Type 5 diaphragm seal provides a corrosion-resistant, proven solution for hypochlorite and other aggressive disinfectants.
A: Placement should reflect how the process operates: level in wet wells, reservoirs, and basins; suction and discharge pressure on pumps; differential pressure across filters and membranes. Instruments should be located where they see the true process conditions and can be wired cleanly back to PLC panels or remote I/O for control.
A: In high solids wet wells, the large, non-fouling sensing area and rugged cage of a NOSHOK 613 Series submersible level transmitter protect the diaphragm from debris and impact. This design provides stable, long-term level measurement in sewage, stormwater, and slurry environments where unprotected probes are prone to plugging and damage.
A: Continuous electronic level signals from radar or submersible transmitters feed the control panel or SCADA system, where level alarms and pump sequences can be automated. NOSHOK's intrinsically safe and cage-protected submersible level transmitters provide reliable measurement that alert operators to blockages, backups, and flooding before overflows occur.
A: Flow-through annular seals let the process media pass through a sleeve-style diaphragm, isolating the instrument from plugging while still transmitting pressure. In sludge, slurry, and polymer service, NOSHOK flow-through seals keep sensing elements clean and responsive, extending maintenance intervals and improving pump protection and process visibility.
A: Mounting a pressure gauge or electronic transmitter/switch on a flow-through annular style diaphragm seal creates a non-clogging measurement point that resists solids and buildup. This assembly ensures reliable discharge pressure feedback for pump protection, VFD control, and performance monitoring without repeated purging or line cleaning.
A: For large reservoirs and towers, NOSHOK non-contact radar level transmitters provide continuous level data without contacting the water, minimizing maintenance and contamination risk. Submersible transmitters can be used in wells and standpipes to track drawdown and recharge, supplying accurate data for storage management and distribution pressure control.
A: Submersible and cage-protected level transmitters installed in overflow tanks and detention basins deliver real-time level signals to automate valve and pump operation during heavy rain events. This data allows municipalities to coordinate controlled releases, protect downstream infrastructure, and reduce the risk of untreated discharges.
A: Installing differential pressure transmitters or gauges on filter inlet and outlet lines provides accurate differential pressure information that reveals loading and fouling trends. Operators can schedule backwashing or cartridge changes based on real data rather than time alone, protecting equipment and maintaining throughput in clarifiers, sand filters, and membrane systems.
A: Application-focused assemblies - such as non-metallic seal/transmitter packages for chemical feed or distribution manifolds feeding multiple instruments from a single diaphragm seal - create repeatable building blocks you can deploy plant-wide. This approach simplifies design and maintenance, reduces leak paths and configuration variants, and ensures consistent performance from chemical rooms and pump stations to digesters, filters, and reservoirs.
A: Look for IP65–IP68 or NEMA-rated housings, UV-resistant cables, and corrosion-resistant materials such as 316 Stainless Steel, PVDF, or Polyurethane in exposed locations. NOSHOK's submersible level transmitters and industrial transmitters are designed for immersion, wash-down, and harsh atmospheres commonly found in lift stations, headworks, and chemical feed rooms.
A: Depending on location and application, plants may require CSA or FM hazardous location approvals for instruments in classified areas, and AWWA or NSF-related requirements for materials in contact with potable water. Operators and integrators often also follow ISA and NEC electrical codes, and use vendor documentation (calibration certificates, material traceability) to support regulatory and audit requirements.
A: IO-Link is a point-to-point digital protocol that runs over standard sensor cables and provides rich diagnostics, parameterization, and process data from smart devices. In treatment plants and booster stations, IO-Link enabled transmitters and transmitter/switches give engineers more insight into device status and allow standardized configuration across multiple skids and panels.
A: NOSHOK works with municipalities, engineers, and OEMs to define application-focused packages - combining pressure, level and temperature transmitters, gauges, seals, valves, and accessories that are engineered for water and wastewater service. This reduces design time and integration risk while ensuring your instrumentation will tie cleanly into existing infrastructure, PLC programs, and SCADA standards across the facility.
