| ORDERING INFORMATION | ||||||
| SERIES | IDE40 | |||||
| APPROVALS* | N | No approvals | G | CE, cULus | H | CE, cULus, Nonincendive |
| POWER | 1 | 90 - 264 Vac | 2 | 24 Vdc | ||
| OPTIONAL EXPANSION CARDS** |
A | 4 Analog Inputs | D | 15 Digital Inputs | P | 4 Pulse Inputs |
| T | 4 Temperature Inputs | O | 5 Analog Outputs | R | 5 Relays | |
| PR | Printer Card | |||||
| OPTIONS*** | ETH | TCP/IP Network | DL | Data Logging | BC | Batch Controller |
| MM | Modbus Master | |||||
Notes:
* PR (printer), T (temperature inputs), and D (digital inputs) require N (no approvals)
** 7 total Expansion Cards Maximum, 6 Relay Expansion Cards Maximum, 1 Printer Expansion Card only, include number of required card as a prefix
*** ETH, DL, BC, and MM can all coexist together and with any other options and cards
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.
| SPECIFICATIONS | ||
| HMI display panel | Color: QVGA (320 x 240 pixels), 5.7" (145 mm) diagonally, white backlight Bargraph: Twenty divisions Numerical: Up to 15 digits (±999,999,999,999,999) Feet & Inches format: 99,999' 11.99" |
|
| Display update rate | User selectable: 0.1 to 0.5 sec (10 updates/sec to 2 updates/sec) | |
| Number of screens | Up to 20 screens with 1 to 8 PVs or items per screen Enable or disable screen title, channel #, and bargraph Automatic or manual scanning Scan time: 1 to >1000 sec, independent for each screen F1-F4 keys are assigned per screen |
|
| Function keys | User programmable (See defaults below) F1 = Previous ← F2 = Next → F3 = Scan/Stop F4 = Ack |
|
| Communications | Modbus RTU or Modbus ASCII Ethernet TCP/IP |
|
| Ratings | Hazardous locations: (US and Canada) Class I Division 2 Groups A, B, C, and D Class II Division 2 Groups F and G Class III Temperature Code: T4A CSA-C22.2 No. 61010-1 and CSA-C22.2 No. 61010-2-201 UL 61010-1 and UL 61010-2-201 Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use |
Ordinary locations: (US and Canada) UL 508 Industrial Control Equipment CSA-C22.2 No. 61010-1 and CSA-C22.2 No. 61010-2-201 UL 61010-1 and UL 61010-2-201 Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use |
| Temperature range | Operating temperature range: -25 °C to 55 °C (-13 °F to 131 °F) Storage temperature range: -40 °C to 60 °C (-40 °F to 140 °F) Relative humidity: 0 to 90% non-condensing |
|
| External power requirements | AC powered: Three-terminal connector (L, N, GND) 90-264 VAC, 47 to 63 Hz, 60 W max |
DC powered: Two-terminal connector (G, 24V) 24 VDC ±10%, 60 W max Means of Protection: Class 2 (Reinforced) Overvoltage Category: Class II |
| Enclosure | Type 4X, IP66 Enclosure Body: Thermoplastic Polyester Color: Gray Display Window: Clear Polycarbonate, GE LEXAN HP12W Front Panel Keys: Silicone rubber Weight: 7.4 lb (3.4 kg) |
|

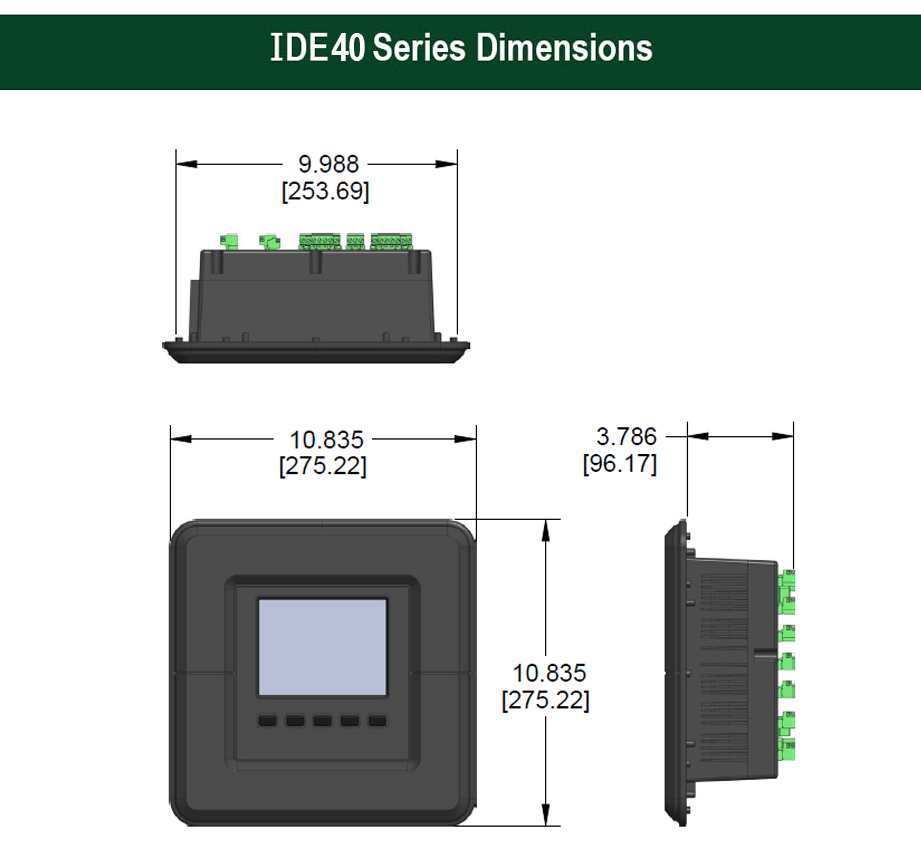

| Dimensions | 10.85" x 10.85" x 4.87" (276 mm x 276 mm x 124 mm) (H x W x D) | |
