72/74 Series Air-Guard Bronze Air Control Station 20 SCFM

REQUEST A QUOTE VIEW BY PART NUMBER
Download Literature
Filters
King-Gage
  • Provides clean, dry, oil-free compressed air

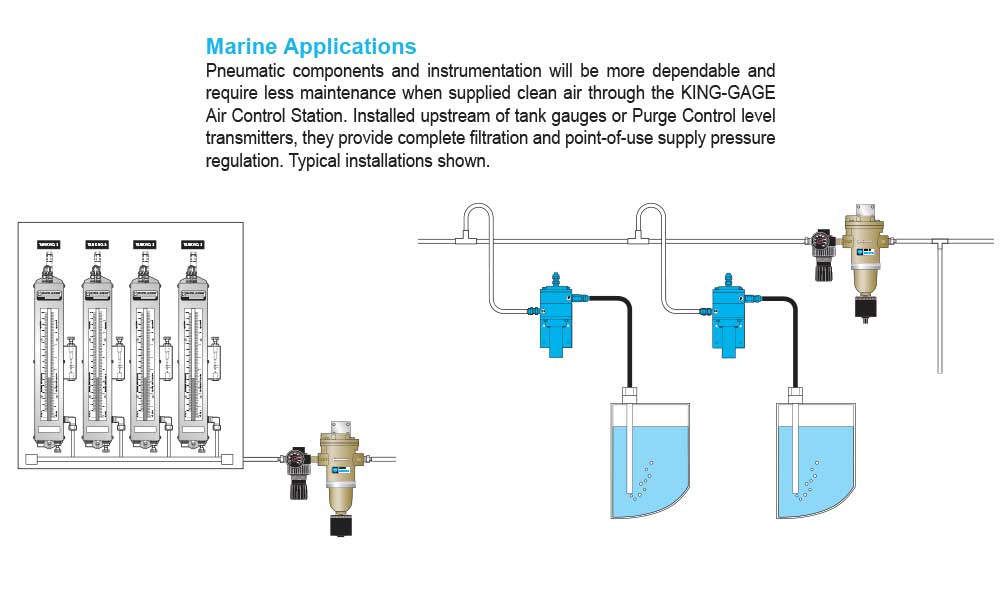

  • Rugged bronze filter for marine applications
  • Dual cartridges ensure long service life
  • Air-conserving automatic drain sump

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

ORDERING INFORMATION

SERIES 72 Air-Guard Bronze Air Control Station 20 SCFM with manual drain 74 Air-Guard Bronze Air Control Station 20 SCFM with auto drain
FIXED CONFIGURATION 024-6-25

NOTES:
1. Includes Type 750/800 cartridge set.
2. For U.S. Navy Service specifications, please contact factory.

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

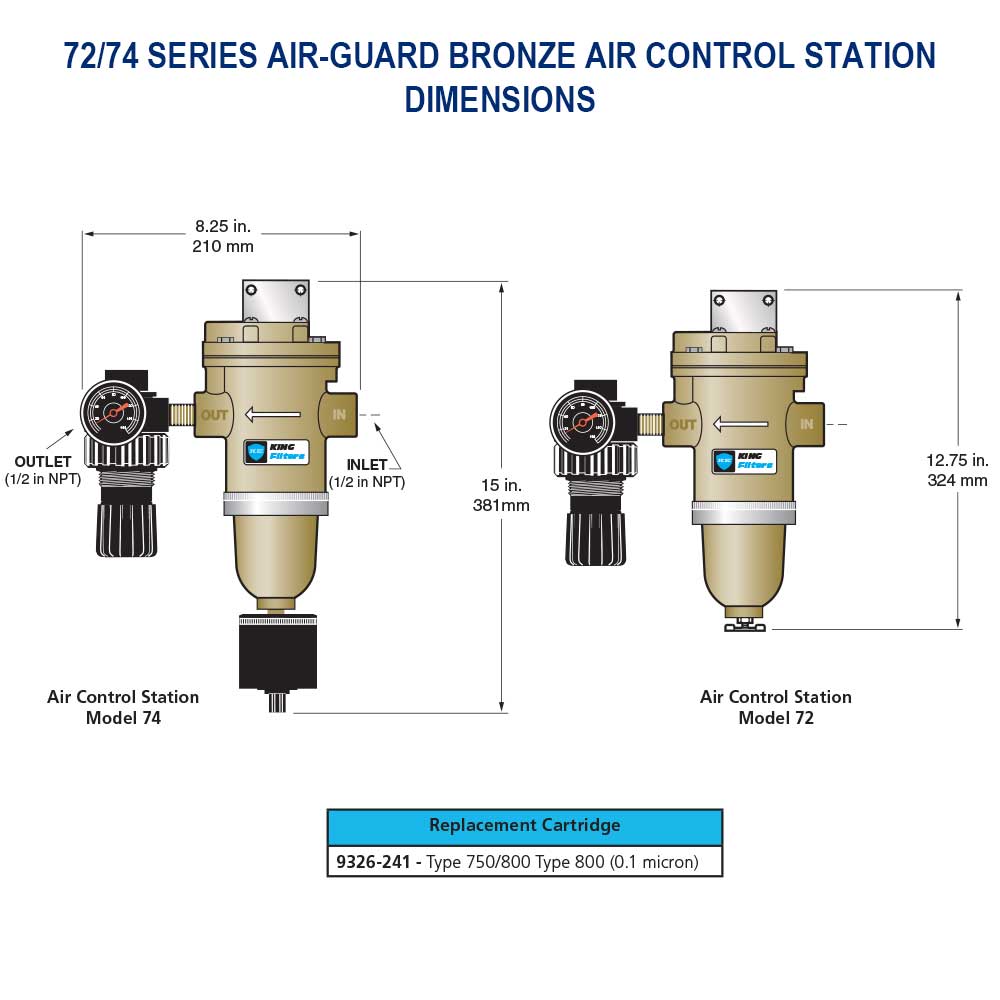

SPECIFICATIONS

Maximum pressure 150 psi
Rated flow 20 scfm @ 100 psig
Connections 1/2" NPT
Filter type Dual cartridge coalescing elements
Housing Bronze
Efficiency 99.98% of 0.1 micron or greater
Weight 17 lb./7.7 kg

Options & Accessories

Replacement Cartridge

9326-241    Type 750/800 Type 800 (0.1 micron)

WARNING:This product can expose you to chemicals including Lead and Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
