ORDERING INFORMATION
SERIES | 9313 | Air-Guard Bronze Filter 20 SCFM | ||||
DRAIN TYPES | 24 | With manual drain | 24T | With auto drain | ||
EFFICIENCY | 1-1 | 98% @ 2.0 micron | 6-5 | 99.998% @ 0.1 micron |
NOTE: Type 750/800 cartridge set included with 6-5 efficiency model
Type 300/300 cartridge set included with the 1-1 efficiency model
If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

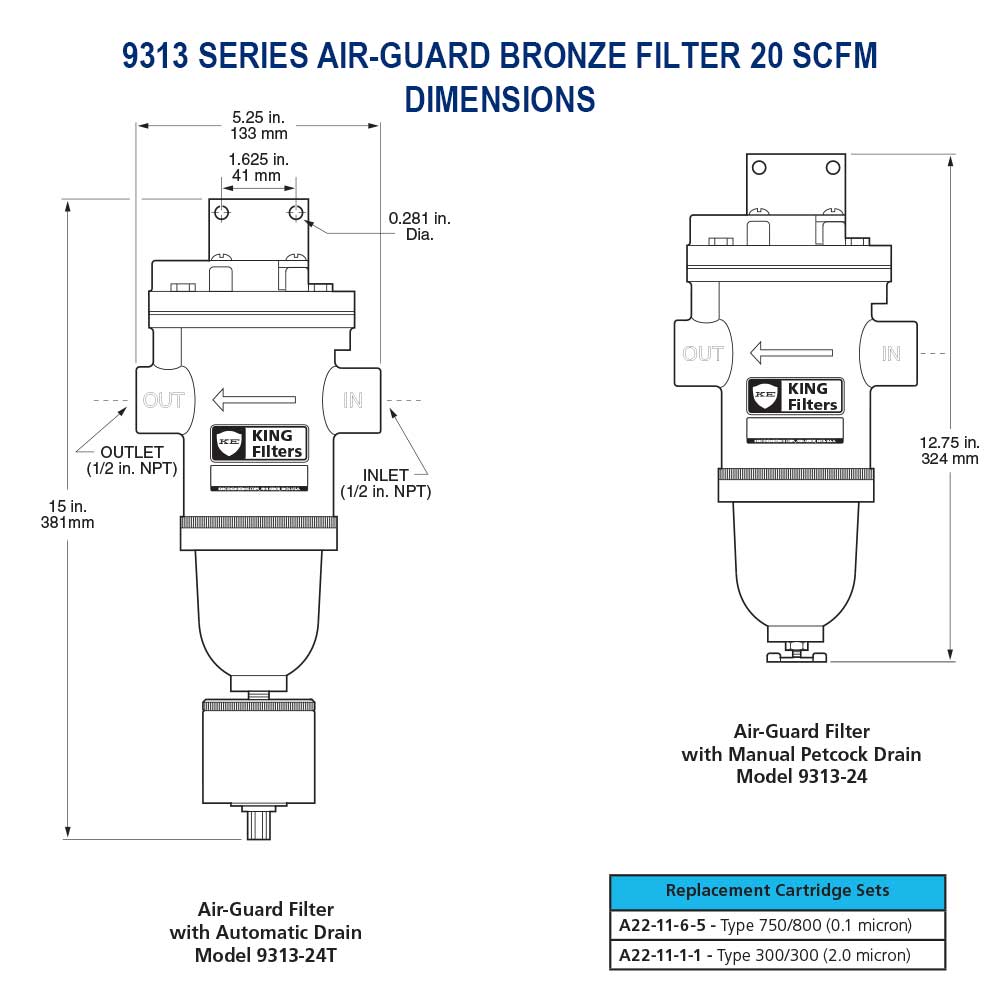

SPECIFICATIONS
Maximum inlet pressure | 150 psig | |
Rated flow | 20 scfm @ 100 psig | |
Connection | 1/2” NPT | |
Filter type | Dual cartridge coalescing elements | |
Housing | Bronze | |
Efficiency | 99.98% of 0.1 micron or greater | |
Weight | 15.0 lb/7 kg |
0.1 micron A22-11-6-5 cartridge set |
99.998% | ![]() |

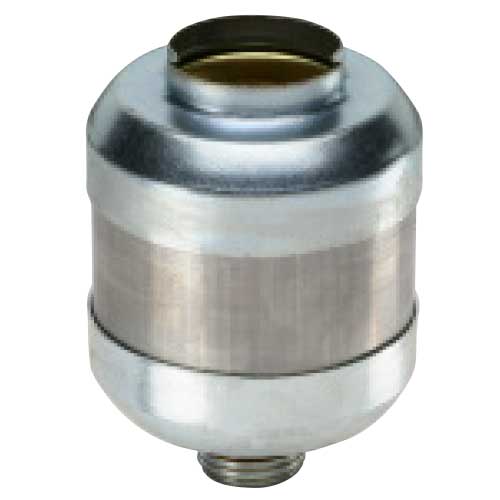

Type 750 scrubber | ![]() |
Type 800 polisher |
2.0 micron A22-11-1-1 cartridge set |
98.0% | ![]() |

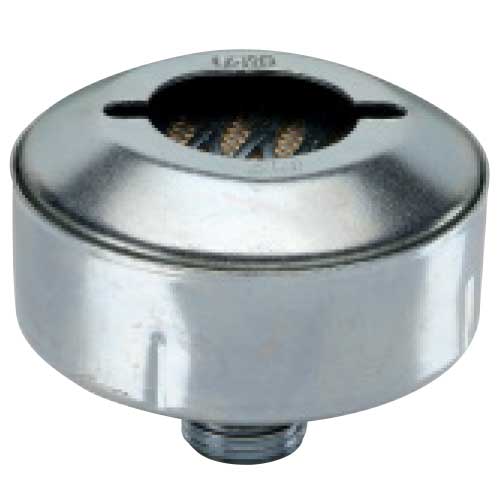

Type 300 scrubber | ![]() |

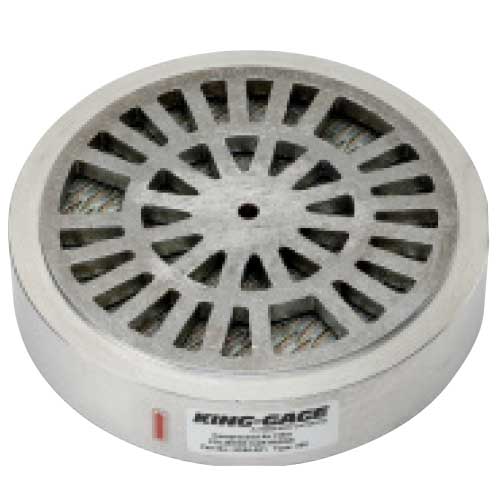

Type 300 polisher |
