612 Series Submersible Level Transmitters

REQUEST A QUOTE
Application Brochures

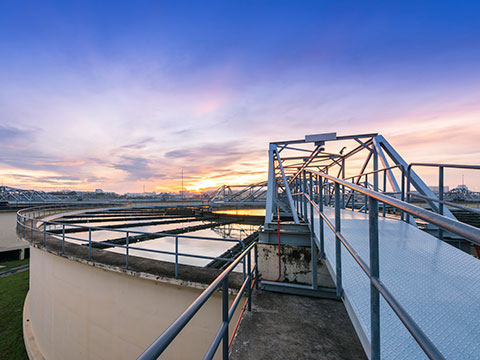

Water/
Wastewater
  • Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
  • Current and voltage outputs available
  • 316 Stainless Steel, Polyamide and Polyurethane wetted parts
  • CE compliant to suppress RFI, EMI and ESD

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SERIES 612
PRESSURE RANGES 50 inH2O 0 inH2O to 50 inH2O 2 0 psig to 2 psig (4.6 ftH2O) 20 0 psig to 20 psig (46.2 ftH2O) 200 0 psig to 200 psig (461.3 ftH2O)
100 inH2O 0 inH2O to 100 inH2O 3 0 psig to 3 psig (6.9 ftH2O) 25 0 psig to 25 psig (57.7 ftH2O) 300 0 psig to 300 psig (692.5 ftH2O)
150 inH2O 0 inH2O to 150 inH2O 5 0 psig to 5 psig (11.5 ftH2O) 30 0 psig to 30 psig (69.2 ftH2O) 350 0 psig to 350 psig (807.9 ftH2O)
200 inH2O 0 inH2O to 200 inH2O 10 0 psig to 10 psig (23.1 ftH2O) 60 0 psig to 60 psig (138.5 ftH2O) 500 0 psig to 500 psig (1154.2 ftH2O)
400 inH2O 0 inH2O to 400 inH2O 15 0 psig to 15 psig (34.6 ftH2O) 100 0 psig to 100 psig (230.8 ftH2O) 750 0 psig to 750 psig (1733.3 ftH2O)
psig = gauge pressure          Other ranges available on special request 150 0 psig to 150 psig (346.3 ftH2O) 1000 0 psig to 1,000 psig (2311.0 ftH2O)
ACCURACIES 1 ± 0.25% full scale (BFSL) 2 ± 0.125% full scale (BFSL)
OUTPUT SIGNALS 1 4 mA to 20 mA, 2-wire     5 0 Vdc to 10 Vdc, 3-wire
2 0 Vdc to 5 Vdc, 3-wire     11 0.5 Vdc to 2.5 Vdc, 3-wire
PROCESS
CONNECTIONS
N Nosecone     W Nosecone w/added weight (1.1 lbs.)
T G 1/2 B x 1/2" NPT male with 1/4" NPT female
ELECTRICAL
CONNECTIONS
XX Standard polyurethane (PUR) cable 38-XX Optional FEP cable
22-XX Optional water-blocked PVC cable (200+ psi only)
  NOTE: XX = length of cable in feet
OPTIONS PT1 PT100 RTD * CBC Cable Clamp FE Filter Element
DC Desiccant Cartridge LP Lightning Protection * JB Cable Junction Box

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SPECIFICATIONS
Output signals 4 mA to 20 mA, 2-wire; 0 Vdc to 5 Vdc and 0 Vdc to 10 Vdc, 3-wire;
0.5 Vdc to 2.5 Vdc, 3-wire
Pressure ranges 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
Accuracy ± 0.25% full scale (BFSL); optional ± 0.125% full scale (BFSL);
(includes the effects of non-linearity, hysteresis, non-repeatability, zero point
and full scale errors)
Stability ≤ ± 0.2% full scale for 1 year, non-accumulating
Response time ≤ 1 ms (between 10% and 90% full scale)
Service life > 100,000,000 load cycles
Temperature ranges Compensated 32 °F to 122 °F/0 °C to 50 °C
Effect ± 0.01%/ °F for zero and span
Media 14 °F to 122 °F / -10 °C to 50 °C
Storage -22 °F to 175 °F/-30 °C to 80 °C
Power requirement* 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire)
5 Vdc to 30 Vdc (0.5 Vdc to 2.5 Vdc, 3-wire)
14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire)
Load limitations ≤ (VPower-10)/0.020 Amp for 4 mA to 20 mA
≥ 10,000 Ω for 0 Vdc to 10 Vdc, 3-wire
≥ 5,000 Ω for 0 Vdc to 5 Vdc, 3-wire
Proof pressure 2 times range
Burst pressure 4 times range
Measuring element Cap: Polyamide, 316 stainless steel with weighted nosecone
Cable: Polyurethane, optional FEP or PVC with double water block
Connection 316 stainless steel
Housing material 316 stainless steel
Environmental rating IP68
Electromagnetic rating CE compliant to EMC norm EN 61326:2014/A1:1998
RFI, EMI and ESD protection
Electrical protection Reverse polarity protection, short circuit and optional lightning protection
per EN 6100-4-5; 1.5J
Shock 100 g’s according to IEC 60068-2-27
Vibration 15 g’s according to IEC 60068-2-6
Weight Approximately 7 oz. with standard nosecone - cable extra

Options & Accessories

  • Cable Clamp (CBC)
  • Cable Junction Box NEMA 4X (JB)
  • Desiccant Cartridge (DC)
  • Filter Element (FE)
  • Lightning Protection (LP)*
  • PT100 RTD1 (PT1)*

* Only available with PUR cable
