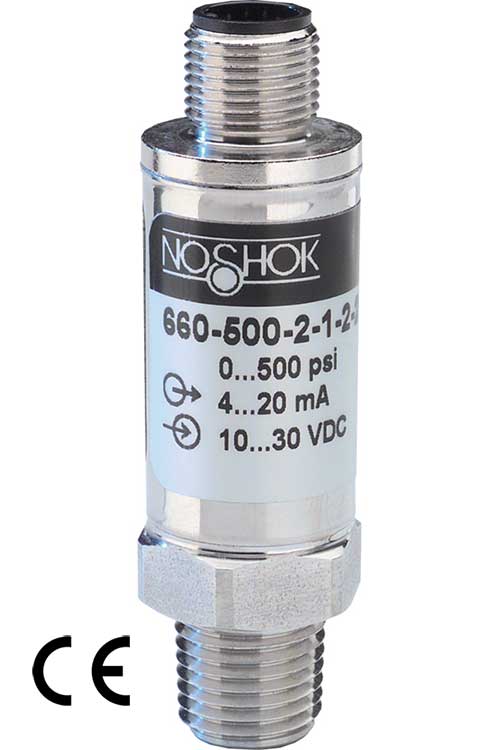

660 Series High Performance Micro-Size Transducers

  • Ranges from 0 psig to 200 through 0 psig to 15,000 psig
  • Current & voltage outputs available
  • Stainless Steel wetted parts
  • 1.0 mm standard orifice size for improved performance in dynamic applications
  • CE compliant to suppress RFI, EMI and ESD

NOTE: Standard orifice is 1.0 mm

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SERIES 660
PRESSURE
RANGES
200 0 psig to 200 psig 500 0 psig to 500 psig 3000 0 psig to 3,000 psig 10000 0 psig to 10,000 psig
300 0 psig to 300 psig 1000 0 psig to 1,000 psig 5000 0 psig to 5,000 psig 15000 0 psig to 15,000 psig
  psig = gauge pressure            Other ranges available on special request
ACCURACY 1 ± 0.25 % full scale (BFSL)
OUTPUT SIGNALS 1 4 mA to 20 mA, 2-wire 3 1 Vdc to 5 Vdc , 3-wire 27 0.1 Vdc to 10 Vdc, 3-wire
PROCESS CONNECTIONS 2 1/4" NPT male
ELECTRICAL CONNECTIONS 1 36" cable (connected to option 7) 7 Mini-Hirschmann (DIN EN 175301-803 Form C) 25 M12 x 1 (4-pin)

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SPECIFICATIONS
Output signals 4 mA to 20 mA 2-wire, 1 Vdc to 5 Vdc 3-wire;
0.1 Vdc to 10 Vdc, 3-wire
Pressure ranges 0 psig to 200 psig through 0 psig to 15,000 psig
Accuracy ±0.25% full scale (BFSL); (Includes the effects of non-linearity, hysteresis,
non-repeatability, zero point and full scale errors)
Stability ≤ ±2% full scale for 1 year, non-accumulating
Response time < 2 ms (between 10% and 90% full scale)
Service life > 100,000,000 load cycles
Temperature ranges Compensated -4 °F to 185 °F (-20 °C to 85 °C)
Zero effect ±0.01% full scale/ °F
Span effect ±0.01% full scale/ °F
Media -13 °F to 185 °F (-40 °C to 100 °C); -40 °F to 257 °F (-40 °C to 125 °C) available on request
Ambient -4 °F to 185 °F (-25 °C to 85 °C)
Storage -40 °F to 212 °F (-40 °C to 100 °C)
Power requirement* 10 Vdc to 36 Vdc (4 mA to 20 mA, 2-wire)
8 Vdc to 36 Vdc (1 Vdc to 5 Vdc, 3-wire)
14 Vdc to 36 Vdc (0.1 Vdc to 10 Vdc, 3-wire)
Load limitations ≤ (VPower-10)/0.020 Amp for 4 mA to 20 mA
≥ 10,000 Ω for 1 Vdc to 10 Vdc, 3-wire
≥ 5,000 Ω for 1 Vdc to 5 Vdc, 3-wire
Proof pressure 2 times full scale for ranges 0 psi to 200 psi through 0 psi to 10,000 psi
1.5 times full scale for 0 psi to 15,000 psi range
Burst pressure 9 times full scale for 0 psi to 200 psi through 0 psi to 1,000 psi
3 times full scale for ranges 0 to 3,000 psi through 0 psi to 15,000 psi
Measuring element 17-4PH stainless steel
Connection 316 stainless steel
Housing material 316 stainless steel
Environmental rating IP65; IP67 M12x1 electrical connection for pressure ranges 0 psig to 1,500 psig or higher
Electromagnetic rating CE compliant to EMC norm EN 61326:2014/A1:1998
RFI, EMI and ESD protection
Electrical protection Reverse polarity, over-voltage and short circuit protection
Shock 1,000 g’s according to IEC 60068-2-27
Vibration 20 g’s according to IEC 60068-2-6
Weight Approximately 1.75 oz.

Options & Accessories

NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.

NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media.

View NOSHOK's Diaphragm Seal offering

NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.

View NOSHOK's Digital Indicators offering

NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.

View NOSHOK Distribution Manifolds

  • Resist clogging and are self-cleaning
  • Five different sized pistons included with each snubber to ensure the correct amount of snubbing for virutally every application
  • Available in Brass and 316 Stainless Steel in 1/4" NPT, 1/2" NPT or SAE J1926-3: 7/16-20
  • Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2"​​​​​​

Specifications

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

  • Cost effective solution to protect expensive instrumentation
  • Increases gauge readability by smoothing out pressure surges, pulsations and spikes
  • 5 basic elements available for each snubber to accommodate specific application needs
  • Snubbing action achieved by utilizing a corrosion resistant 316 Stainless Steel sintered porous element
  • Exotic materials or intermediate disc grades available
  • Provides long service life with no moving parts to wear out
  • Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2

Specifications

Dimensions

Replacement Disc Options

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

  • Protect the instrument from the damaging effects of high temperature steam
  • Recommended for use in all steam applications
  • Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi @ 850 ºF

Specifications

Dimensions

Steam Syphons Temperature 1/4" NPT vs. Pressure charts

Steam Syphons Temperature 1/2" NPT vs. Pressure charts

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov


WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

  • Temperature ratings: 15,000 psi @ 200 °F and 3,000 psi @ 1,000 °F
  • Used with gauges and gauge valves to adjust the line of sight
  • Rotates 360° to allow the connected instrument to be positioned in the desired direction
  • The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut
  • All 316 Stainless Steel construction
  • Standard with 1/2" NPT male process – 1/2" NPT female instrument connections
  • Also available with 1/4" NPT connections, same specifications apply
  • Weight approximately 0.8 lb.
