300/400/600/700 Series Vapor Actuated Remote Dial Indicating Thermometers
»
300/400/600/700/900 Series Vapor Actuated Remote Dial Indicating Thermometers Dimensions
300/400/600/700/900 Series Vapor Actuated Remote Dial Indicating Thermometers Dimensions
2.5" Dial
25-300 Dimensions

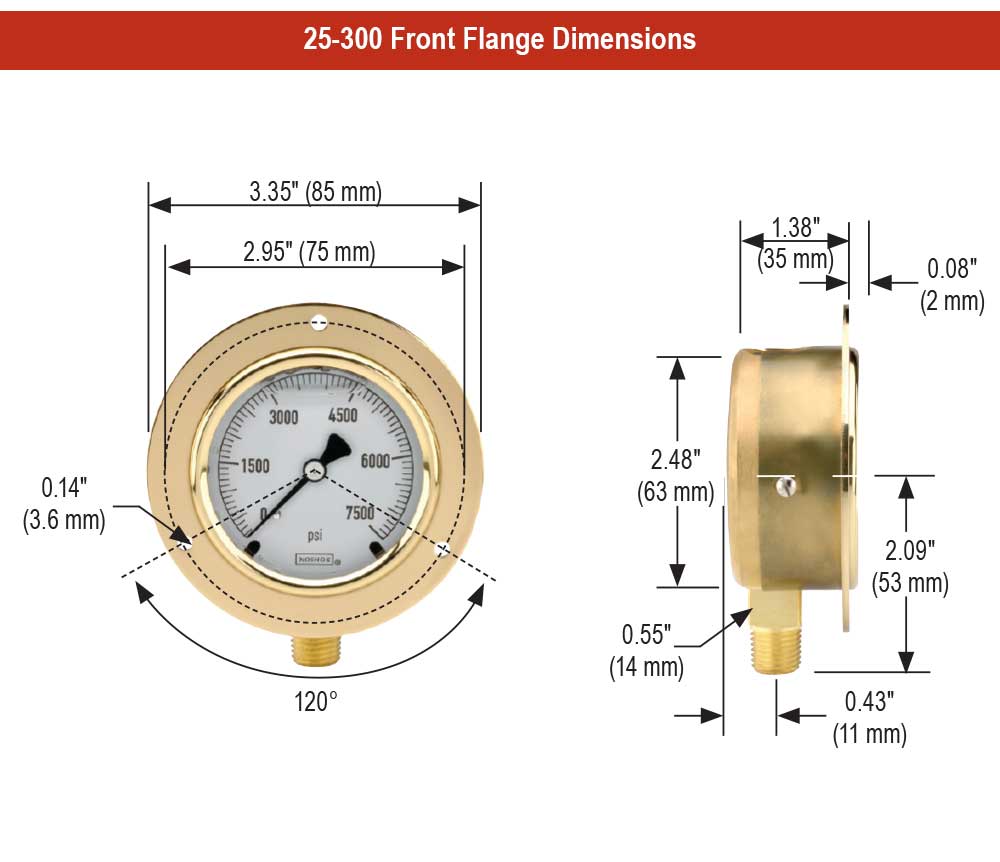

25-300 Front Flange Dimensions
25-300 Rear Flange Dimensions
25-310 Dimensions
25-310 Front Flange Dimensions

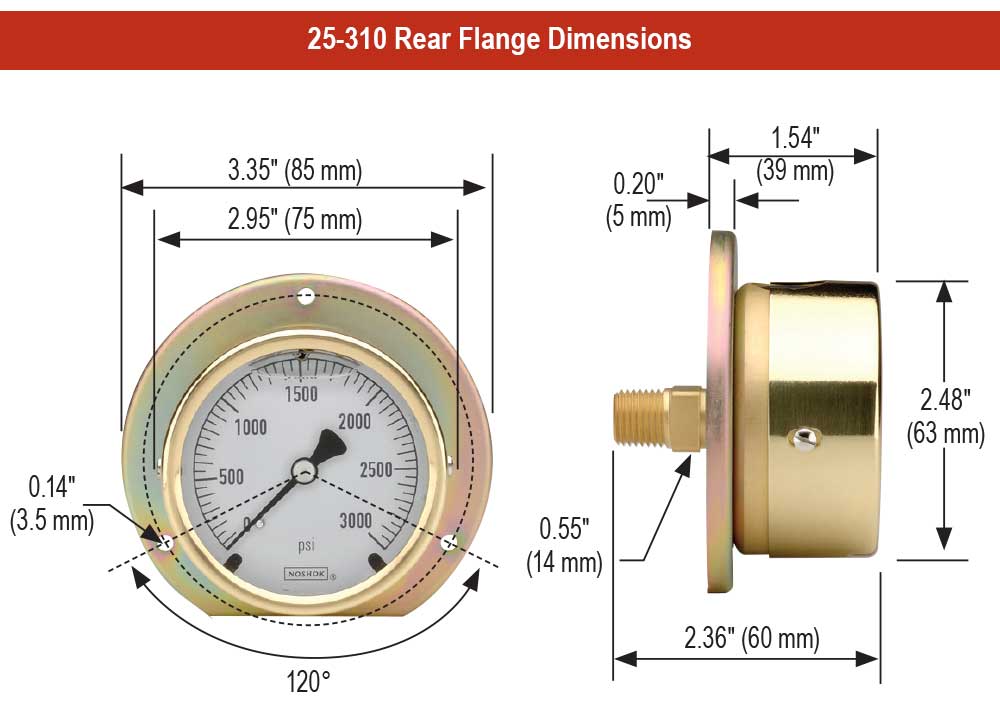

25-310 Rear Flange Dimensions

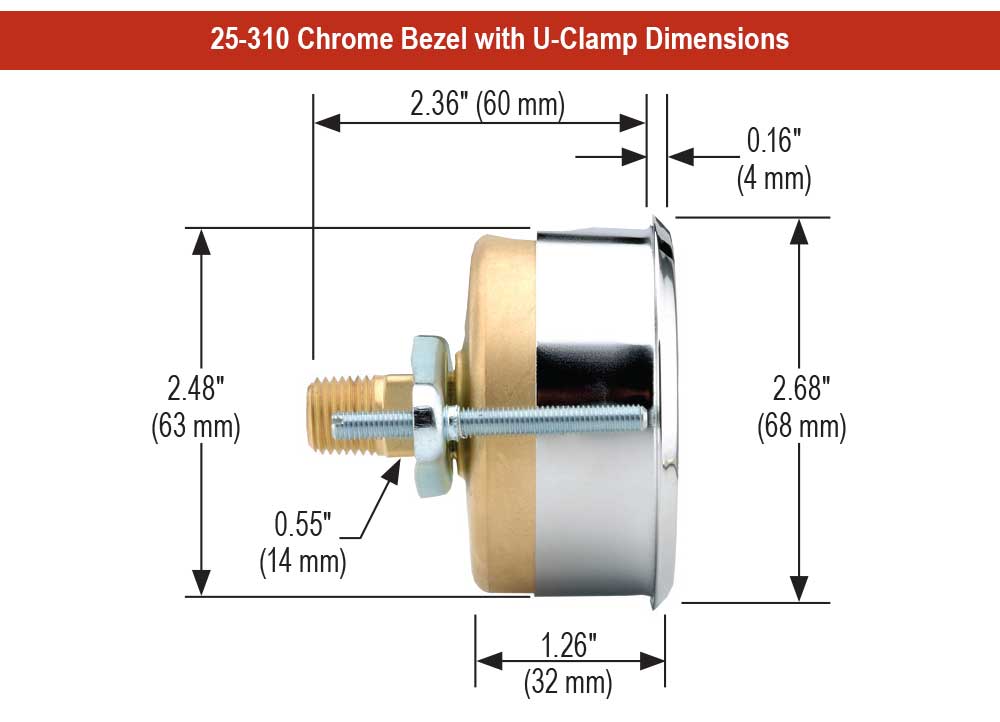

25-310 Chrome Bezel w/U-Clamp Dimensions
4" Dial
40-400 Dimensions
40-400 Front Flange Dimensions

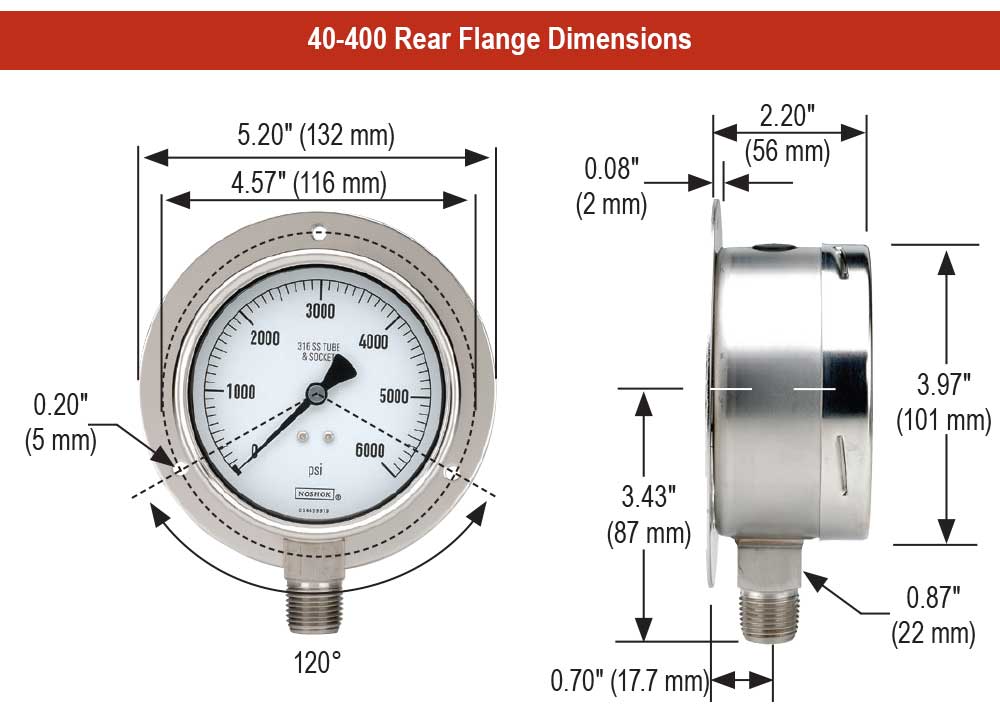

40-400 Rear Flange Dimensions
40-410 Dimensions

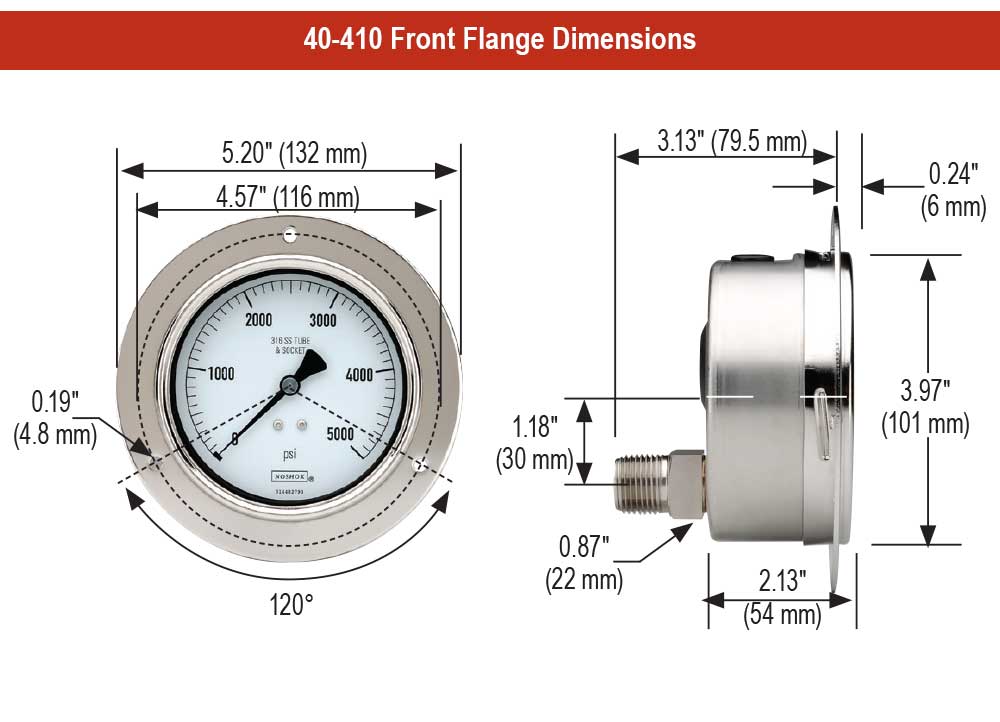

40-410 Front Flange Dimensions

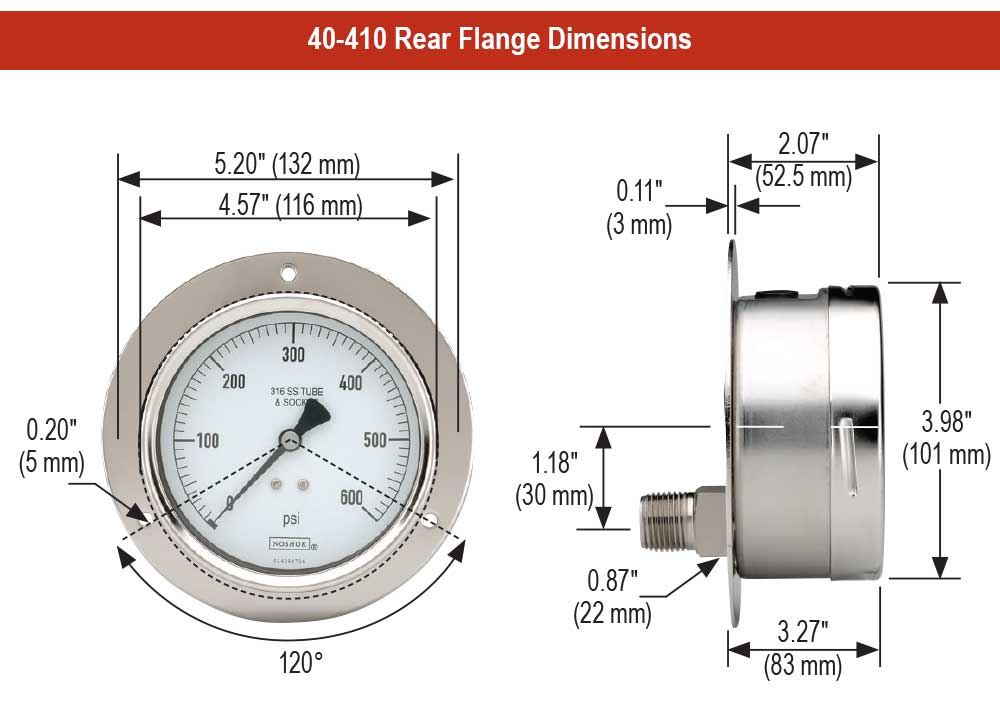

40-410 Rear Flange Dimensions

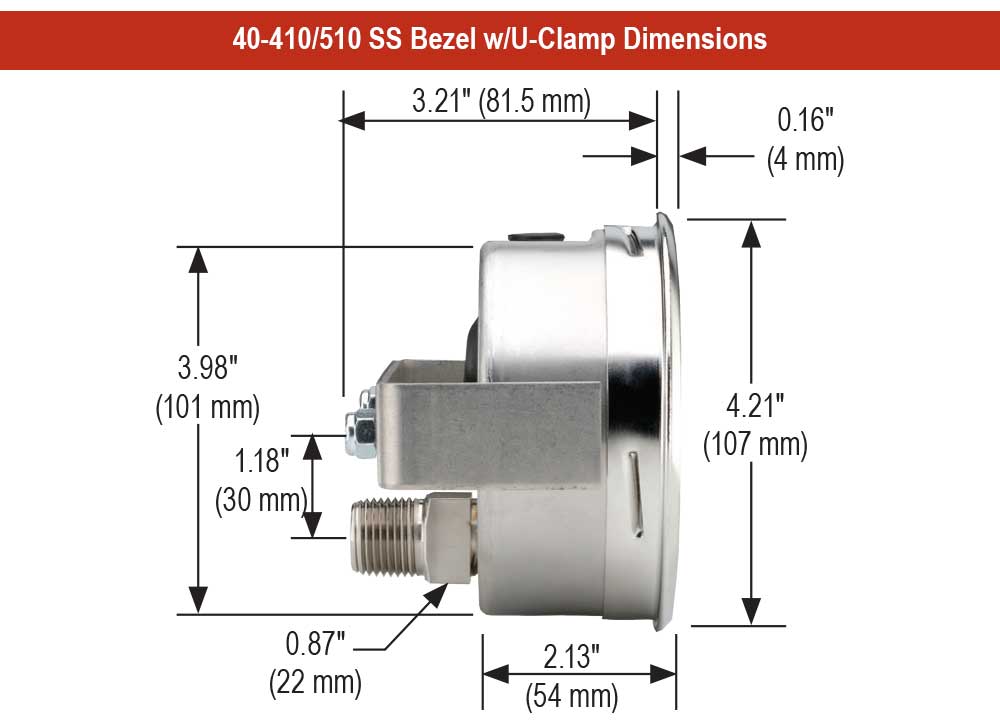

40-410/510 SS Bezel w/U-Clamp Dimensions
4.5" Dial

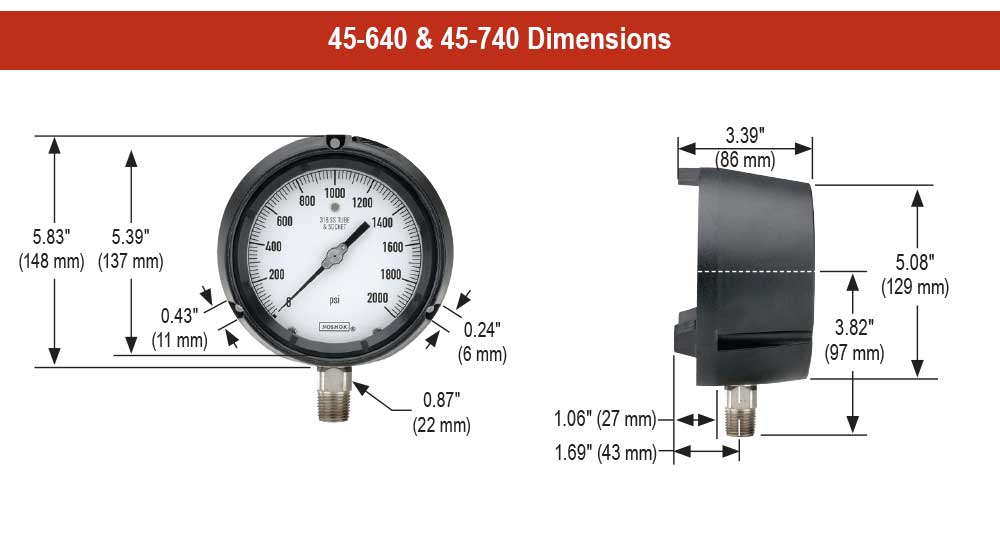

45-640 & 45-740 Dimensions
6" Dial
60-400 Dimensions

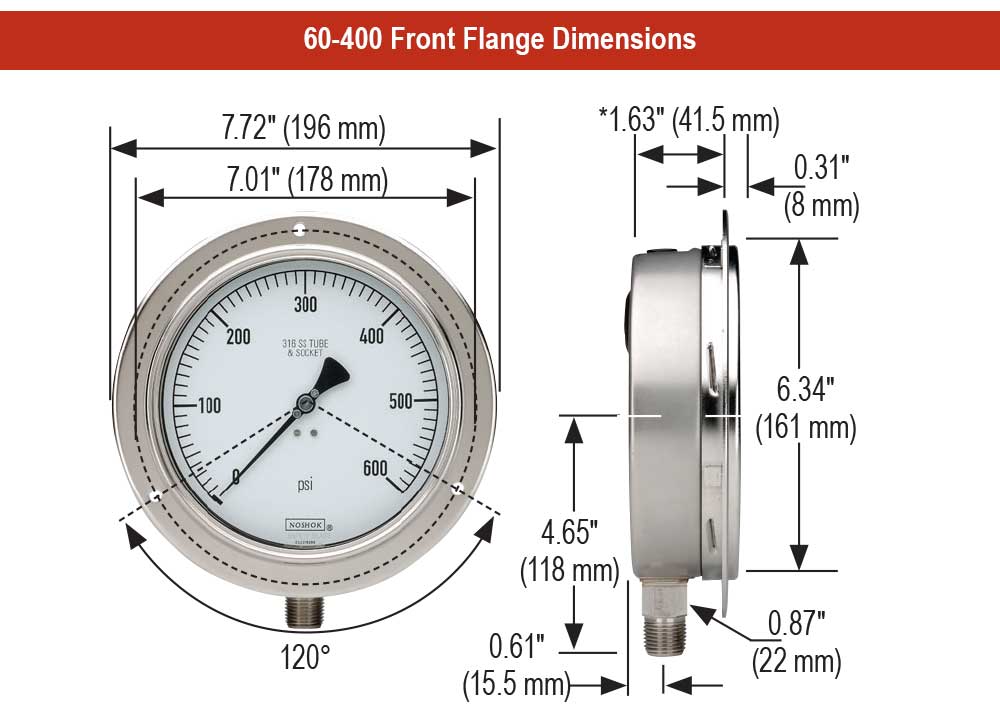

60-400 Front Flange Dimensions
60-400 Rear Flange Dimensions

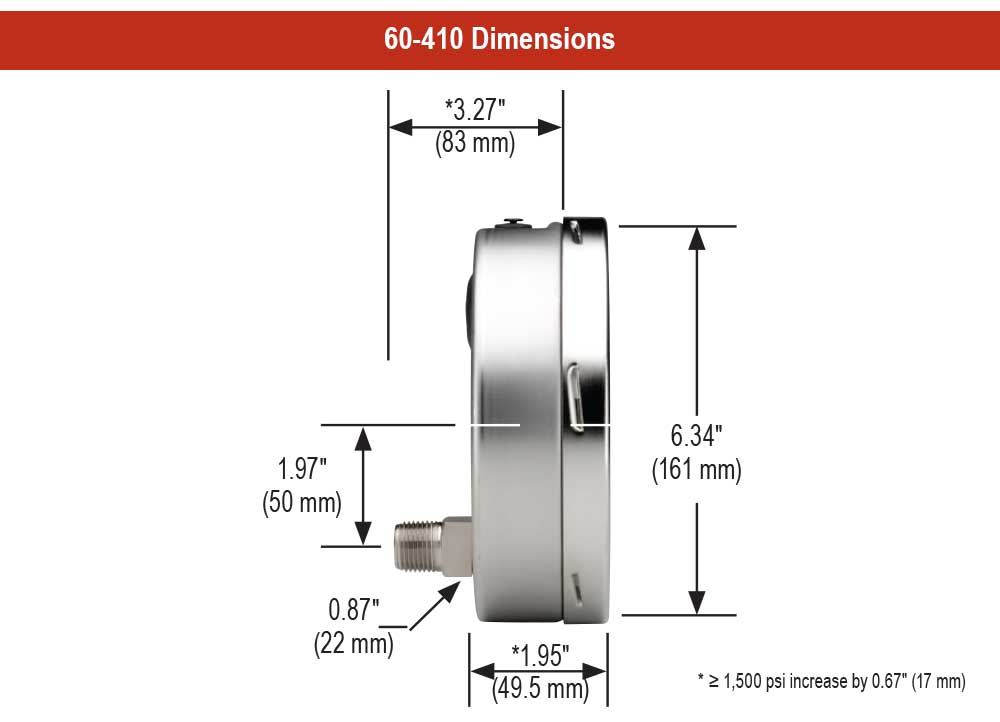

60-410 Dimensions
60-410 Front Flange Dimensions

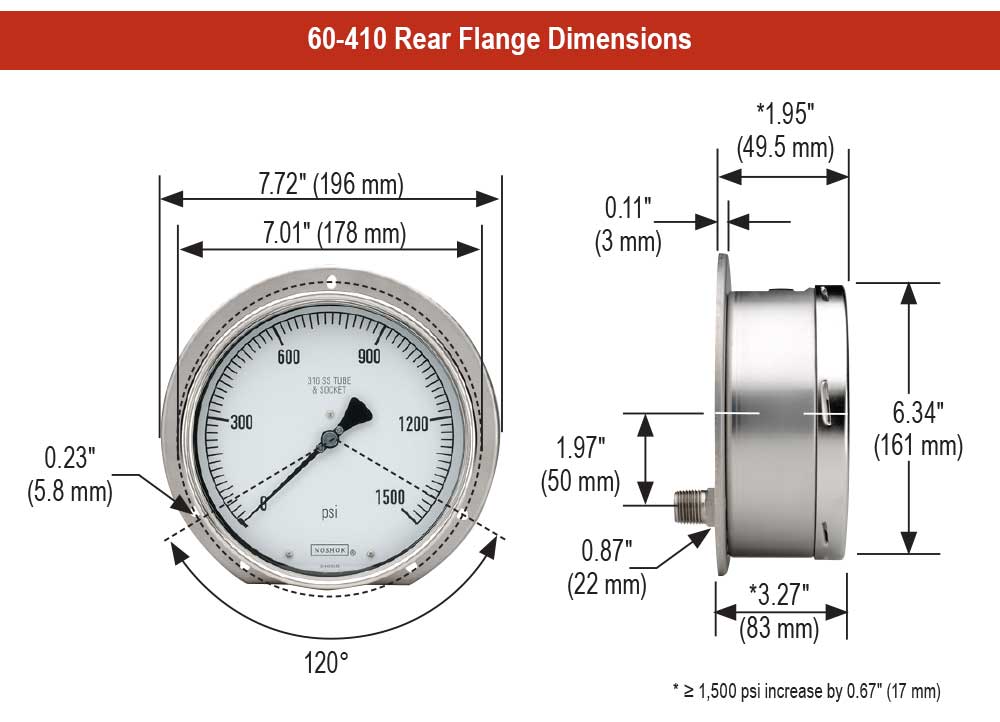

60-410 Rear Flange Dimensions

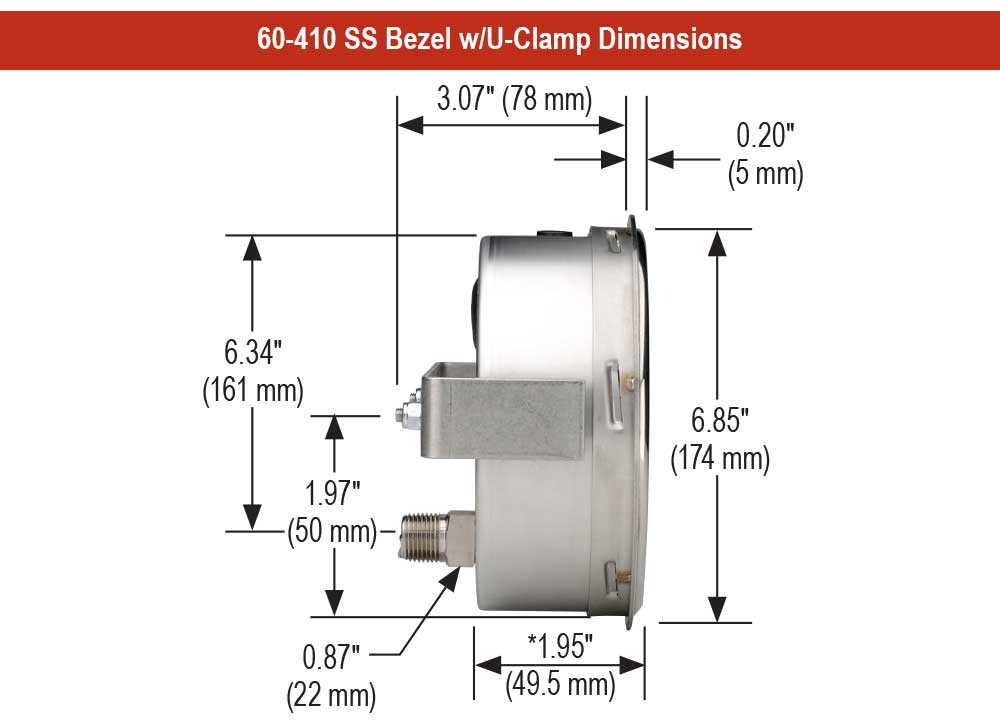

60-410 SS Bezel w/U-Clamp Dimensions
