200 Series Multiport, Hard Seat Needle Valves

REQUEST A QUOTE
Application Brochures
Oil & Gas
  • Multiport design reduces the number of gauge and other instrument connections to permanent piping installations, decreasing possible leak paths
  • Optional bleed plugs further allow pressure to be bled off without disturbing the permanent piping installation
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • 10,000 psi pressure rating @ 200 °F
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
  • All stems are 316 Stainless Steel
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust cap for bonnet and stem (non-packing)

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

ORDERING INFORMATION

SERIES 2 200 Series, hard seat
CONNECTION SIZES 04 1/2" NPT 0604 3/4" NPT male - 1/2" NPT male or female
VALVE TYPES MFC Male-Female, Steel MFS Male-Female, Stainless Steel



ORDERING INFORMATION - Additional Options

PACKINGS * P1 PTFE P2 Graphite
STEM TIPS T1 Non-rotating (316 stainless) T6 Ball (carbide) T8 Ball (Monel)
T5 Ball (440C stainless) T7 Ball (ceramic) T9 Non-rotating regulating (316 Stainless)
O-RINGS ** EM1 EPDM KZ1 FFKM (Kalrez® 3018 or equivalent) NB1 NBR
PANEL MOUNTINGS PM1 Panel mount (1 nut) PM2 Panel mount (2 nuts)
HANDLES HL1 1-13/16" Mini "T" HL4 1-3/8" Phenolic HL5 1-3/4" Phenolic

* If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the "Pressure vs Temperature: Packing Style with Compatible Fluid" chart.
** Other o-ring materials available on request.

NOTE: Plugs and bleed plugs are available and can be ordered separately.

Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are "T" handles (HL2).

The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 204-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests

To meet all of your specific application requirements, the following additional options are available for these needle valves. To order all or any of these options, simply add them to the part number as shown in the diagram below.

NOTE 1: The example shown includes ALL possible additional options. Please include ONLY the options required for your application when building your part number. (EXAMPLE: 204-MFC-P1)

NOTE 2: When a packing option is selected, an o-ring option is NOT available.

If you are viewing on a smaller screen or with screen zoom, please use the horizontal scroll bar at the bottom of this table to see all information.

SPECIFICATIONS
Materials Zinc-nickel plated steel, electropolished 316 Stainless Steel
Connections 1/2" NPT to 3/4" NPT Male-female
Pressure ratings* 10,000 psi @ 200 °F
Orifice size 0.187"
Flow coefficient CV 0.44
Stem seal & type All 316 Stainless Steel stems with FKM o-ring and PTFE back-up ring below the threads, PTFE or Graphite packing optional
Options Panel mountings, o-ring materials, handles, packings, regulating stem and stem tips
Weight Approximately 2.2 lb.

* If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the "Pressure vs Temperature: Packing Style with Compatible Fluid" chart.

All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.

Options & Accessories

  • Packing*
    • PTFE (P1)
    • Graphite (P2)*
    • Non-rotating (316 Stainless Steel) (T1)
    • Ball, 440C Stainless Steel (T5)
    • Ball, carbide (T6)
    • Ball, ceramic (T7)
    • Ball, Monel (T8)
    • Non-rotating regulating, 316 Stainless Steel (T9)
  • O-Rings (Other o-ring materials available on request)
    • EPDM (EM1)
    • FFKM, Kalrez 3018 or equivalent (KZ1)
    • NBR (NB1)
  • Panel Mount
    • 1 nut (PM1)
    • 2 nuts (PM2)
  • Handles
  • Cleaning For Oxygen Service (Stainless Steel Only)

* If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart

Note: The standard o-ring in all the NOSHOK valves is FKM and the standard handles are “T” handles (HL2).The handle material will always match the material of the valve, unless otherwise specified. For example, the “T” handle (HL2) on the 204-MFC will be Steel.

When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.

  • Plug, Steel (PG1-CS1-ZN1)
  • Plug, Stainless Steel (PG1-SS1-EP)
  • Bleed Plug, Steel, 1/2" NPT (BP1-C)
  • Bleed Plug, Stainless Steel, 1/2" NPT (BP1-S)
  • Bleed Plug, Stainless Steel, 1/4" NPT (BP2-S)

Plug Dimensions

Bleed Plug Dimensions

NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.

For example, you can simplify your system with this easy-to-install solution from NOSHOK. Three simple components that require a single threaded connection in your piping system will provide local indication, analog output and block/isolate with bleed function.This product grouping is an ideal solution for a variety of applications including oil and gas, and is available in several high pressure ranges, including 5,000, 10,000 and 15,000 psi. Special design for Shale Gas applications.

This example represents a general solution; however, we offer a diverse range of gauges, transmitters and valves which are available with a variety of connection options and ranges to suit your needs. (Photo shows 40-400 Series Pressure Gauge (Local Indication), 621 Series Pressure Transmitter (Control Output), and 200 Series Multi-Port Valve (Block/Isolate & Bleed).

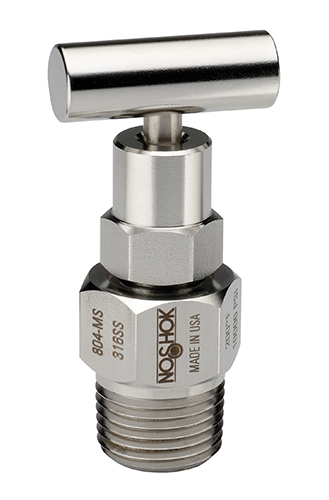

Bleed valves provide a convenient means to relieve process pressures trapped between a shut off valve and the instrument.

View NOSHOK Bleed Valve
